Capacitor AC/DC Withstand Voltage Comprehensive Test Solution

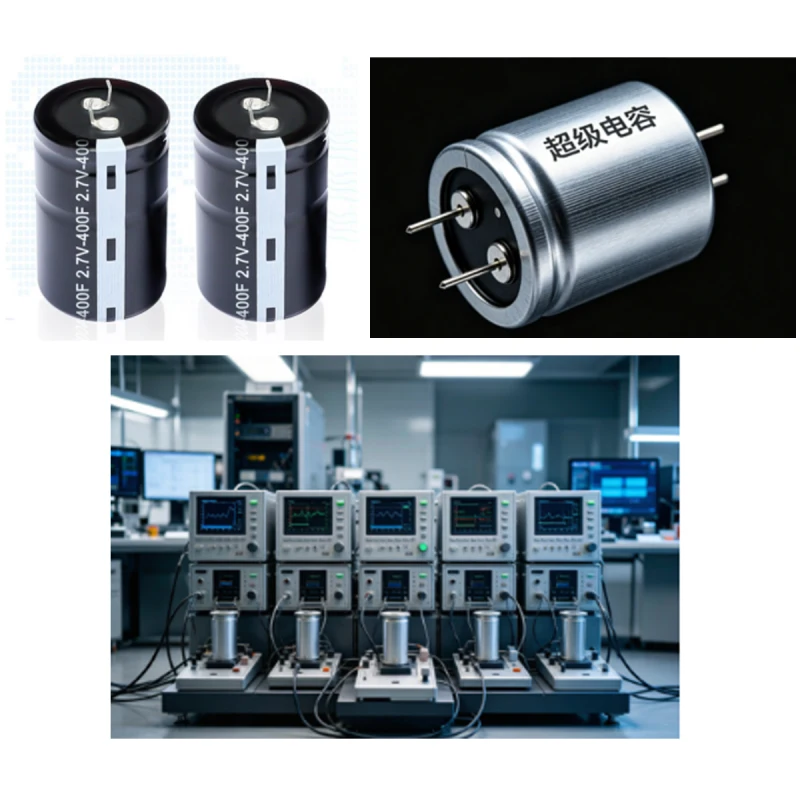

Capacitors are core passive components in electronic equipment and are widely used in new energy charging piles, industrial inverters and smart grid equipment. Such components work year-round in high-voltage, high-humidity or extreme-temperature environments, where dielectric ageing, insulation damage and poor pin soldering easily occur.

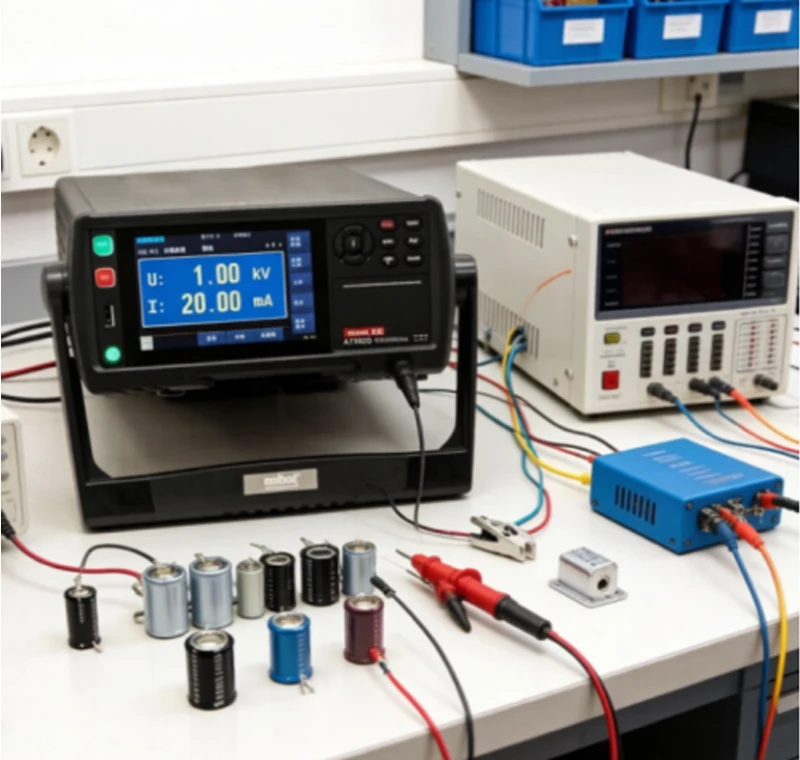

Conventional inspection can only measure capacitance and appearance and cannot evaluate insulation strength or withstand voltage performance, making potential breakdown risks hard to find. Introducing professional ONMEAS AC/DC withstand voltage testers for standardized, all-round testing in capacitor production line quality control, incoming inspection and failure analysis is therefore a key step in ensuring the safe operation of electronic equipment.

1. Test Requirements

Insulation Performance Evaluation

Precisely measure the leakage current and insulation resistance of capacitors at rated and over-voltage conditions, screen out insulation failures caused by dielectric pinholes, delamination or contamination, and ensure no breakdown occurs under surge impact.

Withstand Voltage Strength Verification

Carry out AC withstand voltage tests (simulating the actual working electric field) and DC withstand voltage tests (checking dielectric polarization characteristics) separately to identify insufficient withstand voltage caused by material defects or poor processes and prevent short circuits and fires during operation.

Protection Function Testing

For self-healing capacitors with explosion-proof valves or built-in over-voltage protection, simulate over-voltage and over-current conditions to verify the response threshold and action reliability of the protection mechanism and prevent faults from spreading.

Efficient Batch Testing

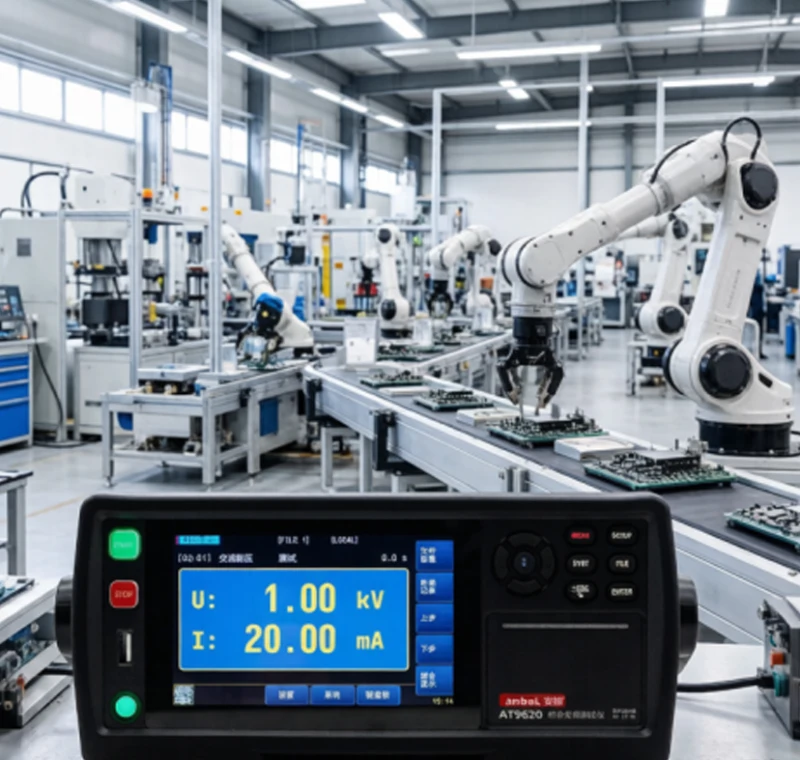

To meet the needs of large-scale production in electronics manufacturing (tens of thousands of pieces per day) and spot checks of spare parts at grid operation centres, an automated, multi-channel parallel test system is required to improve production line yield and inspection efficiency.

2. Equipment Selection and Configuration

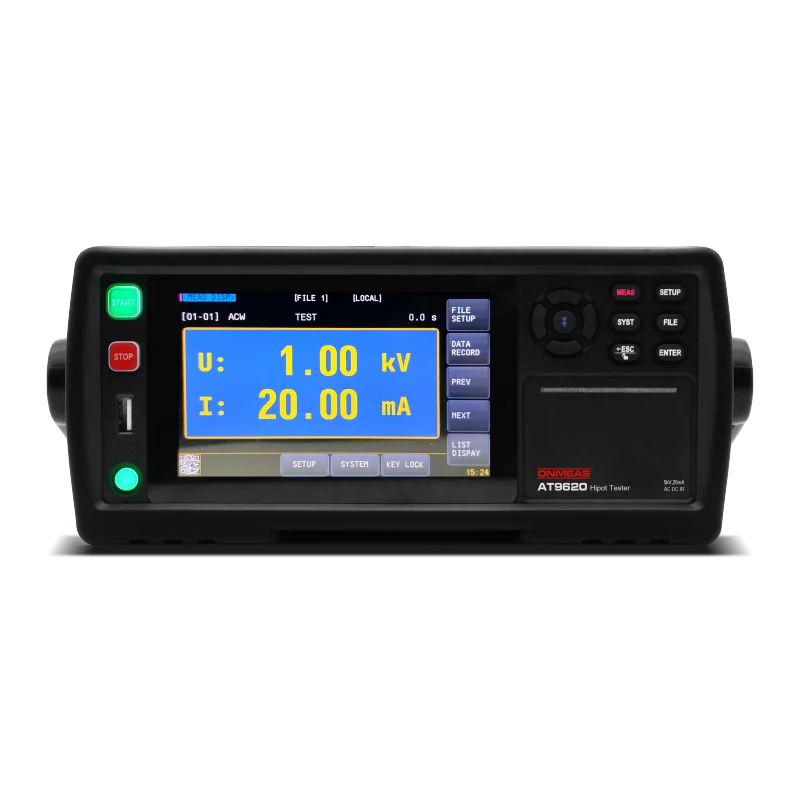

Three-in-One AC/DC Withstand Voltage and Insulation Resistance

It integrates AC 5.000kV/20mA withstand voltage, DC 6.000kV/10mA withstand voltage and DC 1.000kV/50GΩ insulation resistance in one unit. Test programme settings allow sequential multi-item testing: AC withstand voltage, DC withstand voltage and IR insulation can be completed in 4 seconds, far more efficient than traditional separate instruments and well suited to the high-speed flow of capacitor production lines.

High-Precision Waveform and Wide-Range Output

Linear amplifier drive provides low voltage waveform distortion with simple, reliable control; voltage resolution is 10V (AC/DC) and current resolution reaches 0.001mA (AC) / 0.1μA (DC), precisely capturing small insulation drift and early leakage risks in capacitors.

9-Level Arc Detection and Multiple Safety Protections

Built-in 9-level arc detection in both AC and DC modes identifies hidden defects such as partial discharge and creepage breakdown in capacitor dielectrics; the instrument provides triple hardware protection against electric shock, arc detection and short circuits, plus software over-voltage and over-current protection, safeguarding operators and samples in high-voltage testing.

High-Speed Microprocessor and Smart Sorting

With a high-speed microprocessor as the control core, it measures safety parameters in real time and offers upper and lower limit judgement to automatically identify defective products and reduce human misjudgement; a 5-inch true-colour LCD touch screen combines list settings with discharge functions for easy operation.

Multi-Interface Automation Integration

Standard RS232/Handler/USB communication interfaces support the SCPI command set and MODBUS protocol and can connect to PLCs, barcode scanners and host MES systems for fully automated testing and data traceability.
