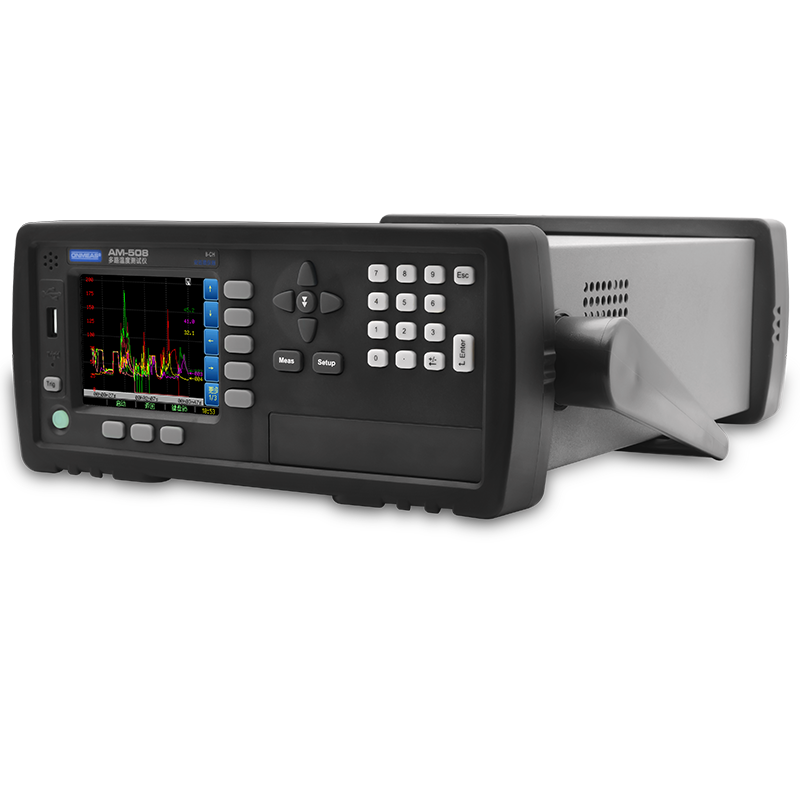

AM508 Multi-Channel Temperature Meter
ACTIVE
RS232USB-232
SCPI
DATA LOGGERUSB-DISK
OVERVIEW
    AM508 multi-channel temperature meter is a new upgraded with ARM micro processor. multi-channel sampling and parallel test, can sampling, alarm and communication transmission to 8 channels simultaneously. compatibility various kinds of temperature sensors, fast response, data stable and with Break even detection function.

    The temperature test resolution 0.1 ℃.

    AM508 support K/N/E/J/T/R//S/B thermocouples. test temperature -1200℃ to 1300℃.

    AM508 with RS-232 & USB interface, data collection,alalysis and printing by connection PLC.

    The instrument is equipped with RS-232 interface and USB interface as standard, and provides free communication. Data collection, analysis and printing can be easily realized through PC software.

    AM508 uses a sturdy and anti-vibration shell, which can work in harsh environments. Fully isolated digital and analog signals, ## (can be live test (isolation voltage 230Vrms, 330VDC)) ##, safe and reliable. AT4508 comes standard with U disk interface and supports real-time data storage.
FEATURES
  • Suitable for multi-point temperature testing by manufacturers and quality inspection departments in home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electricity, LEDs and other industries
SPECIFICATIONS
GraduationThermocouple:J/K/T/E/S/N/B/R
Accuracy0.2%+1℃
Range-200℃~1800℃ (variation depend on graduation)
Resolution0.1℃
Channels8 channels; 16 channels; 24 channels; 32 channels; 128 channels are available
Speedfast: 100ms/channel, medium:500ms/channel, slow: 1s/channel
CorrectionError correction for each channel
Comparatorhigh & low beep function for each channel

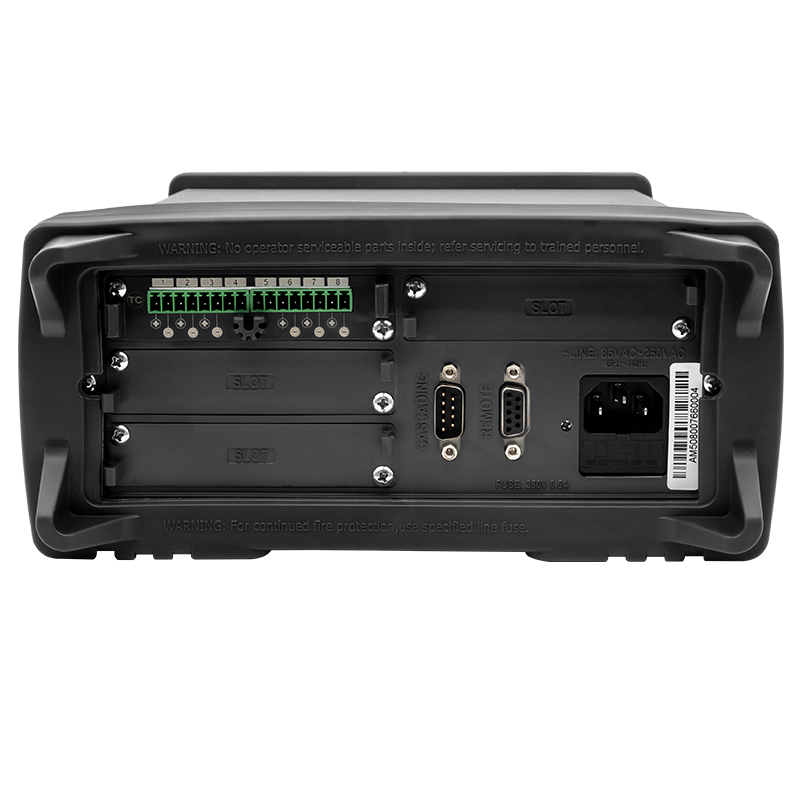

InterfaceRS232C, U-disc, USB
SoftwareATS45 data acquisition software
Cold JunctionAccuracy: 0.5℃

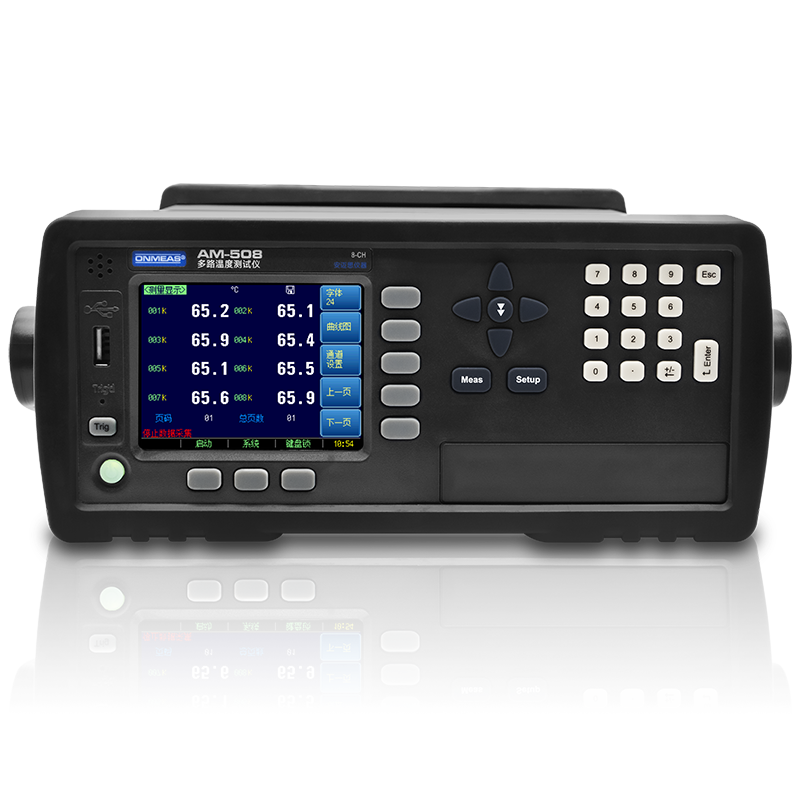

Other FunctionsTFT-LCD True color display, broken thermocouple check function
Power SupplyV: 85VAC～260VAC Fre：50Hz/60Hz Power：10VA
Dimension & Weight216x88x300mm weight：3kg
AccessoriesK thermocouple 8 channels (2 meters/ channel)
APPLICATIONS
    Suitable for multi-point temperature testing by manufacturers and quality inspection departments in home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electricity, LEDs and other industries
DOCUMENTATION
DOCUMENTS
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL103

ATL103

USB通讯线

ATL108

ATL108

RS232通讯电缆

ATN2

ATN2

K

K

K型热电偶

OPTIONS

ATN4508

ATN4508

8路外接模块

SOFTWARE
NONE
