| Graduation | Thermocouple:K/T/J |
| Accuracy | 0.2%+1℃ |
| Range | -200℃~1800℃ (variation depend on graduation) |
| Resolution | 0.1℃ |
| Channels | 8 channels；4 channels |
| Speed | 1s/ channel |
| Correction | Error correction for each channel |
| Comparator | high & low beep function |
| Interface | Mini-USB |
| Software | ATS42 data acquisition software |
| Cold Junction | Accuracy: 0.5℃ |

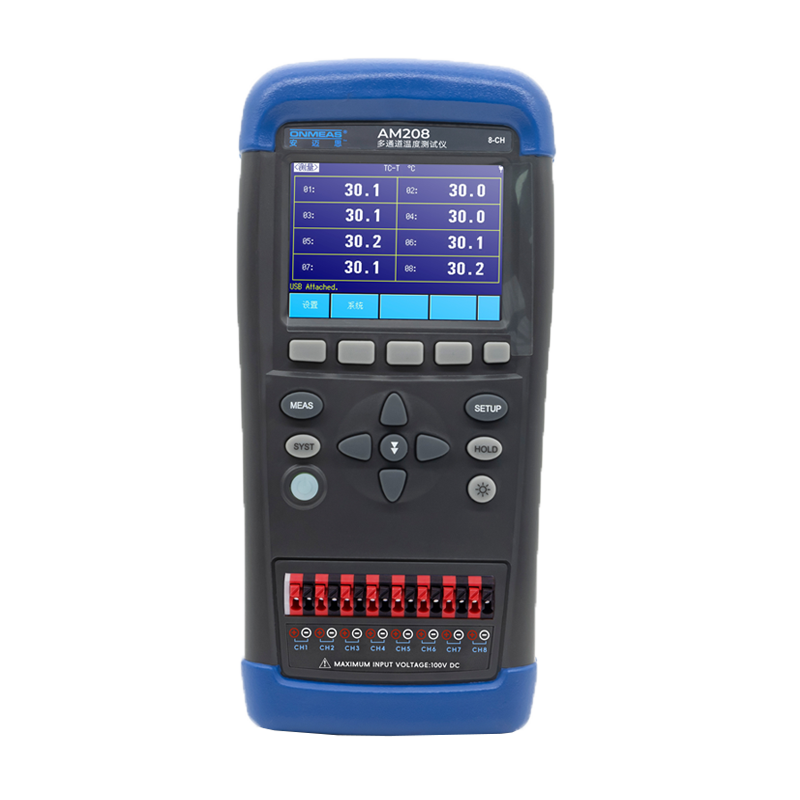

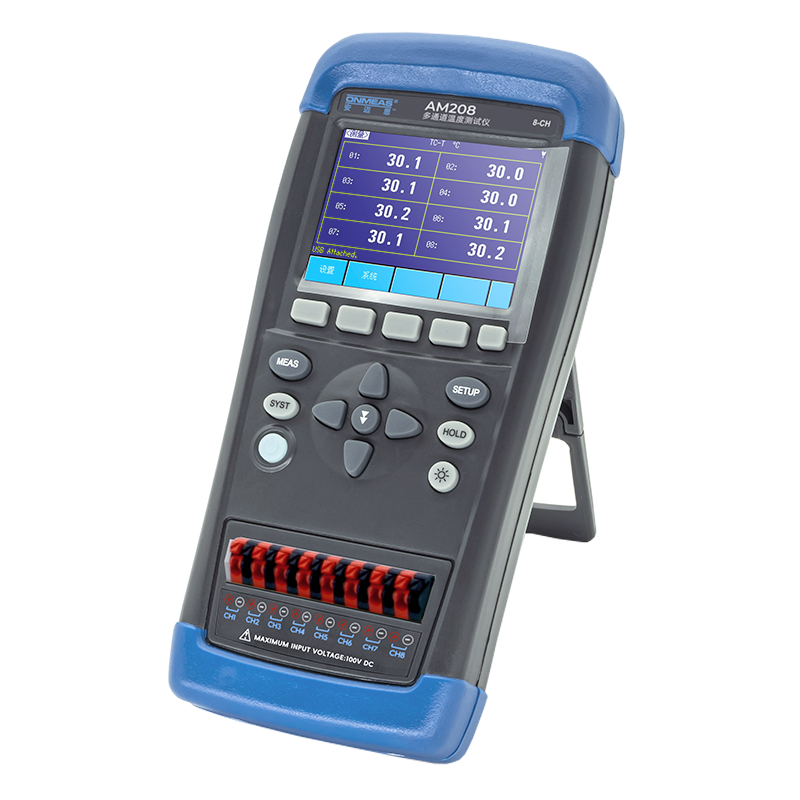

| Other Functions | 2.8 inch color 16M TFT-LCD display, touch screen, USB communication, compatible SCPI order set, Chinese/Englsih Language, adjustable back light, auto power off |
| Power Supply | Input:100-240V~50/60Hz 0.35A output：9V 1A DC |
| Dimension & Weight | 90x190x31mm weight：400g |
| Accessories | K thermocouple 2 channels (2 meters/ channel) ATL909 DC adaptor, ATL805 Li battery, USB communication cable, ATS42 data acquisition software |
