AT2617

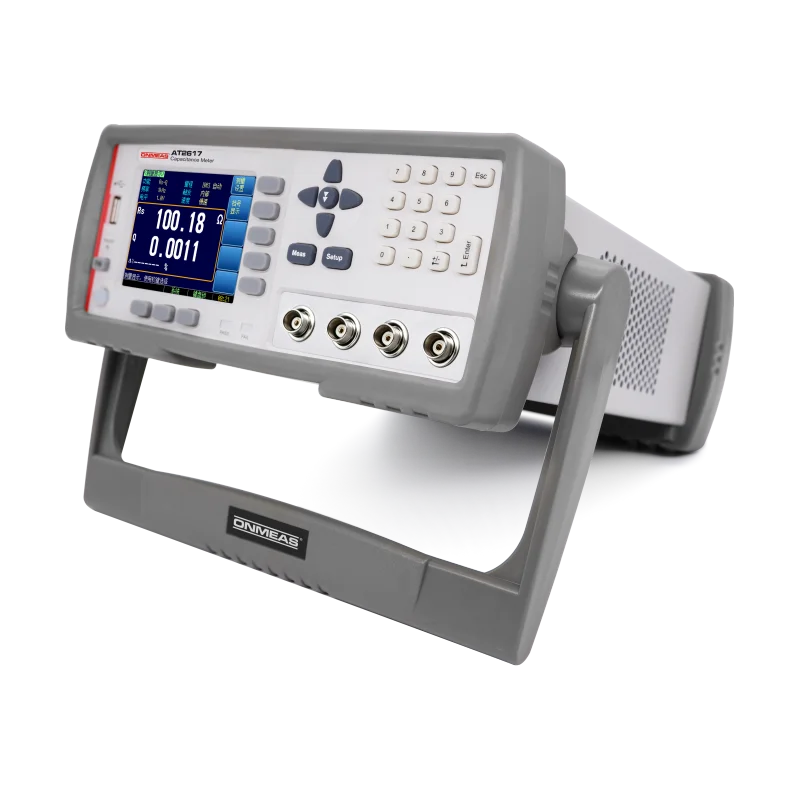

AT2617 Capacitance Tester

The AT261X series is a capacitance tester, a compact benchtop instrument controlled by a high-performance 32-bit ARM microprocessor for fully automatic real-time testing. It offers a selectable test frequency of up to 200kHz (AT2616) and selectable test signal levels of 0.1V, 0.3V, 0.5V, and 1.0Vrms.

The primary and secondary parameters are displayed with 5 digits, showing one of Z, R, A, or A%. With an accuracy of up to 0.1%, this instrument meets the requirements of automated equipment manufacturers, component manufacturers and users, schools, research institutes, and metrology & quality inspection departments for precise testing and batch production.

The instrument features professional sorting functions, with 10 group storage files, programmable 3 bins for PASS, 1 auxiliary bin (secondary parameter FAIL), 1 FAIL bin, and HI/IN/LO bins for primary parameters. It supports percentage sorting or absolute value sorting. Equipped with USB, Handler, and RS-232C interfaces, the improved AT261X design enhances anti-interference and protection circuits, meeting the demanding environments of automated equipment (sorters, aging testers, etc.).

Inquire now Report incorrect product information

Parameter	AT2617
Basic Test Parameters
Measurement Parameters	Cs-Rs, Cs-D, Cp-Rp, Cp-D, Rs-Q, Rp-Q, Z-D, Z-Q
Basic Accuracy	0.1%
Test Frequency	100Hz, 120Hz, 1kHz, 10kHz, 100kHz (5 points, 0.01%)
Test Range	Auto, Manual, and Nominal, 9 ranges
Test Speed	30 readings/s, 10 readings/s, 3 readings/s
Output Impedance	30Ω, 100Ω
Signal Level	ACV: 10.00mV~2.00V, Accuracy: 10%, CV Mode Accuracy: 6%
Monitor Parameters	Z, R, Δ, Δ%
Readings	All parameters 5 digits full: 99999
Display Range	L	-
C	0.0001pF – 9.9999mF
R, X, Z	0.0001Ω - 99.999MΩ
D	0.0001 – 9.9999
Q	0.0001 – 9999.9
Δ%	-999.999% - 999.999%
θ(deg)	-
θ(rad)	-
DCR	-
Equivalence & Bias
Equivalent Mode	Series and parallel equivalent
DC Bias	-
Measurement Functions
Average Count	1~256
Trigger Mode	Internal, Manual, External, and Remote
Trigger Delay	0.01ms~60s
Comparator	PASS bin (BIN1-BIN3): Both primary and secondary parameters pass; AUX bin: Primary parameter passes but secondary parameter fails; FAIL bin (OUT): Primary parameter fails. HI/IN/LO: Primary parameter high/pass/low
List Sweep	-
Comparison Mode	Sequential/Absolute Deviation/Relative Deviation
Calibration	Open circuit zero, short circuit zero (sweep frequency and spot frequency)
File	Internal storage: 10 files; External USB storage: 10 files
Data Logging	9999 groups of files (.csv)
Beeper Function	Off/Pass/Fail
Other Functions	-
General Parameters
Dimensions	Instrument Dimensions	264(W)x107(H)x349.5(D)mm
Package Dimensions	-
Weight	Net Weight	3kg
Gross Weight	-
Power Requirements	90V-260VAC, 50Hz to 60Hz

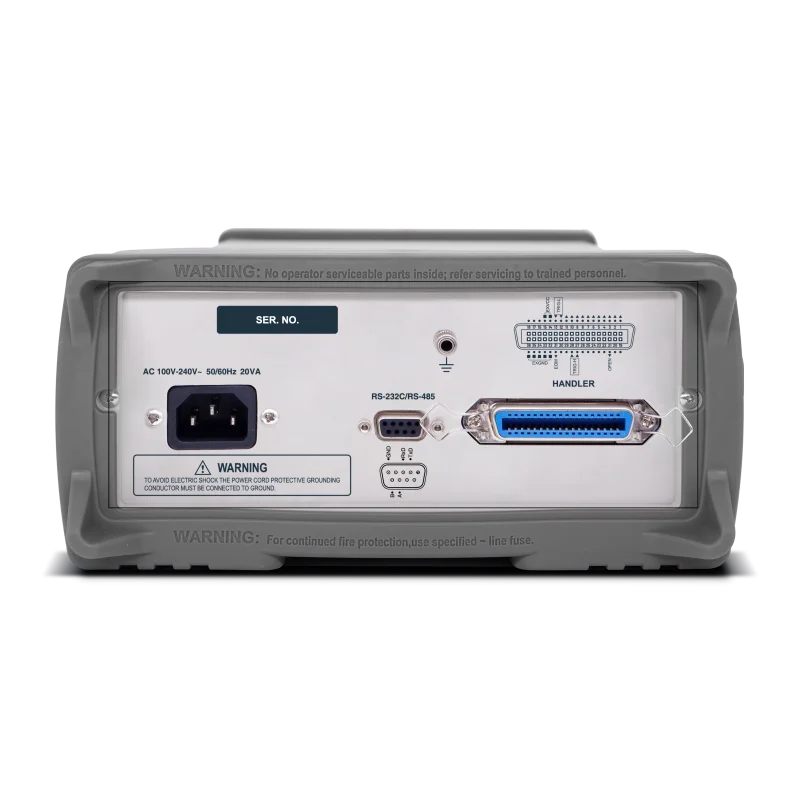

Interface	Handler interface/RS232 interface (Standard); RS485 interface/GPIB interface (Optional)
Communication Protocol	SCPI/Modbus
Other	-

Parameter

AT2617

Basic Test Parameters

Measurement Parameters

Cs-Rs, Cs-D, Cp-Rp, Cp-D, Rs-Q, Rp-Q, Z-D, Z-Q

Basic Accuracy

0.1%

Test Frequency

100Hz, 120Hz, 1kHz, 10kHz, 100kHz (5 points, 0.01%)

Test Range

Auto, Manual, and Nominal, 9 ranges

Test Speed

30 readings/s, 10 readings/s, 3 readings/s

Output Impedance

30Ω, 100Ω

Signal Level

ACV: 10.00mV~2.00V, Accuracy: 10%, CV Mode Accuracy: 6%

Monitor Parameters

Z, R, Δ, Δ%

Readings

All parameters 5 digits full: 99999

Display Range

0.0001pF – 9.9999mF

R, X, Z

0.0001Ω - 99.999MΩ

0.0001 – 9.9999

0.0001 – 9999.9

Δ%

-999.999% - 999.999%

θ(deg)

θ(rad)

DCR

Equivalence & Bias

Equivalent Mode

Series and parallel equivalent

DC Bias

Measurement Functions

Average Count

1~256

Trigger Mode

Internal, Manual, External, and Remote

Trigger Delay

0.01ms~60s

Comparator

PASS bin (BIN1-BIN3): Both primary and secondary parameters pass; AUX bin: Primary parameter passes but secondary parameter fails; FAIL bin (OUT): Primary parameter fails. HI/IN/LO: Primary parameter high/pass/low

List Sweep

Comparison Mode

Sequential/Absolute Deviation/Relative Deviation

Calibration

Open circuit zero, short circuit zero (sweep frequency and spot frequency)

File

Internal storage: 10 files; External USB storage: 10 files

Data Logging

9999 groups of files (.csv)

Beeper Function

Off/Pass/Fail

Other Functions

General Parameters

Dimensions

Instrument Dimensions

264(W)x107(H)x349.5(D)mm

Package Dimensions

Weight

Net Weight

3kg

Gross Weight

Power Requirements

90V-260VAC, 50Hz to 60Hz

Interface

Handler interface/RS232 interface (Standard); RS485 interface/GPIB interface (Optional)

Communication Protocol

SCPI/Modbus

Other
