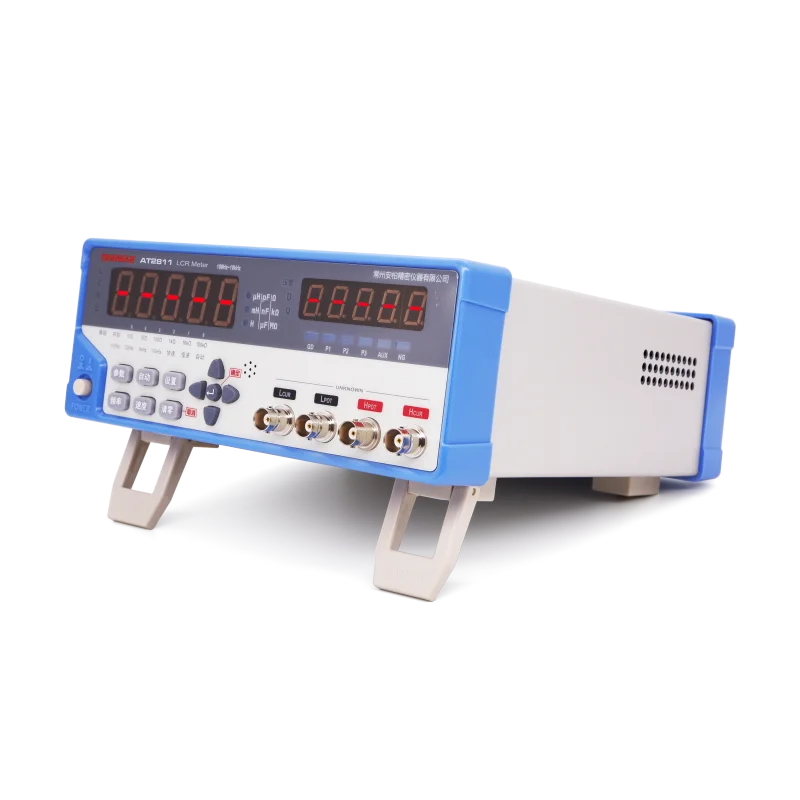

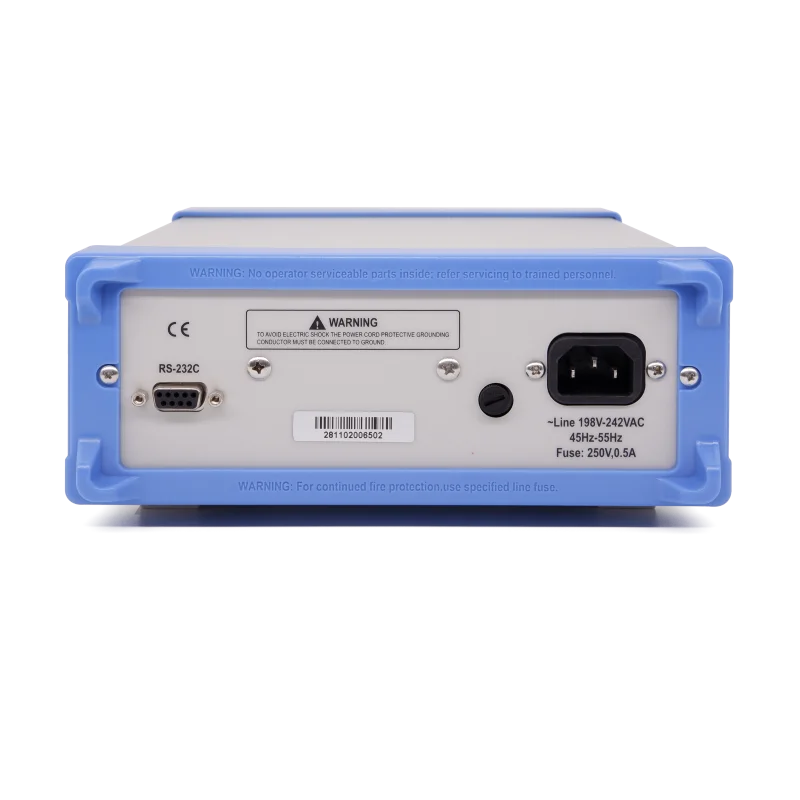

AT2811 LCR Digital Bridge

The AT2811 is a general-purpose LCR digital bridge, an economical micro benchtop instrument. Test frequencies: 100Hz, 120Hz, 1kHz and 10kHz. Test levels: 0.1V, 0.3V and 1V. Source impedance: 30Ω or 100Ω.

The instrument can automatically measure inductance L, capacitance C, resistance R, impedance Z, quality factor Q, and dissipation factor D.

The AT2811 offers excellent value with a user-friendly interface, making it ideal for component manufacturers and educational institutions for routine measurements, as well as for batch production on manufacturing lines.

The instrument features built-in sorting capability with five-bin sorting display and audible sorting alerts.

Inquire now Report incorrect product information

AT2811

AT2811 LCR Digital Bridge

CategoryBenchtop LCR Digital Bridge

The instrument can automatically measure inductance L, capacitance C, resistance R, impedance Z, quality factor Q, and dissipation factor D.

The instrument features built-in sorting capability with five-bin sorting display and audible sorting alerts.

Specifications

Parameter		AT2811
Basic Test Parameters
Measurement Parameters		L, C, R, \|Z\|, D, Q
Basic Accuracy		0.25%
Test Frequency		100Hz, 120Hz, 1kHz, 10kHz
Test Range		Auto, Manual, 6 ranges
Test Speed		15 readings/s, 5 readings/s, 3 readings/s
Output Impedance		30Ω and 100Ω
Signal Level		0.1Vrms, 0.3Vrms and 1Vrms
Monitor Parameters		-
Readings		All parameters 6 digits: 999999
Display Range	L	0.01μH - 9999H
	C	0.01pF - 9999μF
	R, X, Z	0.0001Ω - 99.99MΩ
	D	0.0001 - 9.9999
	Q	0.0001 - 999.9
	Δ%	-
	θ(deg)	-
	θ(rad)	-
	DCR	-
Equivalence & Bias
Equivalent Mode		Series and Parallel
DC Bias		-
Measurement Functions
Average Count		-
Trigger Mode		6 ranges, Auto and Manual
Trigger Delay		-
Comparator		5-bin sorting: P1/P2/P3/AUX/NG
List Sweep		-
Comparison Mode		SEQ/ABS/PER
Calibration		Short circuit zero, open circuit zero, frequency sweep zero within full range
File		-
Data Logging		-
Beeper Function		Off/P1/P2/P3/AUX/NG
Other Functions		Auto LCZ
General Parameters
Dimensions	Instrument Dimensions	264(W)×107(H)×350(D)mm
Dimensions	Package Dimensions	-
Weight	Net Weight	4kg
Weight	Gross Weight	-
Power Requirements		AC 198V-240V, 50Hz-60Hz, 15W MAX
Interface		-
Communication Protocol		-
Other		Auto LCR parameter selection, 0.8-inch bright LED display

AT2811 LCR Digital Bridge

AT2811 LCR Digital Bridge

Specifications

Related Attachments

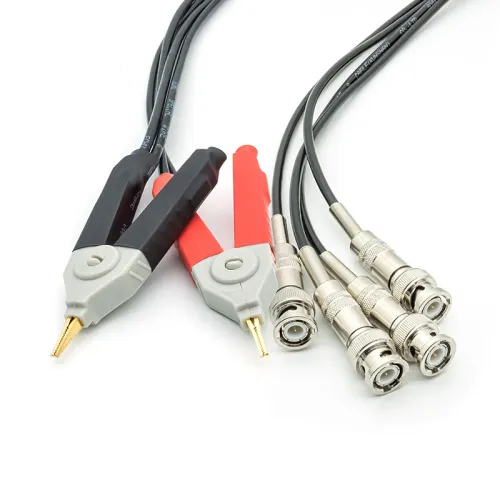

ATL501 Kelvin Test Clip
