AT3310
Digital Power Meter
Home
Product Categories
Safety Analyzer
AC/DC Hipot & Insulation Resistance Tester
AT3310
AT3310(英)正

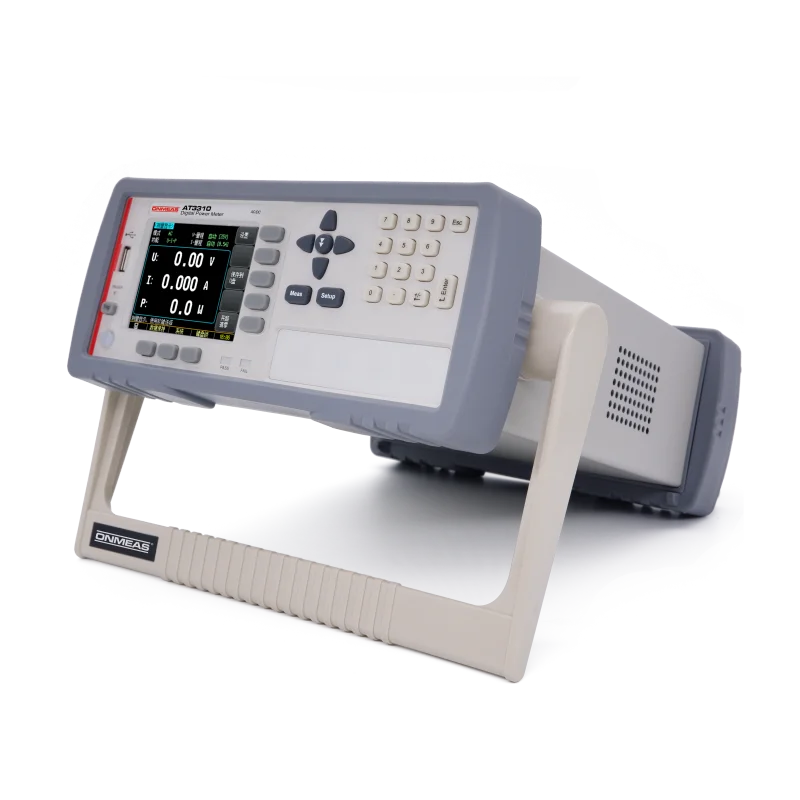

AT3310(英)侧

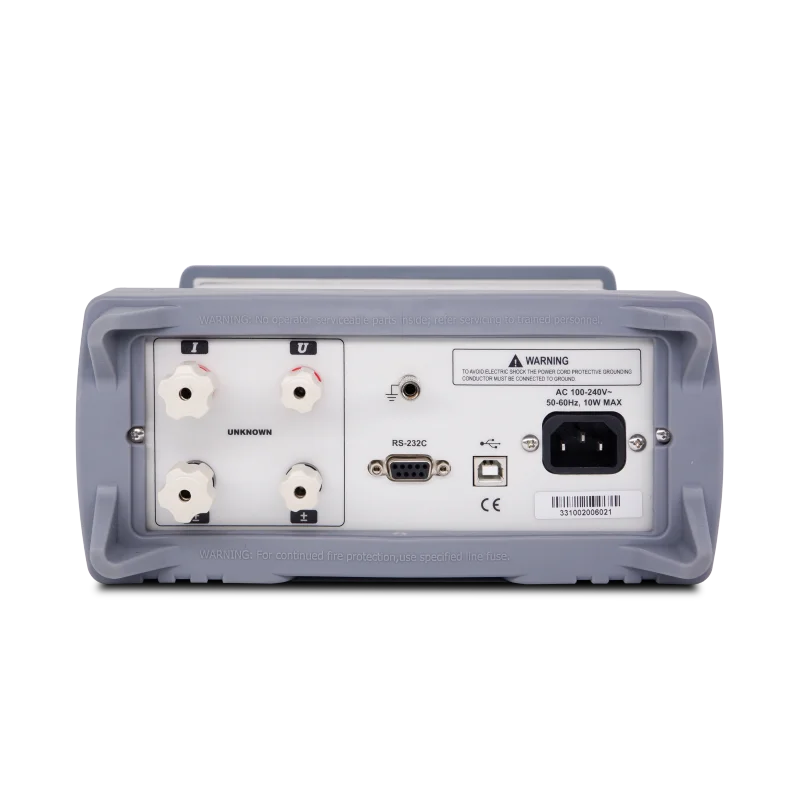

AT3310背面
AT3310

Digital Power Meter

CategoryAC/DC Hipot & Insulation Resistance Tester

The AT3310 Digital Power Meter features high-performance ARM microprocessor control with TFT color LCD display.


It can measure AC, DC, and AC/DC signals, and includes current and power upper/lower limit setting, judgment, and alarm functions. The simple front panel design allows quick access to required measurement functions, with test parameters displayed on the LCD. The combination of multiple functions brings greater convenience to testing.


The instrument is equipped with RS-232C and USB-232 interfaces for effective remote control and data acquisition and analysis. The AT3310 Digital Power Meter is suitable for home appliance testing, motor and power tool testing, generator set testing, power supply products, and energy-saving industries.

Inquire nowReport incorrect product information

Specifications

ParameterAT3310
Input Characteristics
InputSingle-phase 2-wire
Measurement ModeAC/DC/AC+DC
Input VoltageAC(AC) 1.0V ~ 400V
DC(DC) 1.0V ~ 600V
Input Current10mA ~ 20A
Voltage Measurement
Voltage Range35V, 75V, 150V, 300V
Voltage Resolution0.01V for 35V range, 0.1V for other ranges
Current Measurement
Current Range0.5A, 2A, 8A, 20A
Current Resolution1mA
Range SwitchingAuto / Manual
Power Measurement
Measurement ItemsVoltage, Current, Active Power, Power Factor, Frequency
Power Factor-1.000 ~ +1.000
Frequency Characteristics
Frequency RangeDC / AC: 45Hz ~ 130Hz
Bandwidth5KHz
Accuracy Specifications
Voltage, Current & Active Power Accuracy±(0.4% Reading + 0.1% Range +1 digit)
Power Factor Accuracy±(0.004 + 0.001/Reading +1 digit)
Frequency Accuracy±(0.1% Reading +1 digit)
Functional Features
Pass/Fail Limit JudgmentCurrent/Power upper/lower limit setting/judgment and alarm function
USB Data LoggingYes, automatic data storage when USB disk is inserted
Interface & Display
InterfaceRS-232 communication interface, USB-232 interface
Display3.5-inch TFT color LCD / Three values displayed simultaneously
Fuse250V 1A slow-blow
AccessoriesPower cord
