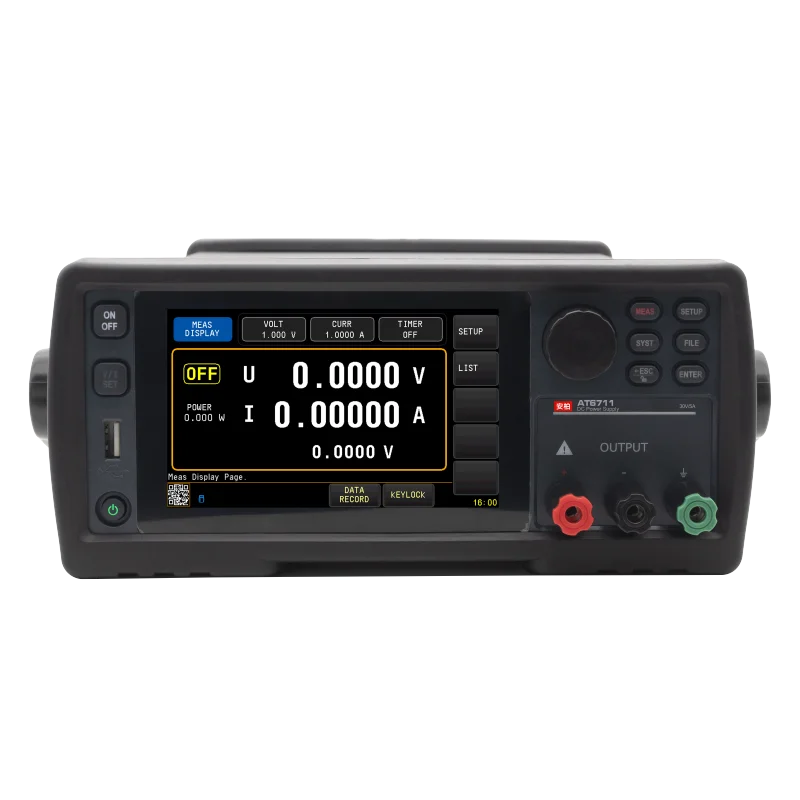

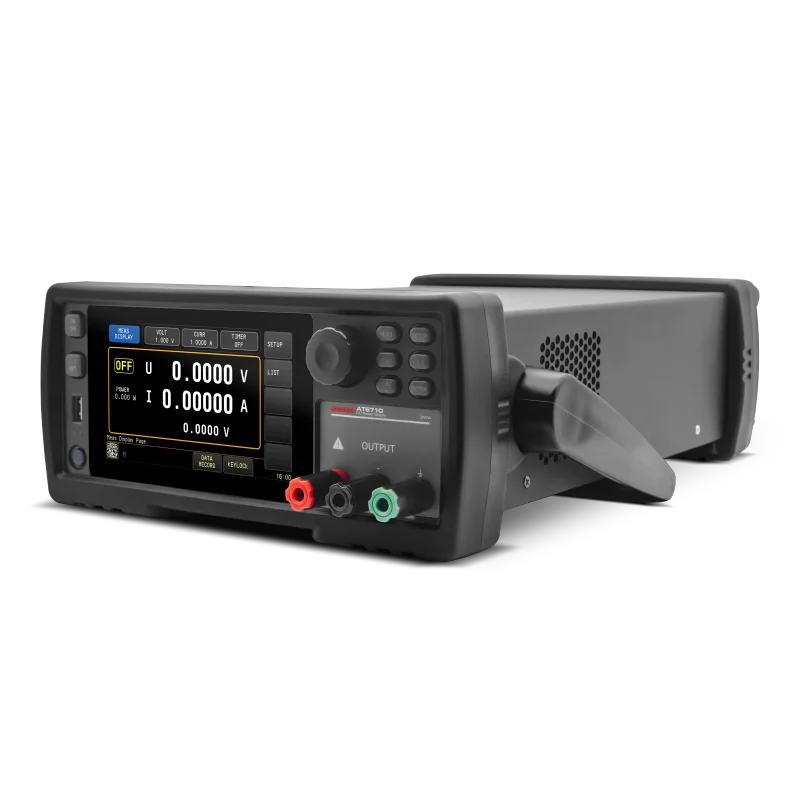

The AT6710 programmable DC power supply features fast voltage rise speed with high accuracy and resolution. It has remote sensing capability to compensate for voltage drops across leads between the power supply and the device under test. The front panel supports LIST programming, and also includes voltmeter and ohmmeter functions.
| Parameter | AT6710 | |
|---|---|---|
| Rated Values | ||
| Voltage | 0-32V (continuously adjustable) | |
| Current | 0-3A (continuously adjustable) | |
| Power | 96W | |
| Load Regulation | ||
| Voltage | ≤0.01%+2mV | |
| Current | ≤0.05%+0.1mA | |
| Line Regulation | ||
| Voltage | ≤0.01%+1mV | |
| Current | ≤0.05%+1mA | |
| Setting Resolution | ||
| Voltage | 1mV | |
| Current | 0.1mA | |
| Readback Resolution | ||
| Voltage | 0.1mV | |
| Current | 0.01mA | |
| Setting Accuracy | ||
| Voltage | ≤±0.03%+3mV | |
| Current | ≤±0.05%+2mA | |
| Readback Accuracy | ||
| Voltage | ≤±0.02%+3mV | |
| Current | ≤±0.05%+2mA | |
| Ripple and Noise | ||
| Voltage | Vrms | ≤1mV Vrms |
| Vpp | ≤3mV Vpp | |
| Current | ≤3mA rms | |
| Over Voltage Protection | ||
| Range | 1-31V | |
| Accuracy | ±(set value ×0.5%+0.5V) | |
| Response Time | ≤10mS | |
| DVM | ||
| Display Accuracy | ≤150mS | |
| Display Resolution | ≤150mS | |
| General Parameters | ||
| Dimensions | Instrument Dimensions | 264 (W) x 107 (H) x 385 (D) mm |
| Package Dimensions | - | |
| Weight | Net Weight | 10 kg |
| Gross Weight | - | |
| Power Requirements | 100V-120VAC or 200V-240VAC | |

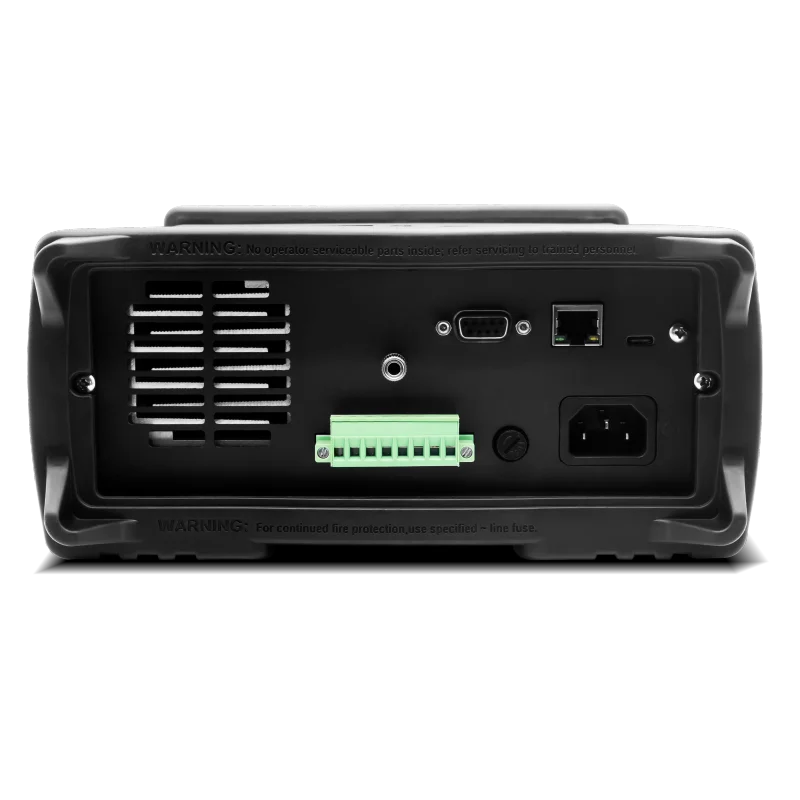

| Interface | RS232/RS485/LAN/Type-C | |
| Communication Protocol | SCPI and Modbus (RTU) | |
| Others | 5" TFT-LCD true color display, touchscreen; ATL509 test cable; power cord | |
