AT6820
Insulation Resistance Tester
Home
Product Categories
Leakage Current Tester
AT6820
AT6820(英)正

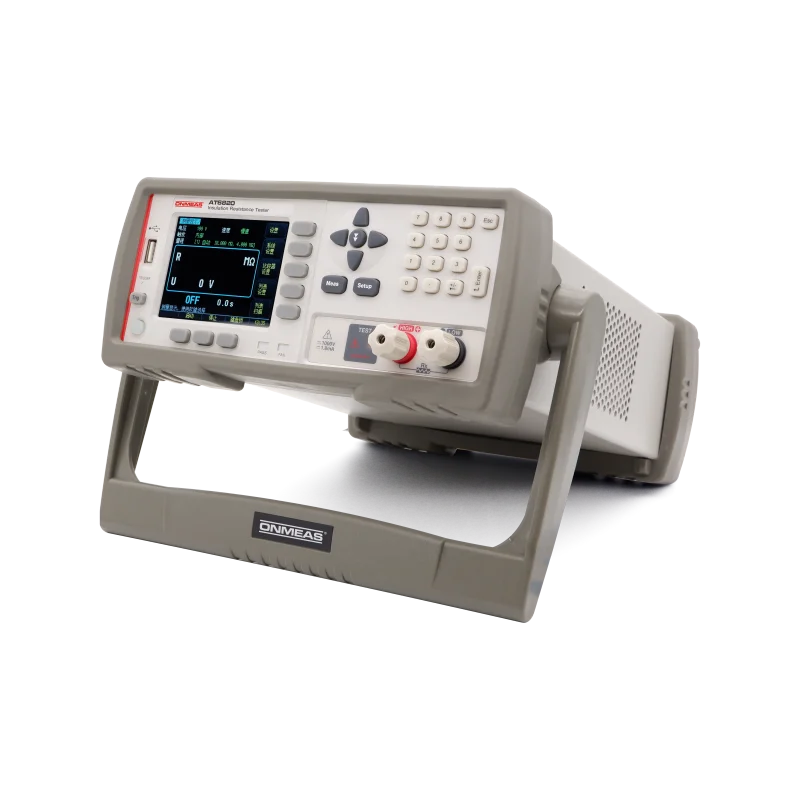

AT6820(英)侧

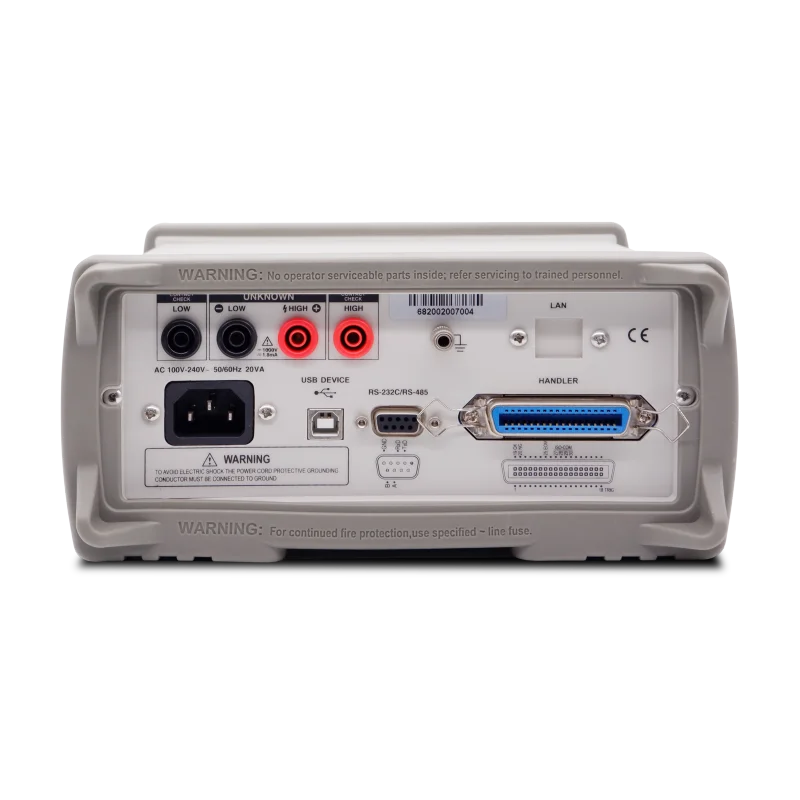

AT6820背面
AT6820

Insulation Resistance Tester

CategoryLeakage Current Tester

The AT6820 insulation resistance tester is a compact benchtop instrument controlled by a high-performance ARM microprocessor, featuring fully automatic real-time detection. It is equipped with a full-color LCD display and a full numeric keypad, combined with the Onmeas instrument operating system, providing clearer display and more convenient operation.


The instrument features a built-in 1V-1000V voltage source with 1V resolution that can be programmed freely. It offers 2% insulation resistance accuracy with a measurement range up to 10GΩ, 9999 reading capacity, and a measurement speed of up to 30 readings per second.

Inquire nowReport incorrect product information

Specifications

ParameterAT6820
Leakage Current & Insulation Resistance Measurement
Number of ChannelsSingle Channel
Measurement ParametersInsulation Resistance
Output VoltageDigitally controlled 10V-1000VDC
Basic Accuracy2%
Test Range0.000MΩ-1TΩ (≤500V: 400GΩ, >500V: 1TΩ)
Reading9999
RangeAuto, Manual, and Nominal
Test SpeedAuto Range ModePoor Contact OffSlow: 2/s, Medium: 13/s, Fast: 18/s
Poor Contact OnSlow: 1.9/s, Medium: 11/s, Fast: 15/s
Manual Range ModePoor Contact OffSlow: 2.2/s, Medium: 18/s, Fast: 29/s
Poor Contact OnSlow: 2/s, Medium: 15/s, Fast: 22/s
CalibrationFull-range open circuit zeroing
Display ResultsDirect reading, current, resistance, peak value, and sorting results
Charging Timer100ms-99s (independently set)
Charging Current-
ComparatorOK: Pass, NG LO: Under limit, NG HI: Over limit
General Parameters
DimensionsInstrument Dimensions264 (W) x 107 (H) x 320 (D) mm
Package Dimensions-
WeightNet Weight5 kg
Gross Weight-
Power RequirementsAC 220V ±10%, 50Hz
InterfaceHandler interface, RS232, USB, RS485
Communication ProtocolSCPI/ModBus (RTU)
Others3.5" HD LCD display; Accessories: ATL507 3-terminal test clip, ATL108 RS232 communication cable
