AT827

Handheld LCR Digital Bridge

CategoryHandheld LCR Digital Bridge SeriesAT828 Series

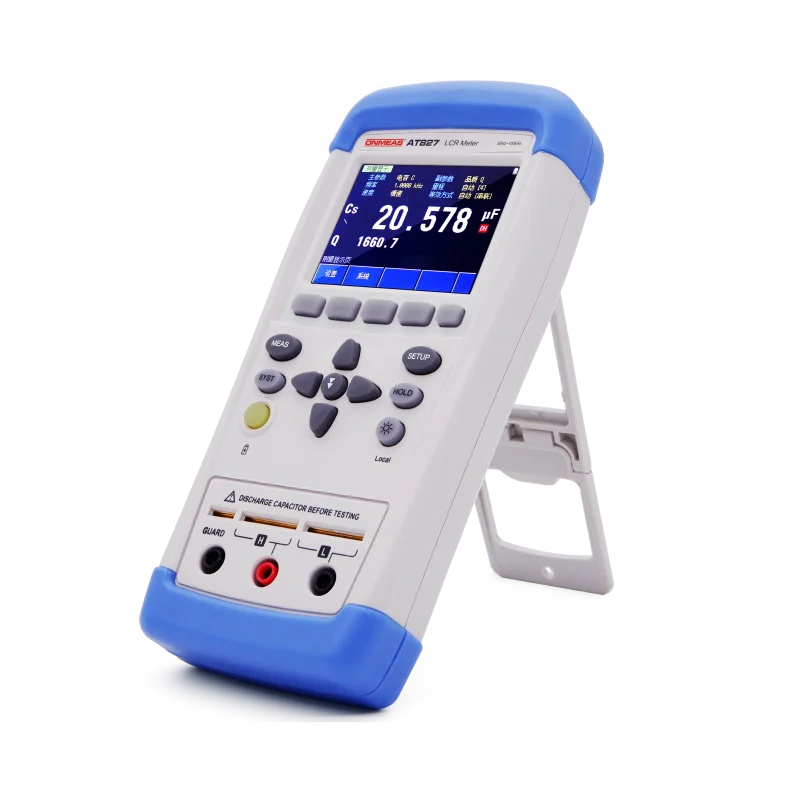

The AT827 Digital Bridge is a handheld precision testing instrument with fully automatic real-time measurement, powered by a high-performance microprocessor. It features a true-color TFT-LCD display with keyboard and touchscreen operation, delivering high-precision measurement and ease of use for a completely new testing experience.

The instrument provides test frequencies up to 10kHz with signal levels of 0.3/0.7/1.0Vrms. It automatically measures inductance (L), capacitance (C), resistance (R), impedance (Z), quality factor (Q), dissipation factor (D), and phase, with simultaneous DCR measurement capability.

With 50,000-count display for primary and secondary parameters and 0.2% accuracy, this instrument meets the precision testing requirements of component manufacturers, universities, research institutions, and metrology/quality inspection departments, while also satisfying mass production demands.

The instrument provides tolerance mode sorting with 1 set of primary parameter percentage sorting.

All models come standard with USB-HID and USB-VCOM interfaces. The computer remote control commands are SCPI compatible (Standard Command for Programmable Instruments), allowing users to develop their own software for efficient remote control and data acquisition.

Inquire now Report incorrect product information

Parameter	AT827
Basic Test Parameters
Measurement Parameters	C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd
Basic Accuracy	0.2%
Test Frequency	50Hz, 100Hz, 120Hz, 1kHz, 2kHz, 10kHz
Test Range	Auto and Manual
Test Speed	Slow: 2.5/sec, Fast: 10/sec
Output Impedance	100Ω
Signal Level	0.3V, 0.7V, and 1.0Vrms, Accuracy: 10%
Monitor Parameters	-
Readings	Primary: 50,000; Secondary: 50,000
Display Range	L	0.01μH to 9999H
C	0.01pF to 9999μF
R, X, Z	0.0001Ω to 99.99MΩ
D	0.0001 to 9.999
Q	0.0001 to 999.9
Δ%	-
θ(deg)	-
θ(rad)	-
DCR	-
Equivalence & Bias
Equivalent Mode	Series, Parallel
DC Bias	-
Measurement Functions
Average Count	-
Trigger Mode	Internal
Trigger Delay	-
Comparator	-
List Sweep	-
Comparison Mode	SEQ/ABS/PER
Calibration	Open-circuit and Short-circuit Calibration
File	USB Storage
Data Logging	-
Beeper Function	-
Other Functions	Touchscreen, Chinese/English menu, 4-level backlight adjustment, Auto power off
General Parameters
Dimensions	Instrument Dimensions	90(W) × 195(H) × 35.5(D) mm
Package Dimensions	-
Weight	Net Weight	400 g
Gross Weight	-
Power Requirements	Power Adapter/Charger: Input 85-240V AC, 50/60Hz 0.35A; Output 9V 1A DC
Interface	USB-HID Communication, USB Type-C
Communication Protocol	SCPI
Other	Touchscreen, Chinese/English menu, 4-level backlight adjustment, Auto power off

Parameter

AT827

Basic Test Parameters

Measurement Parameters

C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd

Basic Accuracy

0.2%

Test Frequency

50Hz, 100Hz, 120Hz, 1kHz, 2kHz, 10kHz

Test Range

Auto and Manual

Test Speed

Slow: 2.5/sec, Fast: 10/sec

Output Impedance

100Ω

Signal Level

0.3V, 0.7V, and 1.0Vrms, Accuracy: 10%

Monitor Parameters

Readings

Primary: 50,000; Secondary: 50,000

Display Range

0.01μH to 9999H

0.01pF to 9999μF

R, X, Z

0.0001Ω to 99.99MΩ

0.0001 to 9.999

0.0001 to 999.9

Δ%

θ(deg)

θ(rad)

DCR

Equivalence & Bias

Equivalent Mode

Series, Parallel

DC Bias

Measurement Functions

Average Count

Trigger Mode

Internal

Trigger Delay

Comparator

List Sweep

Comparison Mode

SEQ/ABS/PER

Calibration

Open-circuit and Short-circuit Calibration

File

USB Storage

Data Logging

Beeper Function

Other Functions

Touchscreen, Chinese/English menu, 4-level backlight adjustment, Auto power off

General Parameters

Dimensions

Instrument Dimensions

90(W) × 195(H) × 35.5(D) mm

Package Dimensions

Weight

Net Weight

400 g

Gross Weight

Power Requirements

Power Adapter/Charger: Input 85-240V AC, 50/60Hz 0.35A; Output 9V 1A DC

Interface

USB-HID Communication, USB Type-C

Communication Protocol

SCPI

Other

Touchscreen, Chinese/English menu, 4-level backlight adjustment, Auto power off
