AT851
Battery Life Tester
Home
Product Categories
Battery Tester
Battery Internal Resistance Tester
AT851
AT851正

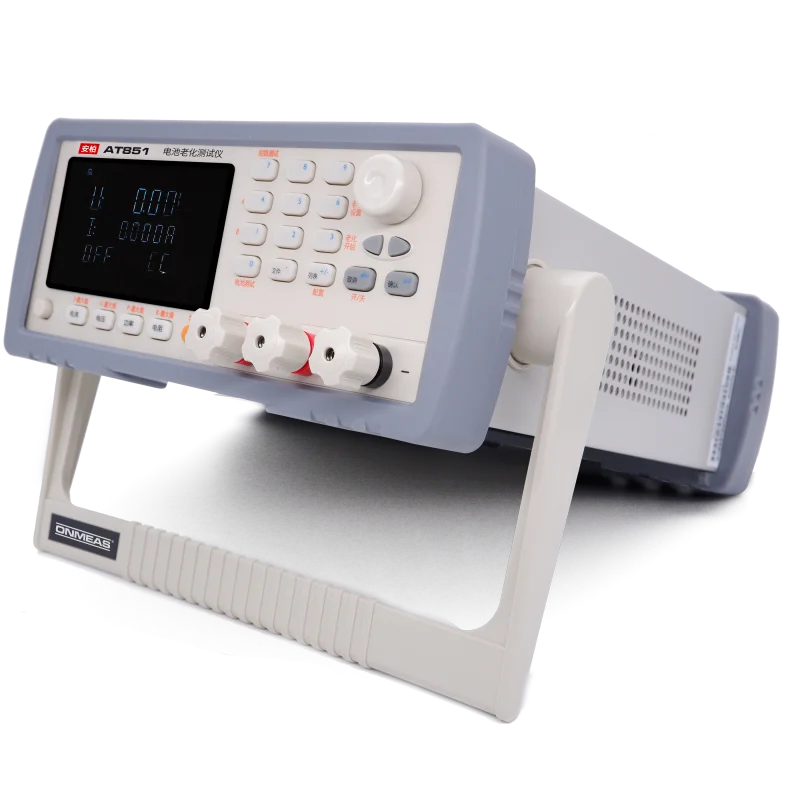

AT851侧

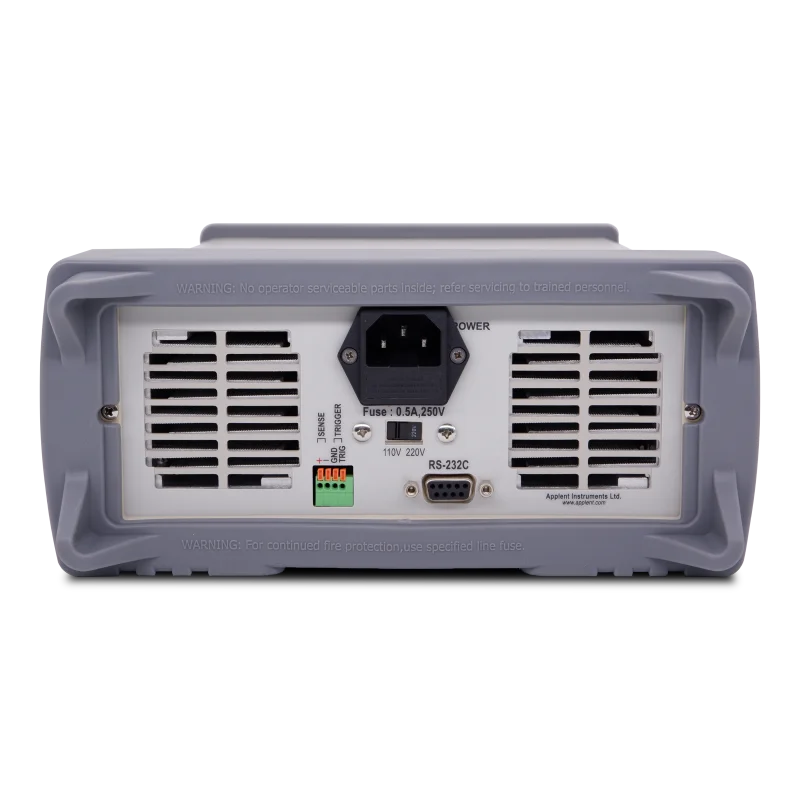

AT851背面
AT851

Battery Life Tester

CategoryBattery Internal Resistance Tester

The AT851 battery life tester is a stand-alone electronic load offering four load operating modes (CC, CV, CP and CR) together with battery life testing that meets the national standard. It includes all functions of the AT8512 - dynamic testing, list testing and comprehensive testing - plus battery life testing. Together with the instrument's internal file editor or the PC software, writing files becomes simpler and easier.

The AT851 supports 485 and RS232C interfaces and enables multi-unit communication. Compatibility with the standard SCPI protocol makes computer programming more convenient.

Besides testing ordinary linear and switching power supplies, the AT851 performs battery life burn-in testing even better, meeting the requirements of battery manufacturers.

Inquire nowReport incorrect product information

Specifications

ParameterAT851
Parameters
Rated Input300W, 120V, 30A
Constant Voltage0–18V: Resolution: 0.001V, Accuracy: 0.05%; 0–120V: Resolution: 0.01V, Accuracy: 0.05%
Constant Current0–3A: Resolution: 0.0001A, Accuracy: 0.05%; 0–30A: Resolution: 0.001A, Accuracy: 0.1%
Constant Power0–100W: Resolution: 0.001W, Accuracy: 1%; Above 100W: Resolution: 0.01W, Accuracy: 1%
Constant Resistance0.1–99Ω: Resolution: 0.01Ω, Accuracy: 1%; 100–4kΩ: Resolution: 0.1Ω, Accuracy: 1%
Short Circuit TestCurrent: approx. 30A; Internal resistance: approx. 40mΩ
Battery Life TestCycle count: 999
Comprehensive TestDischarge-Charge-Discharge-Standby
Battery Capacity TestMAX 999.99AH
MonitoringVoltmeter accuracy: 0.02%; Ammeter accuracy: 0.1%; Charge time: 0–1000 hours; Capacity detection: 0–999AH; Standby time: 0–1000 hours; Cycle count: 0–10000
Test SpeedFast: 10/s; Slow: 3/s
Protection5-level protection
Trigger ModeInternal trigger; Bus trigger; External trigger
General Parameters
DimensionsInstrument Dimensions264mm (W) × 107mm (H) × 350mm (D)
Package Dimensions-
WeightNet Weight7kg
Gross Weight-
Power RequirementsVoltage: 198–252VAC, Frequency: 47.5–52.5Hz, Power: 15VA
InterfaceRS-232C interface, Handler interface
Communication ProtocolSCPI protocol
OthersVFD display, 4-wire remote sensing, smart fan cooling; Comprehensive test: Discharge-Charge-Discharge-Standby; Battery capacity test: MAX 999.99AH; Accessories: ATL509 test cable, ATL108 RS-232 communication cable
