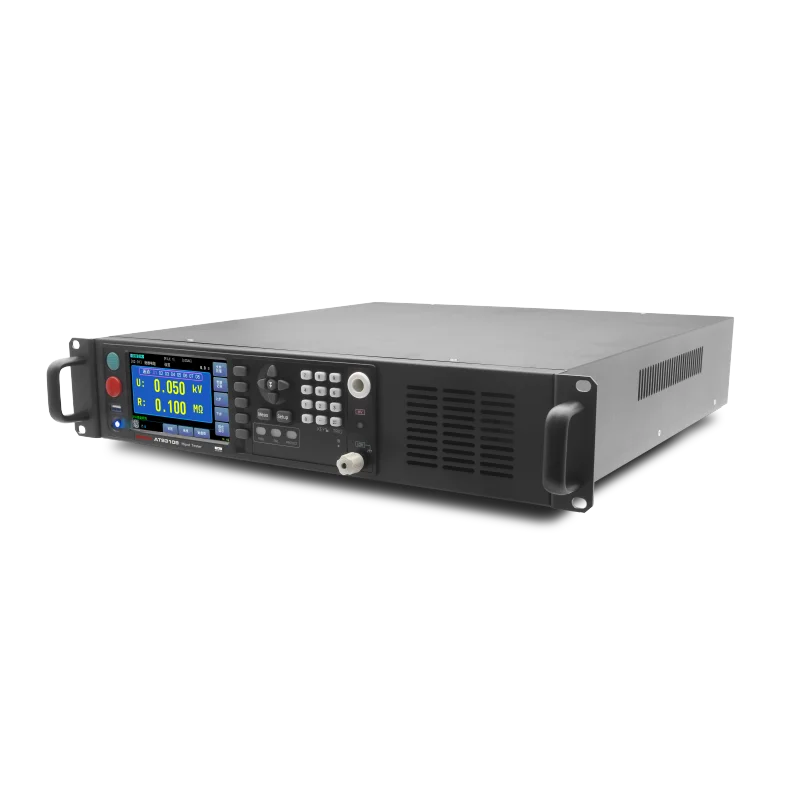

AT93108

8-Channel Comprehensive Safety Tester

CategoryMulti-Channel Comprehensive Safety Analyzer SeriesAT93XX Series

The AT93108 series multi-channel AC/DC hipot tester features a 5-inch color LCD display, equipped with a mainstream high-performance ARM processor for stable performance and easy operation. The standard 2U chassis is compact and space-saving, ideal for equipment integration. Fully isolated design and floating ground output enhance anti-interference capability!

The AT93208 is equipped with Handler (PLC), RS232C interface, and Ethernet port, enabling convenient data communication and remote control with PC, meeting automated testing requirements and improving production efficiency.

Inquire now Report incorrect product information

Parameter	AT93108
General Information
Test Functions	AC Withstanding Voltage, DC Withstanding Voltage, Insulation Resistance
Interface	USB-HOST, RS232/RS485, HANDLER, Alarm Light Interface, External Remote Control Interface
Standard Configuration	5kV, 100mA, 500VA
Comparator	Upper and lower limit intelligent judgment function, automatically identifies defective products, with audible and visual alarm
Protection Functions	Automatic over-voltage and over-current protection
Other Functions	List setting Discharge function 5-inch true-color LCD + touch screen
AC Withstanding Voltage
Rated Output	AC 5.000kV/100mA
Actual Output Power	500VA
Output Voltage	100~5000 V AC Resolution: 1V
Voltage Accuracy	2% of reading + 5 digits
Voltage Regulation	±(2%×setting value+5V)
Voltage Stability	±(0.4%×setting value+1V)/min, no load and full load
Output Waveform Distortion	Resistive load: <2%
Output Frequency	50Hz or 60Hz selectable
Short Circuit Current	>200mA
Voltage Measurement	0.10 ~ 5.00kV Resolution: 0.01kV
Voltage Measurement Accuracy	(1.5% of reading + 1 count)
Measurement Current	0.000~3.500/3.00~100.00 mA Resolution: 0.001 / 0.01mA
Current Accuracy	2% × reading + 5 digits
DC Withstanding Voltage
Rated Output	DC 6kV/50mA
Actual Output Power	300VA, ≥90%
Output Voltage	0.1kV-6.000kV DC Resolution: 1V
Voltage Accuracy	2% of reading + 5 digits
Voltage Regulation	±(1.5%×reading + 1 digit)
Output Ripple	<5% (6kV/1mA resistive load)
Current Measurement	0.0~350.0/300~3500/3000~9999 μA/50mA Resolution: 0.1/1/10μA/0.01mA
Current Accuracy	2% of reading + 5 digits
Insulation Resistance
Rated Output	DC 2.5kV/9999MΩ
Output Voltage	100~2500V DC Resolution: 1V
Voltage Accuracy	2% × setting value + 5V
Drop Voltage	>90%, drop resistance 10MΩ (1% × range)
Measurement Range	1MΩ-9999MΩ, Resolution 1MΩ
Resistance Accuracy	Range: (1~9999)MΩ, Resolution: 1MΩ Judgment Error: (100-499)V, 1~1000, ±(8%×reading+2 digits) 1000~2000, ±(12%×reading+2 digits) (500-2500V), 1~199, ±(2%×reading+2 digits), 200~999, ±(5%×reading+2 digits) 1000~9999, ±(15%×setting value+2 digits)
General Parameters
Dimensions	Instrument Dimensions	246(W)x112(H)x536(D)
Package Dimensions	-
Weight	Net Weight	20kg
Gross Weight	-
Power Requirements	Voltage: 220VAC, Frequency: 50Hz/60Hz, Power: 550VA
Interface	USB-HOST, RS232/RS485, HANDLER, Alarm Light Interface, External Remote Control Interface
Communication Protocol	SCPI
Others	Accessories: ATL900E Hipot Test Lead ATL108 Communication Cable ATL900E-1 High Voltage Test Probe
