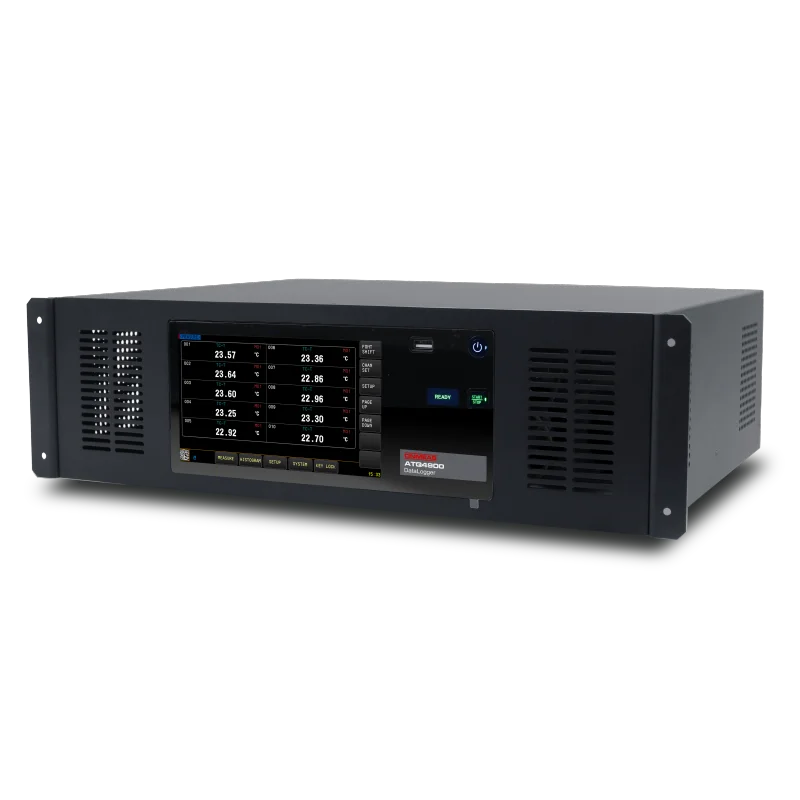

ATQ4900

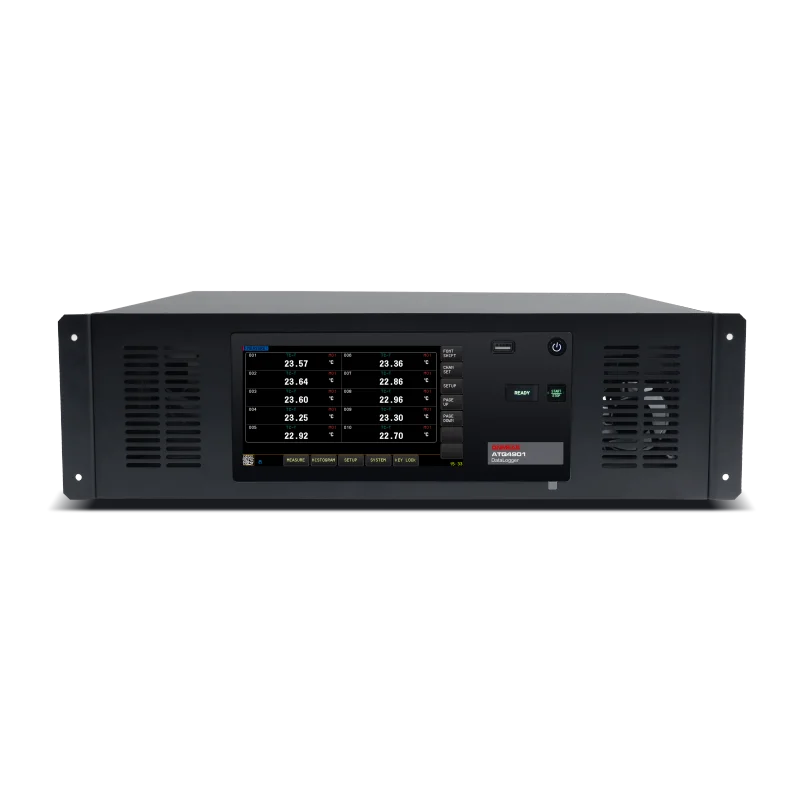

200-Channel Temperature Recorder

NewCategoryMulti-Channel Temperature Tester SeriesATQ49XX Series

The all-new upgraded AT4900 series multi-channel temperature tester features a high-performance ARM9 microprocessor for real-time high-speed data acquisition. Equipped with a 7-inch high-brightness capacitive touchscreen, it combines full-touch operation with auxiliary function keys, running the 7th generation ATOS operating system for enhanced usability and intelligence. The bilingual Chinese/English interface provides real-time measurement data and curve visualization for a completely new instrument experience.

The newly designed AT4900 series supports USB Type-C communication with USB flash drive mapping, and optional RS232/RS485/CAN/LAN interfaces. Utilizing real-time FPGA circuitry, it overcomes sampling rate limitations. Combined with high-efficiency, high-precision analog circuits, it achieves both high accuracy and ultra-high-speed sampling, with temperature measurement resolution improved to 0.01°C.

Inquire now Report incorrect product information

Parameter	ATQ4900
Basic Parameters

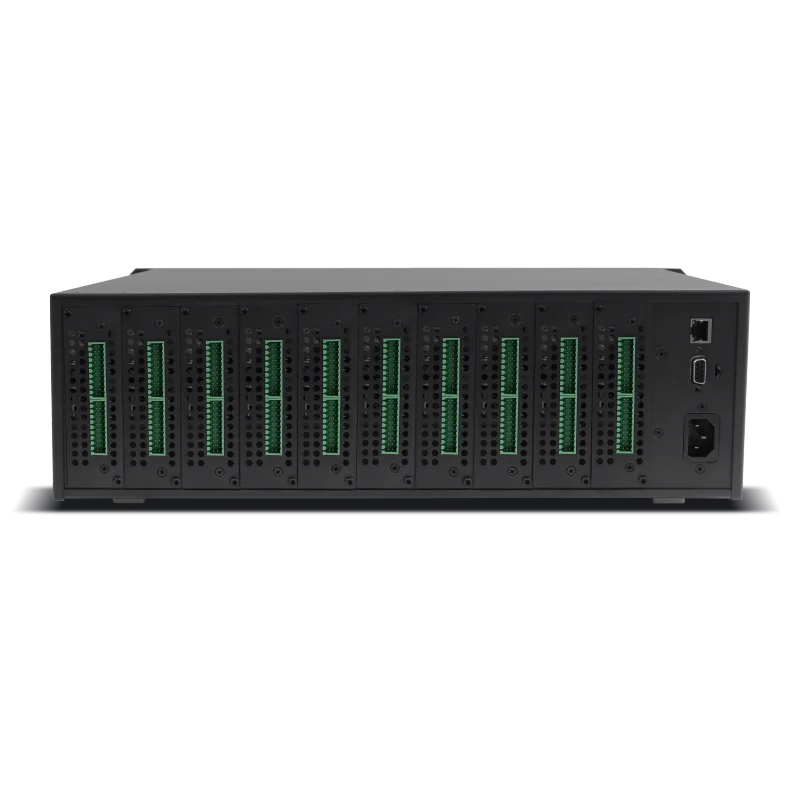

Number of Channels	Temperature/Voltage/Low Resistance: 100 channels (10 channels per module); Current: 50 channels (5 channels per module); Up to 10 modules configurable based on requirements
Thermocouple Type	Thermocouple J/K/T/E/S/N/B/R; Voltage; Low Resistance; Current
Resolution	0.01°C
Scan Speed	Voltage/Current: Fast 500ms, Slow 1s; Low Resistance: 60ms/channel (manual range)
Calibration	Per-channel error correction
Test Terminal Voltage	Channel-to-channel isolation voltage: 350VDC, 230VAC (temperature acquisition only)
Test Range	Temperature: -200°C to 1800°C; Low Resistance: 1μΩ to 200kΩ; Current: 0 to 5A (minimum resolution 0.001mA); Voltage: 100.00V 0.05%; 10.000V 0.05%; 1.0000V 0.05%; 100.00mV 0.1% (Test range varies depending on sensor type)
Basic Accuracy	±0.2% ±2 digits (excluding thermocouple)
Cold Junction Compensation	Accuracy 0.5°C
Other Functions	Comparator: High/Low alarm; Independent high/low limit settings per channel; Buzzer: On/Off; Display: Full-touch mirror panel with numerical values, temperature bar graph, and temperature curve; Upper/lower limit and average value display; Standard 64GB built-in memory; Open thermocouple detection
General Parameters
Dimensions	Instrument Dimensions	-
Package Dimensions	-
Weight	Net Weight	10kg
Gross Weight	-
Power Requirements	Voltage: 100-240VAC; Frequency: 47.5-52.5Hz; Power: Max 10VA
Interface	LAN, TYPE-C communication, RS-232, and USB interfaces; Optional RS485 interface available
Other	2m thermocouples (included with the instrument, quantity matches channel count); TYPE-C communication cable; Data acquisition software

Parameter

ATQ4900

Basic Parameters

Number of Channels

Temperature/Voltage/Low Resistance: 100 channels (10 channels per module); Current: 50 channels (5 channels per module); Up to 10 modules configurable based on requirements

Thermocouple Type

Thermocouple J/K/T/E/S/N/B/R; Voltage; Low Resistance; Current

Resolution

0.01°C

Scan Speed

Voltage/Current: Fast 500ms, Slow 1s; Low Resistance: 60ms/channel (manual range)

Calibration

Per-channel error correction

Test Terminal Voltage

Channel-to-channel isolation voltage: 350VDC, 230VAC (temperature acquisition only)

Test Range

Temperature: -200°C to 1800°C; Low Resistance: 1μΩ to 200kΩ; Current: 0 to 5A (minimum resolution 0.001mA); Voltage: 100.00V 0.05%; 10.000V 0.05%; 1.0000V 0.05%; 100.00mV 0.1% (Test range varies depending on sensor type)

Basic Accuracy

±0.2% ±2 digits (excluding thermocouple)

Cold Junction Compensation

Accuracy 0.5°C

Other Functions

Comparator: High/Low alarm; Independent high/low limit settings per channel; Buzzer: On/Off; Display: Full-touch mirror panel with numerical values, temperature bar graph, and temperature curve; Upper/lower limit and average value display; Standard 64GB built-in memory; Open thermocouple detection

General Parameters

Dimensions

Instrument Dimensions

Package Dimensions

Weight

Net Weight

10kg

Gross Weight

Power Requirements

Voltage: 100-240VAC; Frequency: 47.5-52.5Hz; Power: Max 10VA

Interface

LAN, TYPE-C communication, RS-232, and USB interfaces; Optional RS485 interface available

Other

2m thermocouples (included with the instrument, quantity matches channel count); TYPE-C communication cable; Data acquisition software

Parameter	ATQ4900
Basic Parameters
Number of Channels	Temperature/Voltage/Low Resistance: 100 channels (10 channels per module); Current: 50 channels (5 channels per module); Up to 10 modules configurable based on requirements
Thermocouple Type	Thermocouple J/K/T/E/S/N/B/R; Voltage; Low Resistance; Current
Resolution	0.01°C
Scan Speed	Voltage/Current: Fast 500ms, Slow 1s; Low Resistance: 60ms/channel (manual range)
Calibration	Per-channel error correction
Test Terminal Voltage	Channel-to-channel isolation voltage: 350VDC, 230VAC (temperature acquisition only)
Test Range	Temperature: -200°C to 1800°C; Low Resistance: 1μΩ to 200kΩ; Current: 0 to 5A (minimum resolution 0.001mA); Voltage: 100.00V 0.05%; 10.000V 0.05%; 1.0000V 0.05%; 100.00mV 0.1% (Test range varies depending on sensor type)
Basic Accuracy	±0.2% ±2 digits (excluding thermocouple)
Cold Junction Compensation	Accuracy 0.5°C
Other Functions	Comparator: High/Low alarm; Independent high/low limit settings per channel; Buzzer: On/Off; Display: Full-touch mirror panel with numerical values, temperature bar graph, and temperature curve; Upper/lower limit and average value display; Standard 64GB built-in memory; Open thermocouple detection
General Parameters
Dimensions	Instrument Dimensions	-
Package Dimensions	-
Weight	Net Weight	10kg
Gross Weight	-
Power Requirements	Voltage: 100-240VAC; Frequency: 47.5-52.5Hz; Power: Max 10VA
Interface	LAN, TYPE-C communication, RS-232, and USB interfaces; Optional RS485 interface available
Other	2m thermocouples (included with the instrument, quantity matches channel count); TYPE-C communication cable; Data acquisition software

Parameter

ATQ4900

Basic Parameters

Number of Channels

Temperature/Voltage/Low Resistance: 100 channels (10 channels per module); Current: 50 channels (5 channels per module); Up to 10 modules configurable based on requirements

Thermocouple Type

Thermocouple J/K/T/E/S/N/B/R; Voltage; Low Resistance; Current

Resolution

0.01°C

Scan Speed

Voltage/Current: Fast 500ms, Slow 1s; Low Resistance: 60ms/channel (manual range)

Calibration

Per-channel error correction

Test Terminal Voltage

Channel-to-channel isolation voltage: 350VDC, 230VAC (temperature acquisition only)

Test Range

Basic Accuracy

±0.2% ±2 digits (excluding thermocouple)

Cold Junction Compensation

Accuracy 0.5°C

Other Functions

General Parameters

Dimensions

Instrument Dimensions

Package Dimensions

Weight

Net Weight

10kg

Gross Weight

Power Requirements

Voltage: 100-240VAC; Frequency: 47.5-52.5Hz; Power: Max 10VA

Interface

LAN, TYPE-C communication, RS-232, and USB interfaces; Optional RS485 interface available

Other

2m thermocouples (included with the instrument, quantity matches channel count); TYPE-C communication cable; Data acquisition software
