AT47XXASeries

Multi-Channel Temperature Tester (High-Precision Version)

Contains 8 products CategoryMulti-Channel Temperature Tester

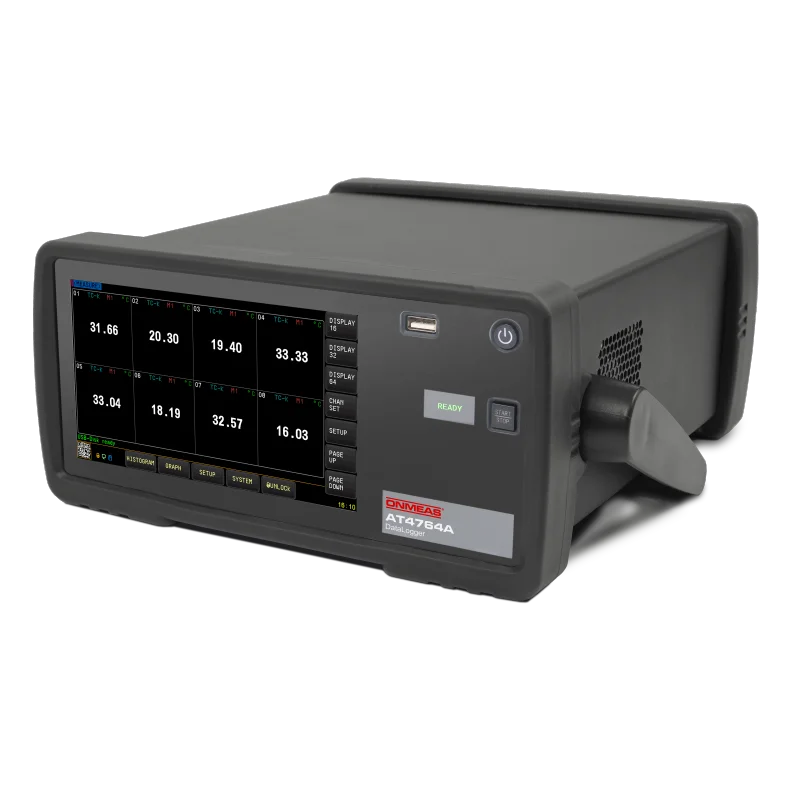

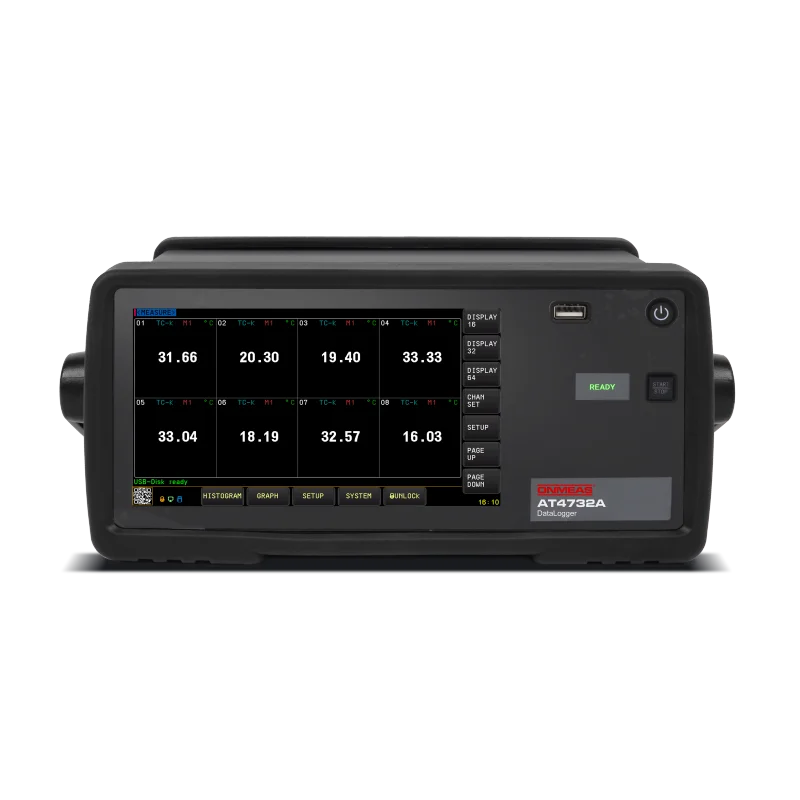

The newly upgraded AT47A series (AT4708A, AT4716A, AT4724A, AT4732A, AT4740A, AT4748A, AT4756A and AT4764A) multi-channel temperature tester is controlled by a high-performance ARM microprocessor and has 64 GB of built-in storage. Its 7-inch capacitive LCD with touch operation makes it easy to view temperature values, temperature curves and bar charts, and it can acquire multiple temperature channels simultaneously with over/under alarm and communication functions. The AT47A series can acquire up to 64 temperature channels and supports K/N/E/J/T/R/S/B type thermocouples with fast response and stable data, plus thermocouple break detection; each channel can be configured and calibrated independently.

The instrument supports USB communication, and the supplied PC software enables data acquisition, analysis and printing; a USB disk storage function records sampled data in real time, and users can calibrate each channel independently.

The AT47A series uses fully isolated digital and analogue signals for live testing (isolation voltage 350 VDC, 230 VAC), making it safe and reliable.

View series products

Inquire now Report incorrect product information

Parameter	AT4708A	AT4716A	AT4724A	AT4732A	AT4740A	AT4748A	AT4756A	AT4764A
Basic Parameters
Number of Channels	8 channels	16 channels	24 channels	32 channels	40 channels	48 channels	56 channels	64 channels
Thermocouple Type	Thermocouple: J/K/T/E/S/N/B/R type	Thermocouple: J/K/T/E/S/N/B/R types	Thermocouple: J/K/T/E/S/N/B/R type	Thermocouple: J/K/T/E/S/N/B/R types	J/K/T/E/S/N/B/R type thermocouples	Thermocouple: J/K/T/E/S/N/B/R types
Resolution	0.01℃	0.01°C	0.01℃	0.01°C
Scan Speed	Fast: 500ms/channel; Slow: 1s/channel	Fast: 500 ms/channel; Slow: 1 s/channel	Fast: 500ms/channel; Slow: 1s/channel	Fast: 500 ms/ch; Slow: 1 s/ch	Fast: 500ms/channel; Slow: 1s/channel	Fast: 500 ms/ch; Slow: 1 s/ch
Calibration	Error correction per channel	Per-channel error correction
Test Terminal Voltage	Channel-to-channel isolation voltage: DC 350V; AC 230V	Channel-to-channel isolation voltage: 350VDC; 230VAC	Channel-to-channel isolation voltage: 350VDC, 230VAC	Channel isolation voltage: 350VDC; 230VAC	Channel isolation: 350 VDC / 230 VAC	Channel-to-channel isolation voltage: 350VDC, 230VAC	Channel-to-channel isolation: 350 VDC / 230 VAC
Test Range	-200℃～1800℃ (depends on thermocouple type)	-200°C to 1800°C (depends on thermocouple type)	-200℃ to 1800℃ (depending on thermocouple type)	-200°C to 1800°C (specific range depends on thermocouple type)	-200°C to 1800°C (depends on thermocouple type)	-200°C to 1800°C (specific range depends on thermocouple type)	-200°C to 1800°C (depends on thermocouple type)
Basic Accuracy	±0.1%FS (typical)	±0.1% FS (typical)	±0.1%FS (typical)	±0.1% FS (typical)
Cold Junction Compensation	Accuracy: 0.5℃	Accuracy: 0.5°C	Accuracy 0.5℃	Accuracy: 0.5°C	Accuracy 0.5°C	0.5°C accuracy	Accuracy: 0.5°C	Accuracy 0.5°C
Other Functions	Upper/lower limit alarm, configurable per channel; Data logging; USB storage support	High/low alarm, independently set per channel; data logging; USB storage support	Upper/lower limit alarm, configurable per channel; data logging function; USB storage support	High/low alarm, individually set per channel; data logging; USB storage support	High/low alarm, configurable per channel; Data logging function; USB storage support	High/low alarm per channel; data logging; USB storage support	High/low limit alarming, independently configurable per channel; data logging; USB drive storage support	High/low alarm per channel; data logging; USB storage support
General Parameters
Dimensions	Instrument Dimensions	294(W) x 130(H) x 316(D) mm	294 (W) x 130 (H) x 316 (D) mm	294(W) x 130(H) x 316(D) mm	294 (W) × 130 (H) × 316 (D) mm	294mm(W) × 130mm(H) × 316mm(D)	294 mm (W) × 130 mm (H) × 316 mm (D)
Package Dimensions	350mm x 200mm x 400mm	350 mm x 200 mm x 400 mm	350mm x 200mm x 400mm	350 × 200 × 400 mm	350mm × 200mm × 400mm	350 mm × 200 mm × 400 mm
Weight	Net Weight	3kg	3 kg	3kg	3 kg	3kg	3 kg
Gross Weight	4.5kg	4.5 kg	4.5kg	4.5 kg	4.5kg	4.5 kg
Power Requirements	Voltage: 100VAC～240VAC, Frequency: 47.5-52.5Hz, Power: 10VA	100VAC to 240VAC, 47.5–52.5 Hz, 10 VA	Voltage: 100VAC~240VAC, Frequency: 47.5-52.5Hz, Power: 10VA	Voltage: 100-240VAC, Frequency: 47.5-52.5Hz, Power: 10VA	Voltage: 100VAC to 240VAC, Frequency: 47.5-52.5Hz, Power: 10VA	100 VAC–240 VAC, 47.5–52.5 Hz, 10 VA	Voltage: 100VAC to 240VAC; Frequency: 47.5–52.5Hz; Power: 10VA	100–240 VAC, 47.5–52.5 Hz, 10 VA
Interface	RS232C interface, USB interface, Type-C communication interface, LAN interface	RS232C, USB drive, Type-C communication, LAN	RS232C interface, USB port, Type-C communication port, LAN interface	RS232C, USB drive, Type-C communication, LAN	RS232C interface, USB flash drive interface, Type-C communication interface, LAN interface	RS232C, USB, Type-C, LAN	RS232C, USB drive, Type-C communication, LAN	RS232C, USB flash drive, Type-C, LAN
Other	7-inch TFT-LCD true color display; Broken-thermocouple detection; Included software: ATS45 data acquisition software; Accessories: 8 thermocouples (2m each), Type-C communication cable	7-inch TFT-LCD color display, thermocouple open detection; included software: ATS45 data acquisition software; accessories: 2 m thermocouples (1 set of 8), Type-C communication cable	7-inch TFT-LCD color display, thermocouple disconnection detection; standard software: ATS45 data acquisition software; accessories: 8 thermocouples (2m each), Type-C communication cable	7-inch TFT-LCD color display, open-circuit detection; included software: ATS45 data acquisition software; accessories: 8 thermocouples (2m each), Type-C communication cable	7-inch TFT-LCD color display, open thermocouple detection; Standard software: ATS45 data acquisition software; Accessories: Thermocouple (2m, 8 pcs per set), Type-C communication cable	7" TFT-LCD color display; broken thermocouple detection; ATS45 data acquisition software included; 8 × 2 m thermocouples & Type-C cable included	7-inch TFT-LCD color display, thermocouple break detection; standard software: ATS45 data acquisition software; accessories: 8 × 2m thermocouples, Type-C communication cable	7" TFT-LCD color display, open-circuit detection; included software: ATS45 data acquisition; accessories: thermocouple set (8 × 2 m), Type-C cable

Parameter

AT4708A

AT4716A

AT4724A

AT4732A

AT4740A

AT4748A

AT4756A

AT4764A

Basic Parameters

Number of Channels

8 channels

16 channels

24 channels

32 channels

40 channels

48 channels

56 channels

64 channels

Thermocouple Type

Thermocouple: J/K/T/E/S/N/B/R type

Thermocouple: J/K/T/E/S/N/B/R types

Thermocouple: J/K/T/E/S/N/B/R type

Thermocouple: J/K/T/E/S/N/B/R types

J/K/T/E/S/N/B/R type thermocouples

Thermocouple: J/K/T/E/S/N/B/R types

Resolution

0.01℃

0.01°C

0.01℃

0.01°C

Scan Speed

Fast: 500ms/channel; Slow: 1s/channel

Fast: 500 ms/channel; Slow: 1 s/channel

Fast: 500ms/channel; Slow: 1s/channel

Fast: 500 ms/ch; Slow: 1 s/ch

Fast: 500ms/channel; Slow: 1s/channel

Fast: 500 ms/ch; Slow: 1 s/ch

Calibration

Error correction per channel

Per-channel error correction

Test Terminal Voltage

Channel-to-channel isolation voltage: DC 350V; AC 230V

Channel-to-channel isolation voltage: 350VDC; 230VAC

Channel-to-channel isolation voltage: 350VDC, 230VAC

Channel isolation voltage: 350VDC; 230VAC

Channel isolation: 350 VDC / 230 VAC

Channel-to-channel isolation voltage: 350VDC, 230VAC

Channel-to-channel isolation: 350 VDC / 230 VAC

Test Range

-200℃～1800℃ (depends on thermocouple type)

-200°C to 1800°C (depends on thermocouple type)

-200℃ to 1800℃ (depending on thermocouple type)

-200°C to 1800°C (specific range depends on thermocouple type)

-200°C to 1800°C (depends on thermocouple type)

-200°C to 1800°C (specific range depends on thermocouple type)

-200°C to 1800°C (depends on thermocouple type)

Basic Accuracy

±0.1%FS (typical)

±0.1% FS (typical)

±0.1%FS (typical)

±0.1% FS (typical)

Cold Junction Compensation

Accuracy: 0.5℃

Accuracy: 0.5°C

Accuracy 0.5℃

Accuracy: 0.5°C

Accuracy 0.5°C

0.5°C accuracy

Accuracy: 0.5°C

Accuracy 0.5°C

Other Functions

Upper/lower limit alarm, configurable per channel; Data logging; USB storage support

High/low alarm, independently set per channel; data logging; USB storage support

Upper/lower limit alarm, configurable per channel; data logging function; USB storage support

High/low alarm, individually set per channel; data logging; USB storage support

High/low alarm, configurable per channel; Data logging function; USB storage support

High/low alarm per channel; data logging; USB storage support

High/low limit alarming, independently configurable per channel; data logging; USB drive storage support

High/low alarm per channel; data logging; USB storage support

General Parameters

Dimensions

Instrument Dimensions

294(W) x 130(H) x 316(D) mm

294 (W) x 130 (H) x 316 (D) mm

294(W) x 130(H) x 316(D) mm

294 (W) × 130 (H) × 316 (D) mm

294mm(W) × 130mm(H) × 316mm(D)

294 mm (W) × 130 mm (H) × 316 mm (D)

Package Dimensions

350mm x 200mm x 400mm

350 mm x 200 mm x 400 mm

350mm x 200mm x 400mm

350 × 200 × 400 mm

350mm × 200mm × 400mm

350 mm × 200 mm × 400 mm

Weight

Net Weight

3kg

3 kg

3kg

3 kg

3kg

3 kg

Gross Weight

4.5kg

4.5 kg

4.5kg

4.5 kg

4.5kg

4.5 kg

Power Requirements

Voltage: 100VAC～240VAC, Frequency: 47.5-52.5Hz, Power: 10VA

100VAC to 240VAC, 47.5–52.5 Hz, 10 VA

Voltage: 100VAC~240VAC, Frequency: 47.5-52.5Hz, Power: 10VA

Voltage: 100-240VAC, Frequency: 47.5-52.5Hz, Power: 10VA

Voltage: 100VAC to 240VAC, Frequency: 47.5-52.5Hz, Power: 10VA

100 VAC–240 VAC, 47.5–52.5 Hz, 10 VA

Voltage: 100VAC to 240VAC; Frequency: 47.5–52.5Hz; Power: 10VA

100–240 VAC, 47.5–52.5 Hz, 10 VA

Interface

RS232C interface, USB interface, Type-C communication interface, LAN interface

RS232C, USB drive, Type-C communication, LAN

RS232C interface, USB port, Type-C communication port, LAN interface

RS232C, USB drive, Type-C communication, LAN

RS232C interface, USB flash drive interface, Type-C communication interface, LAN interface

RS232C, USB, Type-C, LAN

RS232C, USB drive, Type-C communication, LAN

RS232C, USB flash drive, Type-C, LAN

Other

7-inch TFT-LCD true color display; Broken-thermocouple detection; Included software: ATS45 data acquisition software; Accessories: 8 thermocouples (2m each), Type-C communication cable

7-inch TFT-LCD color display, thermocouple open detection; included software: ATS45 data acquisition software; accessories: 2 m thermocouples (1 set of 8), Type-C communication cable

7-inch TFT-LCD color display, thermocouple disconnection detection; standard software: ATS45 data acquisition software; accessories: 8 thermocouples (2m each), Type-C communication cable

7-inch TFT-LCD color display, open-circuit detection; included software: ATS45 data acquisition software; accessories: 8 thermocouples (2m each), Type-C communication cable

7-inch TFT-LCD color display, open thermocouple detection; Standard software: ATS45 data acquisition software; Accessories: Thermocouple (2m, 8 pcs per set), Type-C communication cable

7" TFT-LCD color display; broken thermocouple detection; ATS45 data acquisition software included; 8 × 2 m thermocouples & Type-C cable included

7-inch TFT-LCD color display, thermocouple break detection; standard software: ATS45 data acquisition software; accessories: 8 × 2m thermocouples, Type-C communication cable

7" TFT-LCD color display, open-circuit detection; included software: ATS45 data acquisition; accessories: thermocouple set (8 × 2 m), Type-C cable
