AT9220Series

AC/DC Withstand Voltage and Insulation Tester

Contains 2 products CategoryAC/DC Hipot & Insulation Resistance Tester

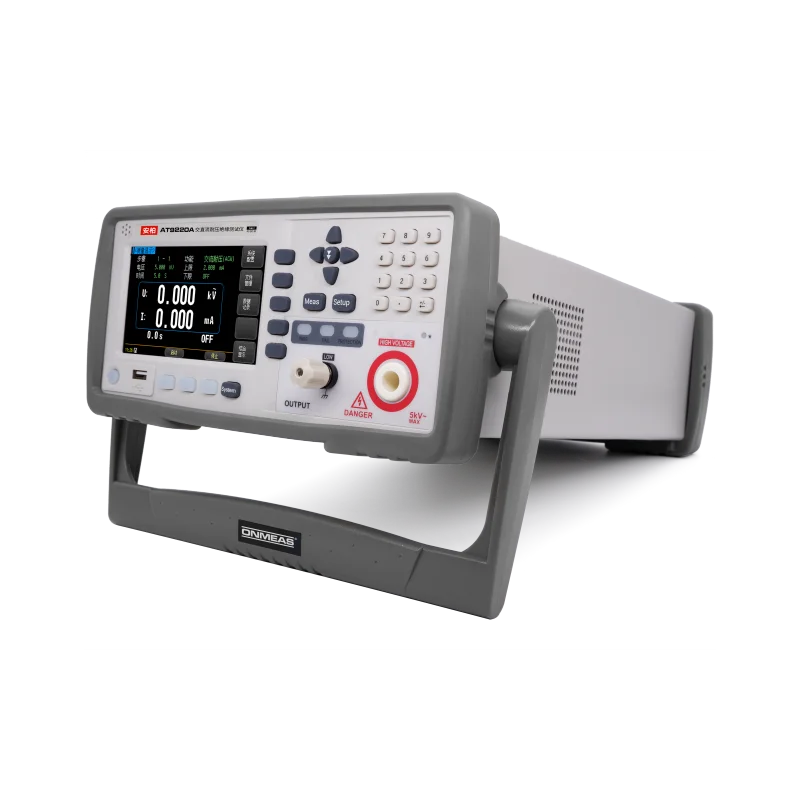

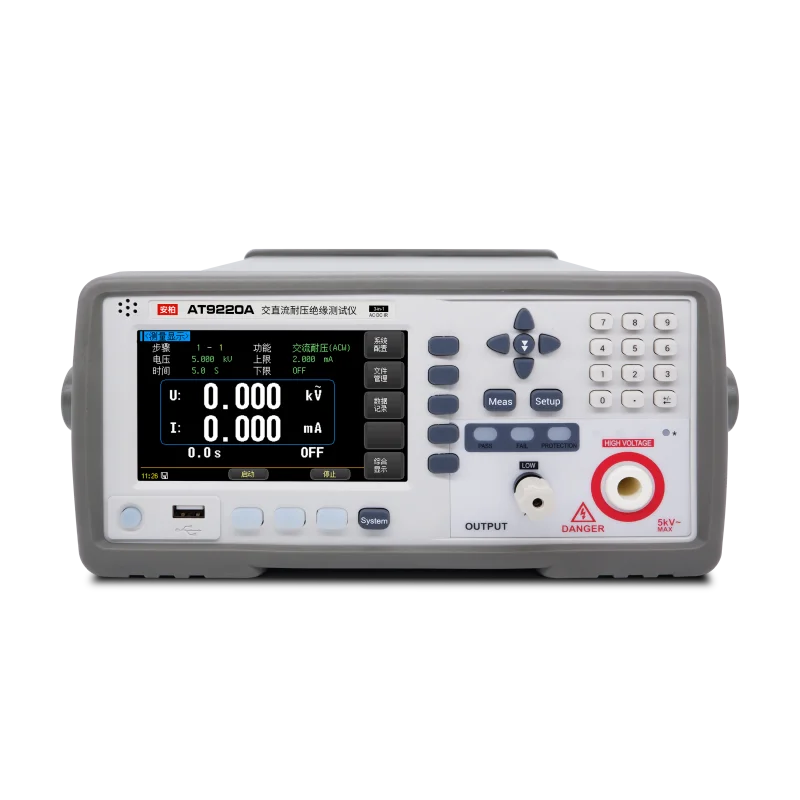

The AT9220 series AC/DC withstand voltage tester uses a 5-inch colour LCD with touch control together with a mainstream high-performance 32-bit ARM processor. It is compact and lightweight (8 kg), offering excellent value for money and convenient operation. The high-voltage module uses a DA reference, a controllable sine generator, a class AB power amplifier and a 40-600 Hz high-voltage transformer for step-up, with closed-loop control of the output voltage.

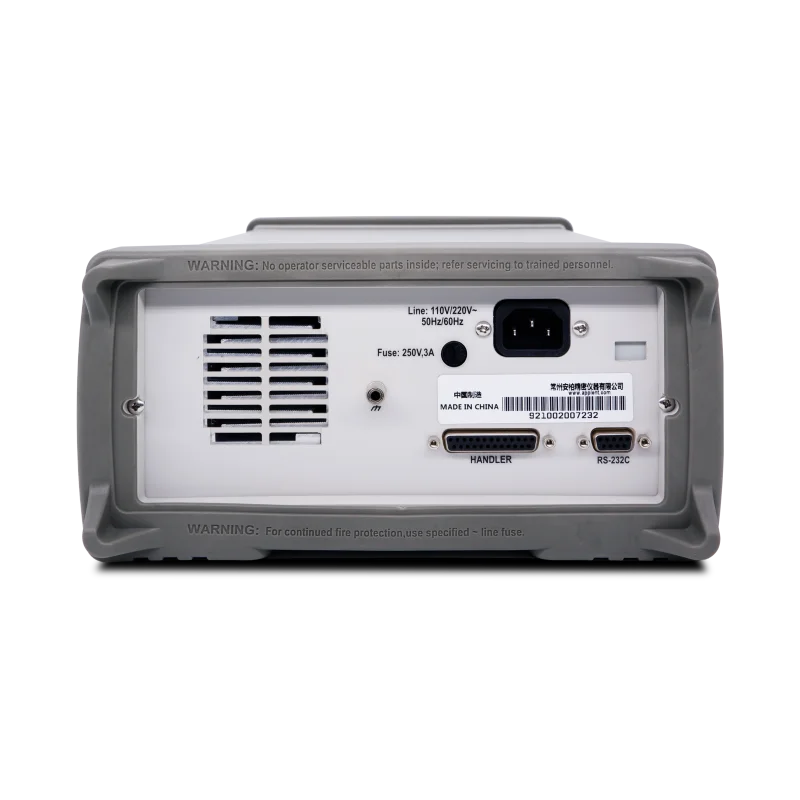

The AT9220 is equipped with Handler (PLC) and RS232C interfaces for convenient data communication and remote control from a PC, meeting the requirements of automated testing and improving production efficiency.

View series products

Inquire now Report incorrect product information

Parameter	AT9210	AT9220
Basic Information
Channels	Single channel	Single Channel
Test Functions	AC withstand voltage, DC withstand voltage, Insulation resistance	AC Withstand, DC Withstand, Insulation Resistance
Interfaces	RS232/Handler
Arc Detection	9 levels (AC/DC)
Other Functions	List setting Discharge function 5-inch true color LCD + touch screen
AC Withstand Voltage
Rated Output	AC 5.000kV/10mA	AC 5.000kV/20mA
Output Voltage	0.050kV-5.000kV AC Resolution: 1V
Voltage Accuracy	2% of reading + 5 digits
Voltage Regulation	2% of reading + 5V (from no load to full load)	2% of reading + 5V (from no-load to full-load)
Output Frequency	50Hz or 60Hz selectable
Measurement Current	0.001mA-10.00mA Resolution: 0.001/0.01	0.001mA-20.00mA Resolution: 0.001/0.01
Current Accuracy	2% of reading + 5 digits
Voltage Rise Time	0.1s-999.9s
Test Time	0.1s-999.9s
Voltage Fall Time	0.1s-999.9s
DC Withstand Voltage
Rated Output	DC 6kV/5mA	DC 6kV/10mA
Output Voltage	0.050kV-6.000kV DC Resolution: 1V
Voltage Accuracy	2% of reading + 5 digits
Voltage Regulation	2% of reading + 5V
Current Measurement	0.1μA-5.000mA	0.1μA-10.000mA
Current Accuracy	2% of reading + 5 digits
Voltage Rise Time	0.1s-999.9s
Test Time	0.2s-999.9s
Voltage Fall Time	0.1s-999.9s
Insulation Resistance
Rated Output	DC 1kV/10GΩ
Output Voltage	0.050kV-1.000kV DC Resolution: 1V
Voltage Accuracy	1% of reading + 2 digits
Measurement Range	0.1MΩ-10GΩ <500V: 0.1MΩ-1GΩ, Accuracy: ±(10% of reading +5 digits); 1GΩ-10GΩ, for reference only ≥500V: 1MΩ-1GΩ, Accuracy: ±(5% of reading +5 digits); 1GΩ-10GΩ, Accuracy: ±(10% of reading +5 digits)	0.1MΩ-10GΩ <500V: 0.1MΩ-1GΩ, Accuracy: ±(10% of reading +5 digits); 1GΩ-10GΩ, reference only ≥500V: 1MΩ-1GΩ, Accuracy: ±(5% of reading +5 digits); 1GΩ-10GΩ, Accuracy: ±(10% of reading +5 digits)
General Parameters
Dimensions	Instrument Dimensions	270mm(W)x130mm(H)x450mm(D)	270mm(W)×130mm(H)×450mm(D)
Package Dimensions	-
Weight	Net Weight	8kg
Gross Weight	-
Power Requirements	110VAC~220VAC, 47Hz~63Hz, 300VA
Interfaces	Handler interface (PLC interface), RS232C, USB
Others	Accessories: ATL900E withstand voltage test lead, ATL108 communication cable, ATL900E-1 high voltage probe	Accessories: ATL900E hipot test lead, ATL108 communication cable, ATL900E-1 high voltage test probe

Parameter

AT9210

AT9220

Basic Information

Channels

Single channel

Single Channel

Test Functions

AC withstand voltage, DC withstand voltage, Insulation resistance

AC Withstand, DC Withstand, Insulation Resistance

Interfaces

RS232/Handler

Arc Detection

9 levels (AC/DC)

Other Functions

List setting Discharge function 5-inch true color LCD + touch screen

AC Withstand Voltage

Rated Output

AC 5.000kV/10mA

AC 5.000kV/20mA

Output Voltage

0.050kV-5.000kV AC Resolution: 1V

Voltage Accuracy

2% of reading + 5 digits

Voltage Regulation

2% of reading + 5V (from no load to full load)

2% of reading + 5V (from no-load to full-load)

Output Frequency

50Hz or 60Hz selectable

Measurement Current

0.001mA-10.00mA Resolution: 0.001/0.01

0.001mA-20.00mA Resolution: 0.001/0.01

Current Accuracy

2% of reading + 5 digits

Voltage Rise Time

0.1s-999.9s

Test Time

0.1s-999.9s

Voltage Fall Time

0.1s-999.9s

DC Withstand Voltage

Rated Output

DC 6kV/5mA

DC 6kV/10mA

Output Voltage

0.050kV-6.000kV DC Resolution: 1V

Voltage Accuracy

2% of reading + 5 digits

Voltage Regulation

2% of reading + 5V

Current Measurement

0.1μA-5.000mA

0.1μA-10.000mA

Current Accuracy

2% of reading + 5 digits

Voltage Rise Time

0.1s-999.9s

Test Time

0.2s-999.9s

Voltage Fall Time

0.1s-999.9s

Insulation Resistance

Rated Output

DC 1kV/10GΩ

Output Voltage

0.050kV-1.000kV DC Resolution: 1V

Voltage Accuracy

1% of reading + 2 digits

Measurement Range

0.1MΩ-10GΩ <500V: 0.1MΩ-1GΩ, Accuracy: ±(10% of reading +5 digits); 1GΩ-10GΩ, for reference only ≥500V: 1MΩ-1GΩ, Accuracy: ±(5% of reading +5 digits); 1GΩ-10GΩ, Accuracy: ±(10% of reading +5 digits)

0.1MΩ-10GΩ <500V: 0.1MΩ-1GΩ, Accuracy: ±(10% of reading +5 digits); 1GΩ-10GΩ, reference only ≥500V: 1MΩ-1GΩ, Accuracy: ±(5% of reading +5 digits); 1GΩ-10GΩ, Accuracy: ±(10% of reading +5 digits)

General Parameters

Dimensions

Instrument Dimensions

270mm(W)x130mm(H)x450mm(D)

270mm(W)×130mm(H)×450mm(D)

Package Dimensions

Weight

Net Weight

8kg

Gross Weight

Power Requirements

110VAC~220VAC, 47Hz~63Hz, 300VA

Interfaces

Handler interface (PLC interface), RS232C, USB

Others

Accessories: ATL900E withstand voltage test lead, ATL108 communication cable, ATL900E-1 high voltage probe

Accessories: ATL900E hipot test lead, ATL108 communication cable, ATL900E-1 high voltage test probe

Parameter	AT9210	AT9220
Basic Information
Channels	Single channel	Single Channel
Test Functions	AC withstand voltage, DC withstand voltage, Insulation resistance	AC Withstand, DC Withstand, Insulation Resistance
Interfaces	RS232/Handler
Arc Detection	9 levels (AC/DC)
Other Functions	List setting Discharge function 5-inch true color LCD + touch screen
AC Withstand Voltage
Rated Output	AC 5.000kV/10mA	AC 5.000kV/20mA
Output Voltage	0.050kV-5.000kV AC Resolution: 1V
Voltage Accuracy	2% of reading + 5 digits
Voltage Regulation	2% of reading + 5V (from no load to full load)	2% of reading + 5V (from no-load to full-load)
Output Frequency	50Hz or 60Hz selectable
Measurement Current	0.001mA-10.00mA Resolution: 0.001/0.01	0.001mA-20.00mA Resolution: 0.001/0.01
Current Accuracy	2% of reading + 5 digits
Voltage Rise Time	0.1s-999.9s
Test Time	0.1s-999.9s
Voltage Fall Time	0.1s-999.9s
DC Withstand Voltage
Rated Output	DC 6kV/5mA	DC 6kV/10mA
Output Voltage	0.050kV-6.000kV DC Resolution: 1V
Voltage Accuracy	2% of reading + 5 digits
Voltage Regulation	2% of reading + 5V
Current Measurement	0.1μA-5.000mA	0.1μA-10.000mA
Current Accuracy	2% of reading + 5 digits
Voltage Rise Time	0.1s-999.9s
Test Time	0.2s-999.9s
Voltage Fall Time	0.1s-999.9s
Insulation Resistance
Rated Output	DC 1kV/10GΩ
Output Voltage	0.050kV-1.000kV DC Resolution: 1V
Voltage Accuracy	1% of reading + 2 digits
Measurement Range	0.1MΩ-10GΩ <500V: 0.1MΩ-1GΩ, Accuracy: ±(10% of reading +5 digits); 1GΩ-10GΩ, for reference only ≥500V: 1MΩ-1GΩ, Accuracy: ±(5% of reading +5 digits); 1GΩ-10GΩ, Accuracy: ±(10% of reading +5 digits)	0.1MΩ-10GΩ <500V: 0.1MΩ-1GΩ, Accuracy: ±(10% of reading +5 digits); 1GΩ-10GΩ, reference only ≥500V: 1MΩ-1GΩ, Accuracy: ±(5% of reading +5 digits); 1GΩ-10GΩ, Accuracy: ±(10% of reading +5 digits)
General Parameters
Dimensions	Instrument Dimensions	270mm(W)x130mm(H)x450mm(D)	270mm(W)×130mm(H)×450mm(D)
Package Dimensions	-
Weight	Net Weight	8kg
Gross Weight	-
Power Requirements	110VAC~220VAC, 47Hz~63Hz, 300VA
Interfaces	Handler interface (PLC interface), RS232C, USB
Others	Accessories: ATL900E withstand voltage test lead, ATL108 communication cable, ATL900E-1 high voltage probe	Accessories: ATL900E hipot test lead, ATL108 communication cable, ATL900E-1 high voltage test probe

Parameter

AT9210

AT9220

Basic Information

Channels

Single channel

Single Channel

Test Functions

AC withstand voltage, DC withstand voltage, Insulation resistance

AC Withstand, DC Withstand, Insulation Resistance

Interfaces

RS232/Handler

Arc Detection

9 levels (AC/DC)

Other Functions

List setting Discharge function 5-inch true color LCD + touch screen

AC Withstand Voltage

Rated Output

AC 5.000kV/10mA

AC 5.000kV/20mA

Output Voltage

0.050kV-5.000kV AC Resolution: 1V

Voltage Accuracy

2% of reading + 5 digits

Voltage Regulation

2% of reading + 5V (from no load to full load)

2% of reading + 5V (from no-load to full-load)

Output Frequency

50Hz or 60Hz selectable

Measurement Current

0.001mA-10.00mA Resolution: 0.001/0.01

0.001mA-20.00mA Resolution: 0.001/0.01

Current Accuracy

2% of reading + 5 digits

Voltage Rise Time

0.1s-999.9s

Test Time

0.1s-999.9s

Voltage Fall Time

0.1s-999.9s

DC Withstand Voltage

Rated Output

DC 6kV/5mA

DC 6kV/10mA

Output Voltage

0.050kV-6.000kV DC Resolution: 1V

Voltage Accuracy

2% of reading + 5 digits

Voltage Regulation

2% of reading + 5V

Current Measurement

0.1μA-5.000mA

0.1μA-10.000mA

Current Accuracy

2% of reading + 5 digits

Voltage Rise Time

0.1s-999.9s

Test Time

0.2s-999.9s

Voltage Fall Time

0.1s-999.9s

Insulation Resistance

Rated Output

DC 1kV/10GΩ

Output Voltage

0.050kV-1.000kV DC Resolution: 1V

Voltage Accuracy

1% of reading + 2 digits

Measurement Range

General Parameters

Dimensions

Instrument Dimensions

270mm(W)x130mm(H)x450mm(D)

270mm(W)×130mm(H)×450mm(D)

Package Dimensions

Weight

Net Weight

8kg

Gross Weight

Power Requirements

110VAC~220VAC, 47Hz~63Hz, 300VA

Interfaces

Handler interface (PLC interface), RS232C, USB

Others

Accessories: ATL900E withstand voltage test lead, ATL108 communication cable, ATL900E-1 high voltage probe

Accessories: ATL900E hipot test lead, ATL108 communication cable, ATL900E-1 high voltage test probe
