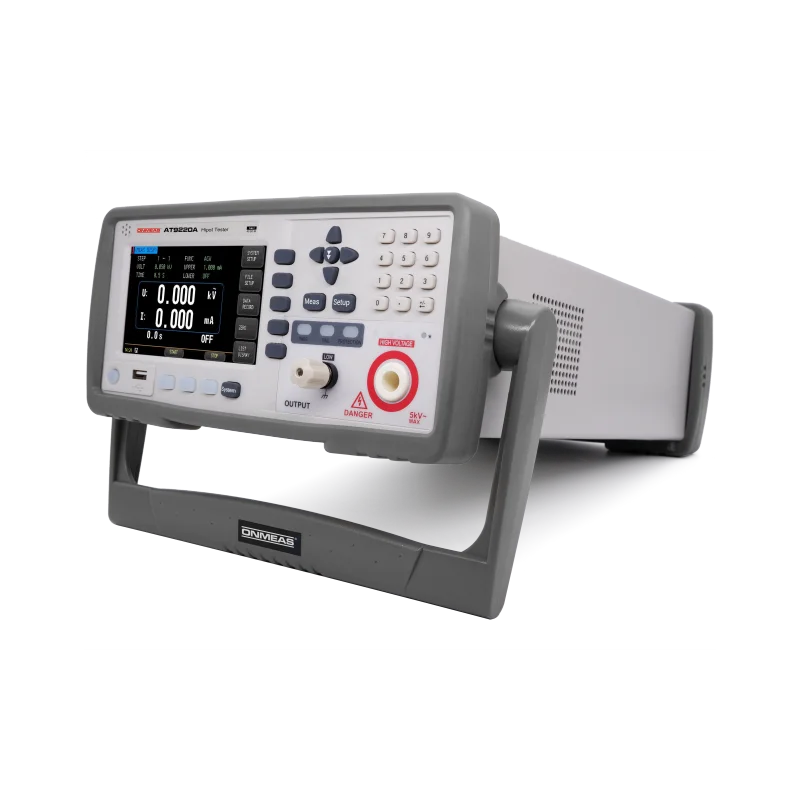

AT9220ASeries

AC/DC Withstand Voltage Tester

Contains 2 products CategoryAC/DC Hipot & Insulation Resistance Tester

The AT9220A AC/DC withstand voltage tester features a 5-inch colour LCD with touch control and a high-performance 32-bit ARM processor, and is compact, lightweight and easy to operate. Its high-voltage module uses a DA reference, a controllable sine generator, a class AB power amplifier and a 40–600 Hz high-voltage transformer for step-up, with closed-loop control of the output voltage.

The instrument supports AC withstand voltage testing from 0.050 kV to 5.000 kV and DC withstand voltage testing from 0.050 kV to 6.000 kV. Handler (PLC) and RS-232C interfaces allow convenient data communication and remote control from a PC, meeting the requirements of automated testing and improving production efficiency.

View series products

Inquire now Report incorrect product information

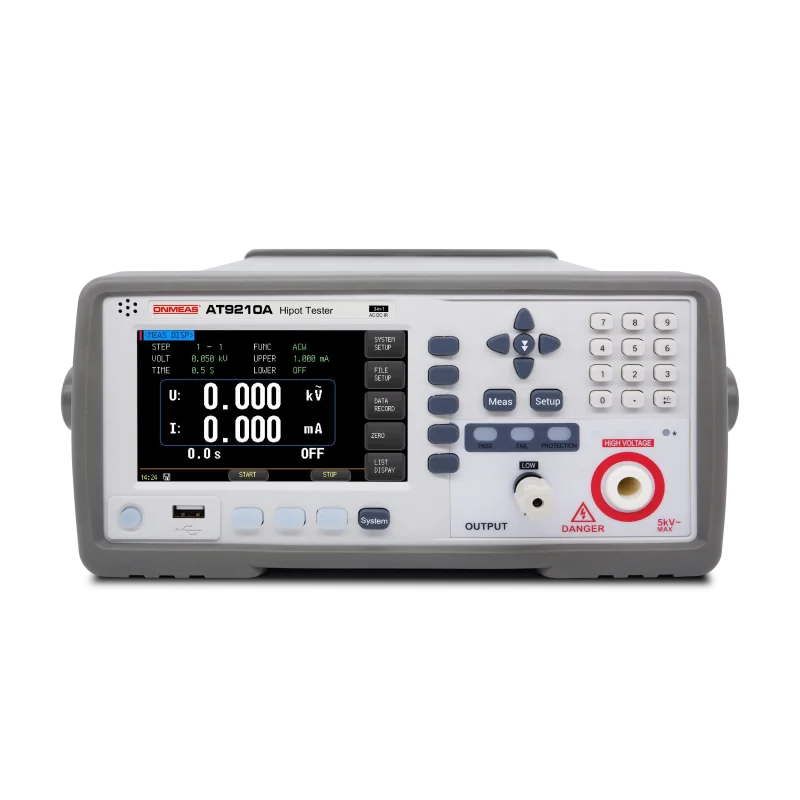

Parameter	AT9210A	AT9220A
Basic Information
Channels	Single Channel
Test Functions	AC Withstanding, DC Withstanding
Interfaces	RS232/Handler
Arc Detection	9 levels (AC/DC)
Other Functions	List Settings, Discharge Function, 5-inch True Color LCD + Touch Screen
AC Withstand Voltage
Rated Output	AC 5.000kV/20mA
Output Voltage	0.050kV-5.000kV AC, Resolution: 1V
Voltage Accuracy	2% of reading + 5 digits
Voltage Regulation	2% of reading + 5V (No Load to Full Load)
Output Frequency	50Hz or 60Hz Selectable
Measurement Current	0.001mA-20.00mA, Resolution: 0.001/0.01
Current Accuracy	2% × Reading + 5 digits
Voltage Rise Time	0.1s-999.9s
Test Time	0.2s-999.9s
Voltage Fall Time	0.1s-999.9s
DC Withstand Voltage
Rated Output	DC 6kV/5mA
Output Voltage	0.050kV-6.000kV DC, Resolution: 1V
Voltage Accuracy	2% of reading + 5 digits
Voltage Regulation	2% of reading + 5V
Current Measurement	0.1μA-10.000mA
Current Accuracy	2% of reading + 5 digits
Voltage Rise Time	0.1s-999.9s
Test Time	0.2s-999.9s
Voltage Fall Time	0.1s-999.9s
Insulation Resistance
Rated Output	—
Output Voltage	—
Voltage Accuracy	—
Measurement Range	—
General Parameters
Dimensions	Instrument Dimensions	270mm (W) × 130mm (H) × 450mm (D)
Package Dimensions	—
Weight	Net Weight	8kg
Gross Weight	—
Power Requirements	Voltage: 110VAC~220VAC, Frequency: 47Hz~63Hz, Power: 300VA
Interfaces	RS232/Handler
Others	Standard Configuration: AC 5V/20mA, DC 6kV/10mA; Accessories: ATL900E Withstanding Test Lead, ATL108 Communication Cable, ATL900E-1 High Voltage Test Probe

Parameter

AT9210A

AT9220A

Basic Information

Channels

Single Channel

Test Functions

AC Withstanding, DC Withstanding

Interfaces

RS232/Handler

Arc Detection

9 levels (AC/DC)

Other Functions

List Settings, Discharge Function, 5-inch True Color LCD + Touch Screen

AC Withstand Voltage

Rated Output

AC 5.000kV/20mA

Output Voltage

0.050kV-5.000kV AC, Resolution: 1V

Voltage Accuracy

2% of reading + 5 digits

Voltage Regulation

2% of reading + 5V (No Load to Full Load)

Output Frequency

50Hz or 60Hz Selectable

Measurement Current

0.001mA-20.00mA, Resolution: 0.001/0.01

Current Accuracy

2% × Reading + 5 digits

Voltage Rise Time

0.1s-999.9s

Test Time

0.2s-999.9s

Voltage Fall Time

0.1s-999.9s

DC Withstand Voltage

Rated Output

DC 6kV/5mA

Output Voltage

0.050kV-6.000kV DC, Resolution: 1V

Voltage Accuracy

2% of reading + 5 digits

Voltage Regulation

2% of reading + 5V

Current Measurement

0.1μA-10.000mA

Current Accuracy

2% of reading + 5 digits

Voltage Rise Time

0.1s-999.9s

Test Time

0.2s-999.9s

Voltage Fall Time

0.1s-999.9s

Insulation Resistance

Rated Output

—

Output Voltage

—

Voltage Accuracy

—

Measurement Range

—

General Parameters

Dimensions

Instrument Dimensions

270mm (W) × 130mm (H) × 450mm (D)

Package Dimensions

—

Weight

Net Weight

8kg

Gross Weight

—

Power Requirements

Voltage: 110VAC~220VAC, Frequency: 47Hz~63Hz, Power: 300VA

Interfaces

RS232/Handler

Others

Standard Configuration: AC 5V/20mA, DC 6kV/10mA; Accessories: ATL900E Withstanding Test Lead, ATL108 Communication Cable, ATL900E-1 High Voltage Test Probe
