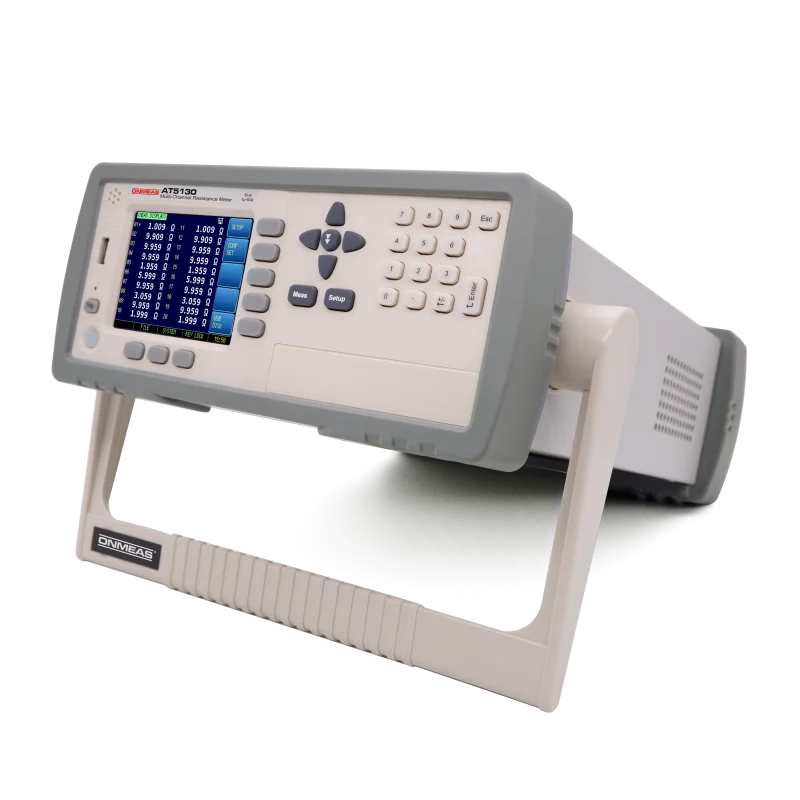

30-Channel DC Low Resistance Tester
AT5130 is a newly designed high-precision, wide-range, multi-channel resistance tester capable of scanning and testing up to 30 resistance channels. It features a high-performance ARM microprocessor for precise control. The true-color 3.5-inch LCD simultaneously displays resistance values for all 30 channels, and each channel can be individually configured with comparators.
The AT5130 can measure resistances from 1μΩ to 300KΩ with a display count of 30,000. It also includes built-in temperature compensation functionality to accommodate various testing requirements.
Designed for automation equipment, the AT5130 is equipped with a HANDLER interface (PLC interface) for GD/NG signal output and an RS-232C interface supporting SCPI and Modbus protocols. It integrates seamlessly into automated sorting systems for fully automated production line testing, enhancing production automation capabilities!
