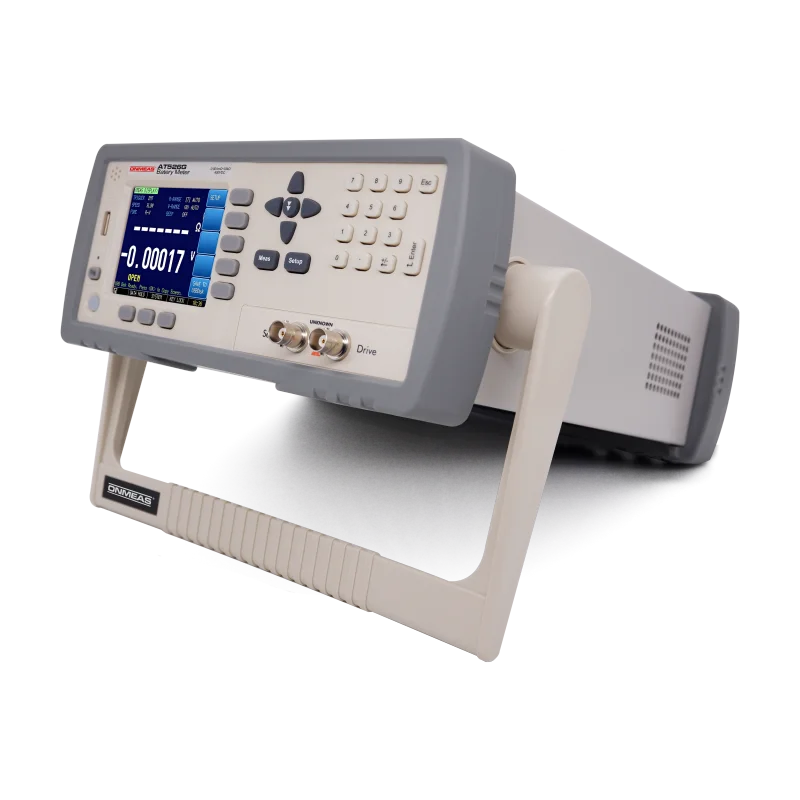

AT526G

Fuel Cell Tester

The AT526 series is a newly designed high-precision, high-stability battery tester. It can quickly and accurately measure the voltage and internal resistance of UPS lead-acid batteries (and virtually all battery types) under operating conditions. It is also optimized for high-voltage internal resistance measurement of fuel cells. The internal signal source enhances anti-interference performance, significantly reducing interference from fuel cell load devices, ensuring stable testing even under high-current test conditions.

The AT526 series is a high-performance, intelligent instrument widely used for fuel cells, lead-acid batteries, lithium batteries, button cells, contact resistance, battery voltage, and battery internal resistance testing. It features professional sorting functions and beep settings, suitable for automatic sorting systems to complete fully automated production line testing.

The AT526G measures resistance from 0.001mΩ to 33.000kΩ and DC voltage from 0.0001V to 400.000V over 7 ranges, with resistance accuracy of 0.5% and voltage accuracy of 0.02%. It comes standard with RS-232C, USB, and Handler (PLC) interfaces supporting the SCPI protocol. Using the Onmeas data acquisition software with database functionality and Excel export, it enables efficient remote control, data acquisition, and analysis.
