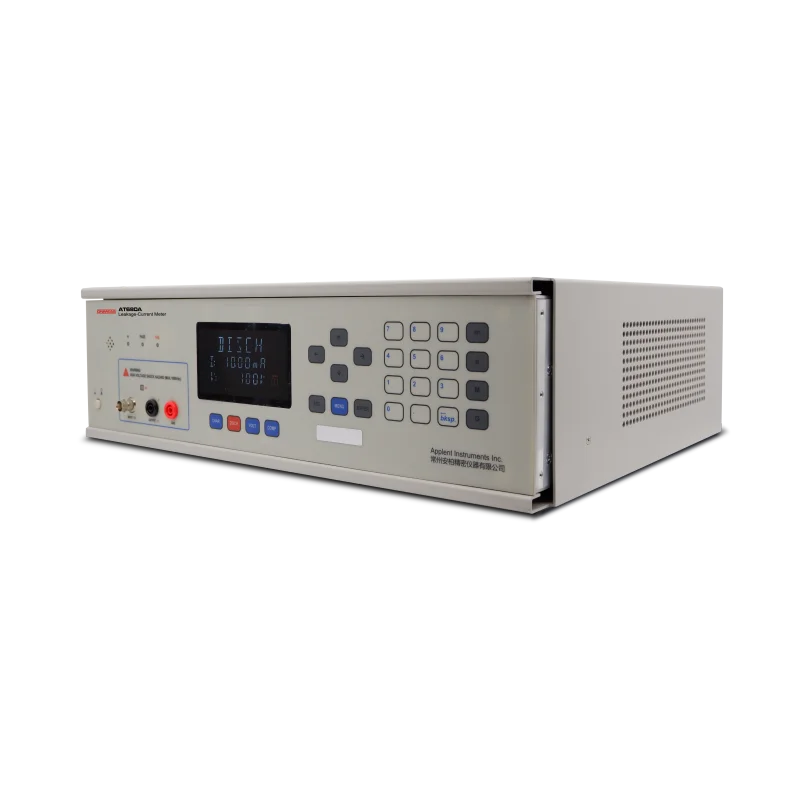

AT680A

Leakage Current Tester

The AT680A is a super capacitor leakage current tester controlled by a high-performance microprocessor. It features digitally controlled test voltage from 1.000V to 10.000V, 2A charging current, and four-range testing that improves leakage current accuracy to 1%. It can measure currents from 0.001μA to 200mA with a display capacity of 9999 digits. The test speed reaches up to 55 readings per second while maintaining 1999 readings and 5% accuracy, providing an ideal solution for high-speed automated production.

The instrument features sorting functions with audible alert settings, and can be equipped with a Handler interface for use in automatic sorting systems to complete fully automated production line testing.

The built-in RS232C interface enables remote control and data acquisition and analysis.
