AT3816A LCR Digital Bridge

CategoryBenchtop LCR Digital Bridge SeriesAT38XX Series

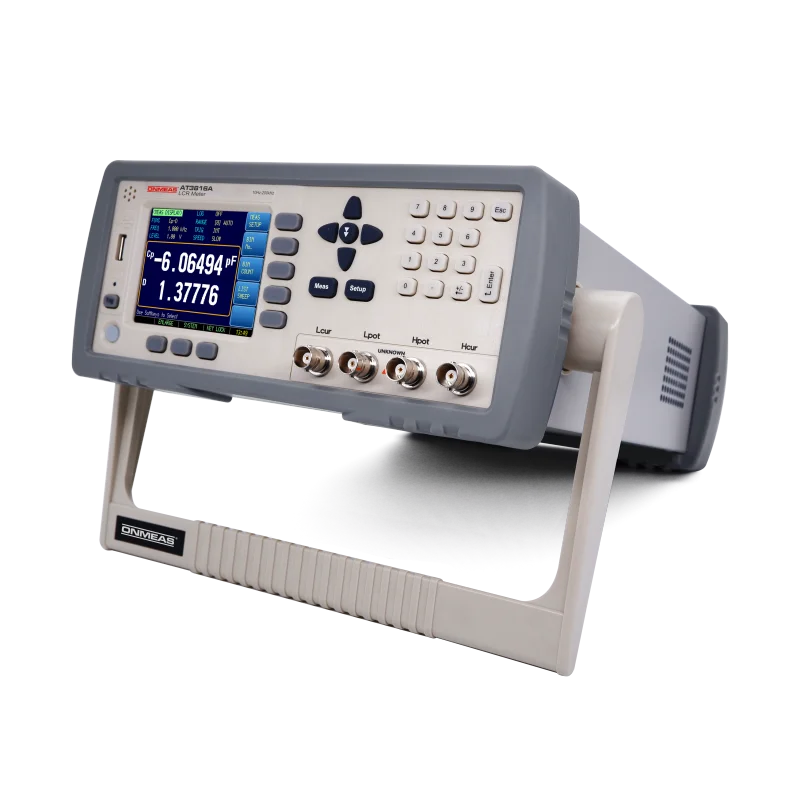

The newly designed AT3816A features a true-color TFT-LCD display with a full Chinese operation interface (configurable to English). Large font display for more intuitive readings.

AT3816A adopts continuous frequency points from 10Hz to 200kHz with a resolution of 0.001Hz. Test signal level: 0.01Vrms~2.00Vrms, 100.0μA-20.00mA, pure DC signal source DCR measurement and internal DC bias ±2.5V, with optional external bias

AT3816A can test 4 parameters of components simultaneously, each parameter can be freely configured, achieving full 6-digit display for all four primary and secondary parameters. It can scan 10 frequencies or level lists, and allows calibration of 3 user-defined frequencies for improved accuracy.

Built-in 14-bin comparator for automatic component sorting via HANDLER interface combined with PLC.

The instrument comes standard with RS232, RS485, and USB interfaces, supports SCPI and Modbus protocols, and can be optionally equipped with a GPIB interface.

Inquire now Report incorrect product information

Parameter	AT3816A
Basic Test Parameters
Measurement Parameters	Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, R-X, Z-θrad, Z-θdeg, DCR
Basic Accuracy	0.05% ±5 digits
Test Frequency	10Hz～200kHz (continuous frequency points, resolution 0.001Hz)
Test Range	Auto, Manual, and Nominal, 9 ranges
Test Speed	40 readings/s, 10 readings/s, 3 readings/s
Output Impedance	30Ω, 50Ω and 100Ω
Signal Level	10.00mV~2.00V AC 100.0μA~20.00mA AC
Monitor Parameters	Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
Readings	All parameters 6 digits full: 999999
Display Range	L	0.00001μH-9999.99H
C	0.00001pF – 9999.99mF
R, X, Z	0.00001Ω - 99.9999MΩ
D	0.00001 – 9.99999
Q	0.00001 – 99999.9
Δ%	-999999% - 999999%
θ(deg)	-179.999° - 179.999°
θ(rad)	-3.14159 – 3.14159
DCR	0.00001Ω ~ 99.9999MΩ
Equivalence & Bias
Equivalent Mode	Series and parallel equivalent
DC Bias	-2.5V~+2.5V (0.5%+0.005V)
Measurement Functions
Average Count	1~256
Trigger Mode	Internal, Manual, External, and Remote
Trigger Delay	0.01ms~60s
Comparator	14-bin sorting, 10 PASS bins, 1 FAIL bin, 1 AUX bin Bin count: 999999
List Sweep	10 steps (frequency, voltage and current)
Comparison Mode	Sequential/Absolute Deviation/Relative Deviation
Calibration	Open circuit zero, short circuit zero (sweep frequency and spot frequency)
File	Internal storage: 10 files External USB storage: 10 files
Data Logging	9999 groups of files (.csv)
Beeper Function	Off/Pass/Fail
Other Functions	Auto LCZ
General Parameters
Dimensions	Instrument Dimensions	264(W)×107(H)×350(D)mm
Package Dimensions	-
Weight	Net Weight	4kg
Gross Weight	-
Power Requirements	Voltage: 90V-260V, Frequency: 50Hz-60Hz, Power: 30VA
Interface	RS232C, Handler interface, USB disk interface (standard)
Communication Protocol	SCPI/Modbus
Other	Auto LCZ, key lock, save 999 LCD screens, trigger delay
