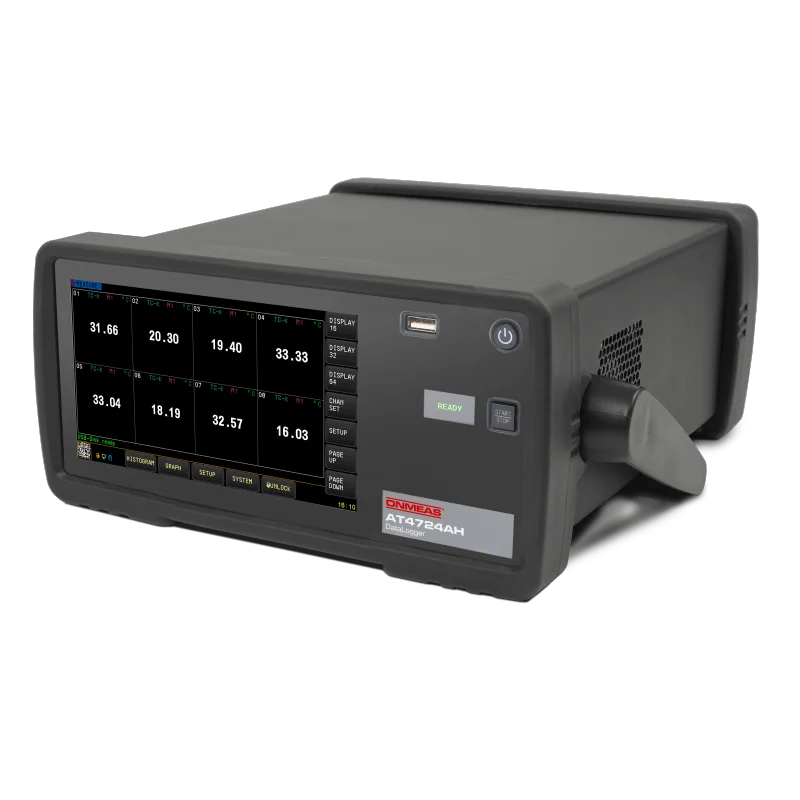

AT4724AH Multi-channel Temperature Tester High Voltage Live Testing Version

The AT47AH series has been upgraded to the AT47AH series, representing an iterative upgrade within the same series. The instrument features high-performance ARM9 microprocessor control and real-time high-speed data acquisition. The newly upgraded touch full-mirror panel utilizes Anbai's 9th generation ATOS operating system, supporting both Chinese and English interfaces for intuitive operation, easier use, and greater intelligence.

The newly designed AT47AH series comes standard with a massive 64GB internal memory, communication-mapped USB drive, and real-time FPGA circuitry that overcomes sampling rate limitations. Combined with high-efficiency, high-precision analog circuits, it achieves both high-precision and ultra-high-speed sampling, with test temperature resolution improved to 0.01°C. The instrument features channel isolation voltage of 2000VDC and 1000VAC (complete isolation of digital and analog signals), making it suitable for complex systems requiring simultaneous monitoring of temperature and voltage, such as new energy and automation control applications.

The instrument includes built-in LAN interface, RS232, USB-232, and VCOM virtual serial ports. The RS-232 and USB-232 interfaces support Modbus (RTU) protocol, while the LAN port supports Modbus (TCP) protocol. This enables computer-based instrument control and data acquisition, effectively applied to remote control and data collection and analysis.

The instrument supports USB communication, allowing data acquisition, analysis, and printing through the included computer software. It also supports USB disk storage for real-time storage of sampling data. Users can perform independent calibration for each channel.
