AT51X2

2-Channel Parallel DC Low Resistance Tester

CategoryMulti-Channel DC Low Resistance Tester SeriesAT51X Series

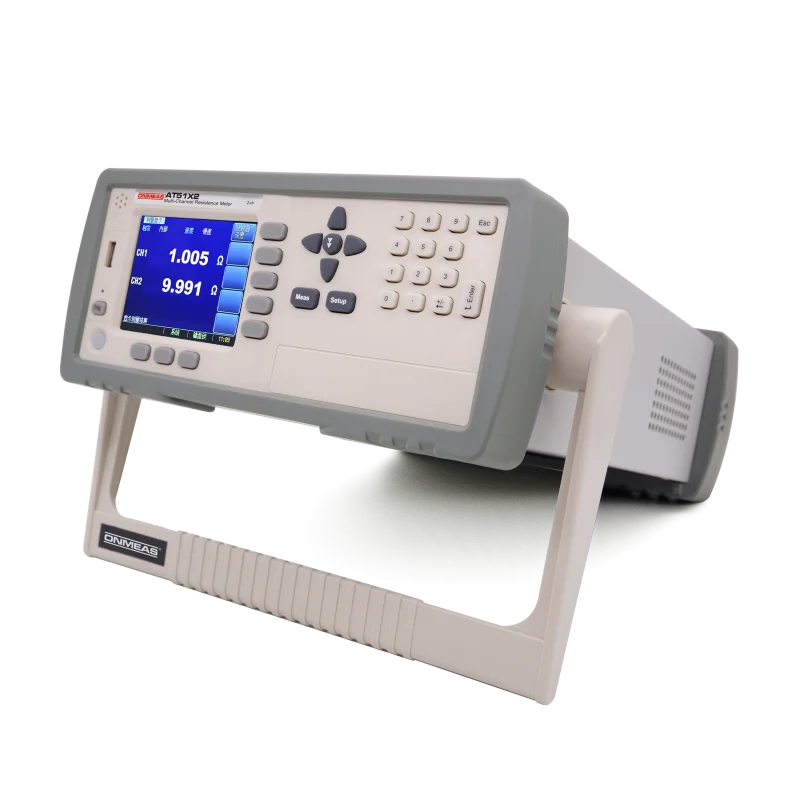

AT51X2 is a newly designed high-precision, wide-range multi-channel resistance tester for parallel measurement, capable of testing two resistance channels simultaneously.

It is controlled by a high-performance ARM microprocessor. The 3.5-inch true-color LCD display can show resistance values for all 8 channels simultaneously, and each channel can be configured with individual comparators.

Designed for automation equipment, it features RS-232C and HANDLER interfaces for OK/NG signal output, enhancing automated production testing capabilities.

Inquire now Report incorrect product information

AT51X2

2-Channel Parallel DC Low Resistance Tester

CategoryMulti-Channel DC Low Resistance Tester SeriesAT51X Series

AT51X2 is a newly designed high-precision, wide-range multi-channel resistance tester for parallel measurement, capable of testing two resistance channels simultaneously.

Designed for automation equipment, it features RS-232C and HANDLER interfaces for OK/NG signal output, enhancing automated production testing capabilities.

Specifications

Parameter		AT51X2
Technical Parameters
Number of Channels		2 channels (Parallel measurement)
Measurement Parameters		DC Low Resistance
Basic Accuracy		0.05%
Measurement Range		1μΩ～30kΩ
Signal Source	Maximum Current	1μA~1A
Signal Source	Current Mode	Auto
Range		Auto range, Manual range, Nominal range
Measurement Speed		30ms/channel (Manual range)
Display Results		2 channels direct reading
Maximum Reading		30,000
Calibration		Full-range short circuit zero calibration
Comparator		2 channels independently configurable
Trigger Mode		Internal trigger, External trigger, Manual trigger, Remote trigger
Temperature Compensation		Accuracy: 0.2°C, Measuring range: 0～80°C
Test Terminals		4-terminal shielded (including 2 sense terminals and 2 drive terminals)
Contact Check Function		Supported
General Parameters
Dimensions	Instrument Dimensions	Approx. 216×88×323 (W×H×D) mm
Dimensions	Package Dimensions	Approx. 400mm × 200mm × 400mm
Weight	Net Weight	Approx. 5kg
Weight	Gross Weight	Approx. 6kg
Power Requirements		Voltage: 220VAC, Frequency: 50Hz, Power: 20VA

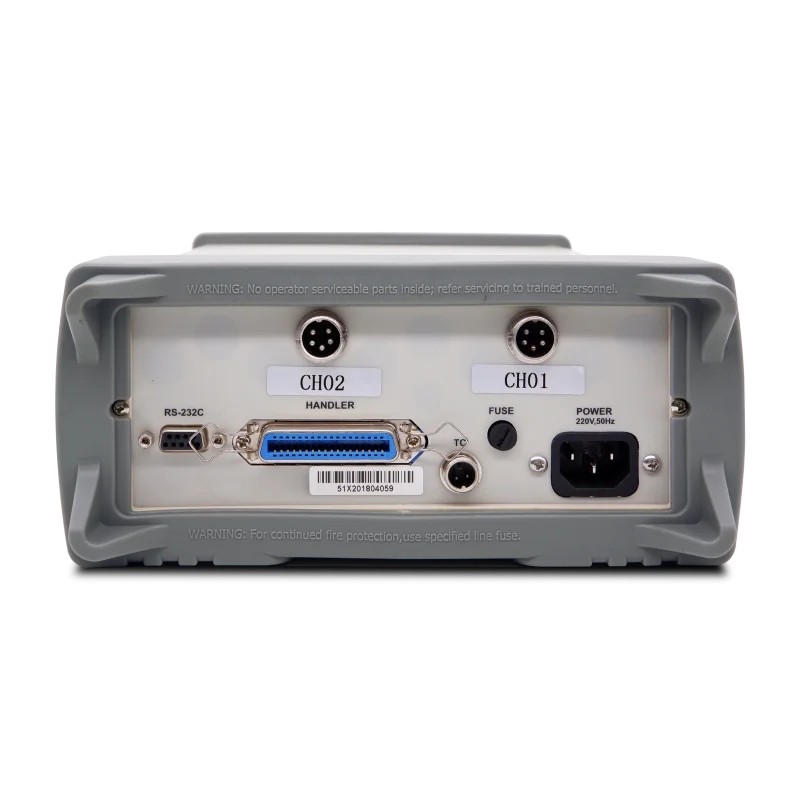

Interface		RS-232C interface (SCPI command set), HANDLER interface (PLC interface), USB interface, Temperature compensation interface
Other		Supports SCPI/Modbus protocol, true-color LCD display, adjustable resistance upper/lower limits, temperature compensation function, keyboard lock
