AT5800
AT5800 Battery Comprehensive Tester
Home
Product Categories
Battery Tester
Battery Internal Resistance Tester
AT5800
AT5800(英)正

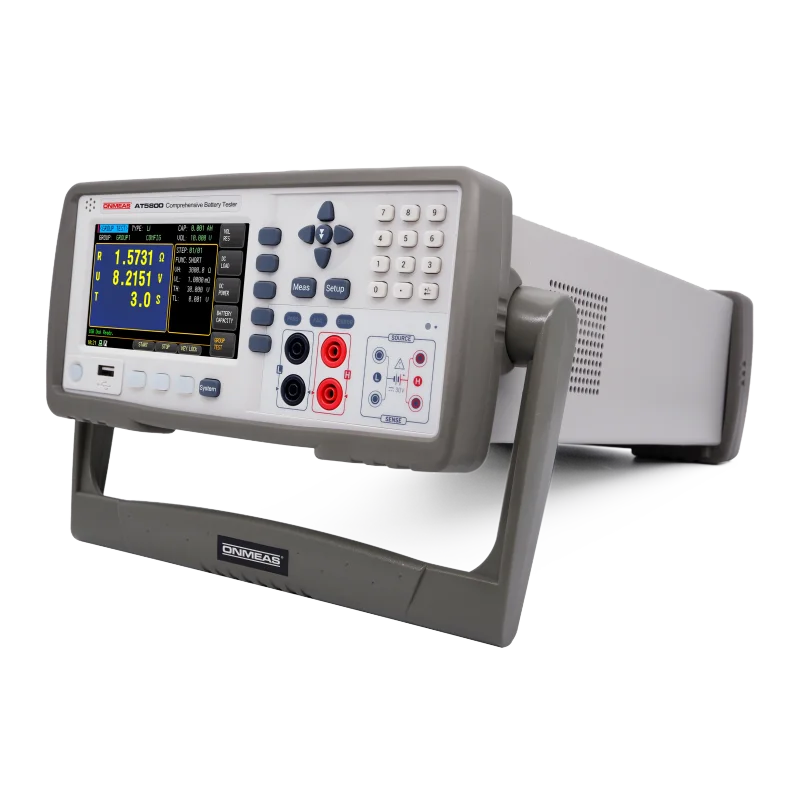

AT5800(英)侧

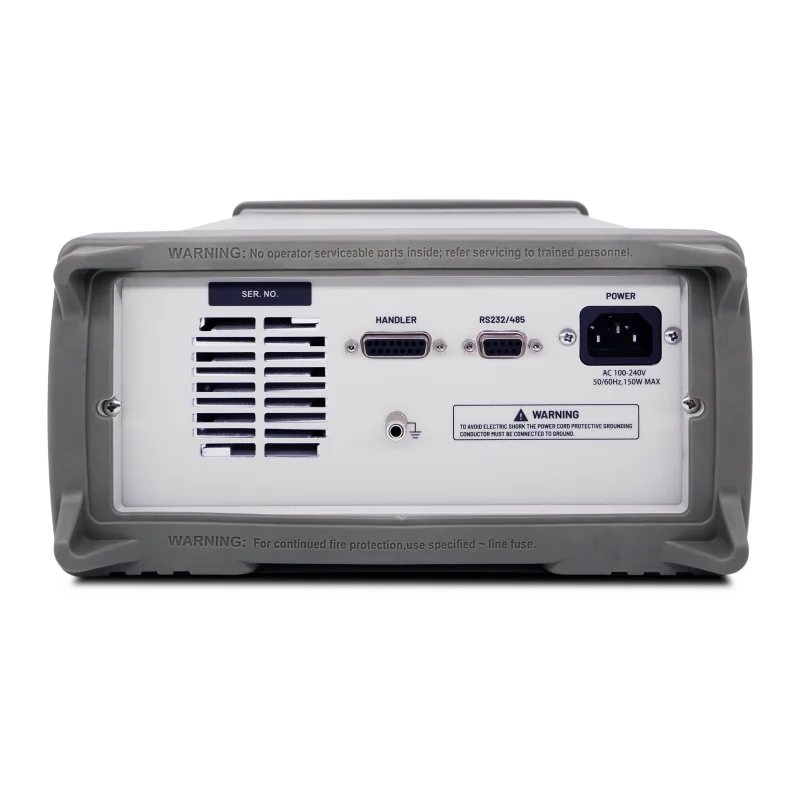

AT5800背面
AT5800

AT5800 Battery Comprehensive Tester

CategoryBattery Internal Resistance Tester

The AT5800 is a high-performance battery comprehensive tester controlled by an advanced ARM microprocessor, delivering exceptional speed and performance.

With its sleek design, the AT5800 provides fast and stable testing for lithium-ion, NiMH, NiCd, and lead-acid battery performance evaluation.

The instrument offers five test functions: programmable DC power supply, DC electronic load, battery internal resistance test, battery capacity test, and comprehensive test.


The comprehensive test function enhances testing efficiency, allowing a single unit to complete battery charge/discharge, AC/DC voltage and internal resistance, overcharge/overdischarge, and other routine tests.

Rich interfaces and communication protocols meet the integration requirements of automated equipment, effortlessly handling various industrial testing scenarios.

Inquire nowReport incorrect product information

Specifications

ParameterAT5800
Internal AC Internal Resistance Test
Accuracy0.5%
Test Range0.0001mΩ–300.00Ω, 6 ranges auto or manual
Signal SourceAC 1kHz, 20ppm
Test SpeedSlow: 3/s, Fast: 20/s
ZeroingFull-range short-circuit zero calibration
Internal Battery Voltage Test
Accuracy0.01%
Measurement Range0.00001V–80.0000VDC, 2 ranges auto or manual
Internal Programmable Power Supply
Rated Output30V, 5A, 100W
Voltage Resolution0.01V
Current Resolution0.001A
Power Resolution0.01W
Ripple Voltage<5mVrms
Ripple Current<5mArms
Load RegulationVoltage<0.01%+3mV
Current<0.01%+3mA
Line RegulationVoltage<0.01%+3mV
Current<0.01%+3mA
Programming AccuracyVoltage<0.05%+10mV
Current<0.1%+2mA
Readback AccuracyVoltage<0.05%+10mV
Current<0.1%+2mA
Internal DC Electronic Load
Rated Input30V, 15A, 100W
Constant Current (CC)0-3AResolution: 0.0001A; Accuracy: ±0.1%±6 digits
0-15AResolution: 0.001A; Accuracy: ±0.2%±6 digits
Constant Voltage (CV)0–30V: Resolution: 0.001V; Accuracy: ±0.05%, ±6 digits
Constant Power (CP)0–100W: Resolution: 0.1W; Accuracy: ±1%, ±2 digits
Constant Resistance (CR)0–4kΩ: Resolution: 1Ω; Accuracy: ±1%, ±2 digits
Short Circuit TestCurrent: ≈15A
Battery Capacity Test
Capacity Test Range0.001–9999.9AH, resolution 0.001AH
1C Charge/Discharge3–4 hours
Comprehensive Performance Test
Static TestTest all functions: 2s
Battery ActivationWake battery from sleep or over-discharge protection state
Voltage and Internal Resistance4-wire test for accurate measurement of battery static voltage and AC internal resistance
Charging TestCharge battery, measure actual voltage after test time, and compare
Overcharge TestCharge with user-set step current and step time, detect whether current is cut off, obtain charge protection current, verify overcurrent protection function
DC Internal Resistance TestLoad module applies set current, measures no-load and load voltage, calculates DC internal resistance. Range: 0–1000mΩ
Discharge TestDischarge battery, measure actual voltage after test time, compare with set value
Over-discharge TestDischarge with set step current and step time, detect whether current is cut off, obtain discharge protection current, compare with set value, verify overcurrent protection function
Short Circuit TestApply high current load within set time to simulate short circuit, detect whether current is cut off, obtain short circuit protection time, compare with set value. Time resolution: 0.1ms
Recovery TestAfter short circuit, overcharge, or over-discharge tests, battery may be in protection state; recovery test determines whether battery has returned to normal
General Parameters
Trigger ModeInternal, external (including manual and remote trigger)
DimensionsInstrument Dimensions300mm (W) × 130mm (H) × 420mm (D)
Package Dimensions-
WeightNet Weight5kg
Gross Weight-
Power RequirementsVoltage: 200V–240VAC, Frequency: 47.5–52.5Hz, Power: 120VA
InterfaceHandler, RS-232
Communication ProtocolSCPI protocol
Others5-inch TFT-LCD true-color display, touchscreen

Related Attachments

View All

Related Documents

View All

  • AT5800 用户手册

    .pdf4.63 MB简体中文

    AT5800 用户手册

    User Manual

Related Software

View All
    No related software

Related Videos

View All

  • AT5800 综合电池测试 操作视频

    .mp492.9 MB简体中文

    AT5800 综合电池测试 操作视频演示

    Operation Video

Related Solutions

Comprehensive Battery Test Solution for State Grid Monitoring Equipment
New Energy Battery

Comprehensive Battery Test Solution for State Grid Monitoring Equipment

Battery Measurement

Video monitoring equipment on State Grid transmission lines is usually deployed in remote field areas and mostly powered by solar panels plus storage batteries. Such equipment generally uses LiFePO4/lithium batteries and endures high-low temperature cycling, day-night temperature differences and occasional consecutive rainy days all year round. In practice, capacity fade, increased internal resistance or failures caused by protection board faults are common; traditional manual multimeter testing only obtains static voltage and cannot accurately assess the battery's true state of health (SOH) and actual load capability. Introducing the professional AT5800 comprehensive battery tester for standardized, all-round testing of spare parts incoming inspection and repaired batteries therefore has important practical significance.
