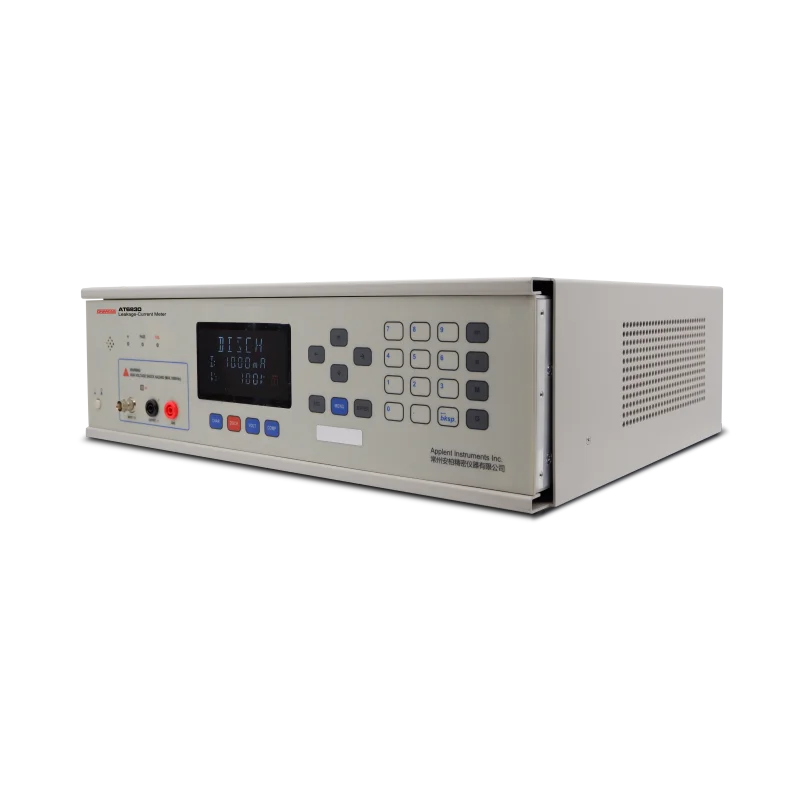

The AT6830 is an insulation resistance tester controlled by a high-performance microprocessor.
It features a pre-charge power supply and an independent test power supply, with six-range testing that enables an insulation resistance measurement range from 50KΩ to 500GΩ, and a display reading of 9999 counts.
Dedicated version for capacitor sorting machines.
| Parameter | AT6830 | |
|---|---|---|
| Leakage Current & Insulation Resistance Measurement | ||
| Number of Channels | Single Channel | |
| Measurement Parameters | Insulation Resistance | |
| Output Voltage | 50V, 100V, 250V, 400V, 500V | |
| Test Range | 50kΩ~500GΩ; 50V: 50kΩ~50GΩ; 100V: 100kΩ~100GΩ; 250V: 250kΩ~250GΩ; 400V: 400kΩ~400GΩ; 500V: 500kΩ~500GΩ | |
| Basic Accuracy | <10G: 3%, ≥10G: 5%, ≥100G: 10% | |
| Pre-charge Power Supply | 50V, 100V, 250V, 400V, 500V (Adjustable) | |
| Max Charging Current | Test Voltage Source: 150mA ± 15mA, Pre-charge Voltage Source: 500mA ± 50mA | |
| Reading | 9999 | |
| Range | Auto and Manual | |
| Test Speed | 55 times/s, 15 times/s, 3 times/s | |
| Correction | Full-range open circuit zeroing | |
| Display Result | Direct reading, current, resistance, peak value, and sorting results | |
| Charging Timer | - | |
| Charging Current | 0.5A max | |
| Comparator | 1 set of records, HI/LO failure alarm | |
| General Parameters | ||
| Dimensions | Instrument Size | 445mm(W) × 129mm(H) × 351mm(D) |
| Package Size | - | |
| Weight | Net Weight | 8kg |
| Gross Weight | - | |
| Power Requirements | Voltage: 198VAC~240VAC, Frequency: 50Hz, Power: 200VA | |
| Interface | RS-232C Interface, Handler Interface | |
| Communication Protocol | SCPI | |
| Other | Pre-charge Power Supply: 50V, 100V, 250V, 400V, 500V (Adjustable) 0.5A max; Capacitor open circuit detection function; Sorting machine dedicated; Accessories: ATL507: Test Clip, ATL801: RS232 Interface Cable | |
