| Number of Channels | Single Channel |
|---|
| Measurement Parameters | Insulation Resistance |
|---|
| Output Voltage | 50V, 100V, 250V, 400V, 500V | 100V, 250V, 500V, 750V, 1000V |
|---|
| Test Range | 50kΩ~500GΩ; 50V: 50kΩ~50GΩ; 100V: 100kΩ~100GΩ; 250V: 250kΩ~250GΩ; 400V: 400kΩ~400GΩ; 500V: 500kΩ~500GΩ | 25kΩ~1TΩ: 100V: 100kΩ~100GΩ; 250V: 250kΩ~250GΩ; 500V: 500kΩ~500GΩ; 750V: 750kΩ~750GΩ; 1000V: 1000MΩ~1000GΩ |
|---|
| Basic Accuracy | <10G: 3%, ≥10G: 5%, ≥100G: 10% |
|---|
| Pre-charge Power Supply | 50V, 100V, 250V, 400V, 500V (Adjustable) | 100V, 250V, 500V, 750V, 1000V (Adjustable) |
|---|
| Max Charging Current | Test Voltage Source: 150mA ± 15mA, Pre-charge Voltage Source: 500mA ± 50mA | Test Voltage Source: 150mA ±15mA, Pre-charge Voltage Source: 500mA ±50mA |
|---|
| Reading | 9999 |
|---|
| Range | Auto and Manual |
|---|
| Test Speed | 55 times/s, 15 times/s, 3 times/s | 55/sec, 15/sec, 3/sec |
|---|
| Correction | Full-range open circuit zeroing | Full-range Open Circuit Zeroing |
|---|
| Display Result | Direct reading, current, resistance, peak value, and sorting results | Direct Reading, Current, Resistance, Peak Value, and Sorting Result |
|---|
| Charging Timer | - |
|---|
| Charging Current | 0.5A max |
|---|
| Comparator | 1 set of records, HI/LO failure alarm | 1 Set of Records, HI/LO Fail Audible Alert |
|---|
| Dimensions | Instrument Size | 445mm(W) × 129mm(H) × 351mm(D) |
|---|
| Package Size | - |
|---|
| Weight | Net Weight | 8kg |
|---|
| Gross Weight | - |
|---|
| Power Requirements | Voltage: 198VAC~240VAC, Frequency: 50Hz, Power: 200VA |
|---|

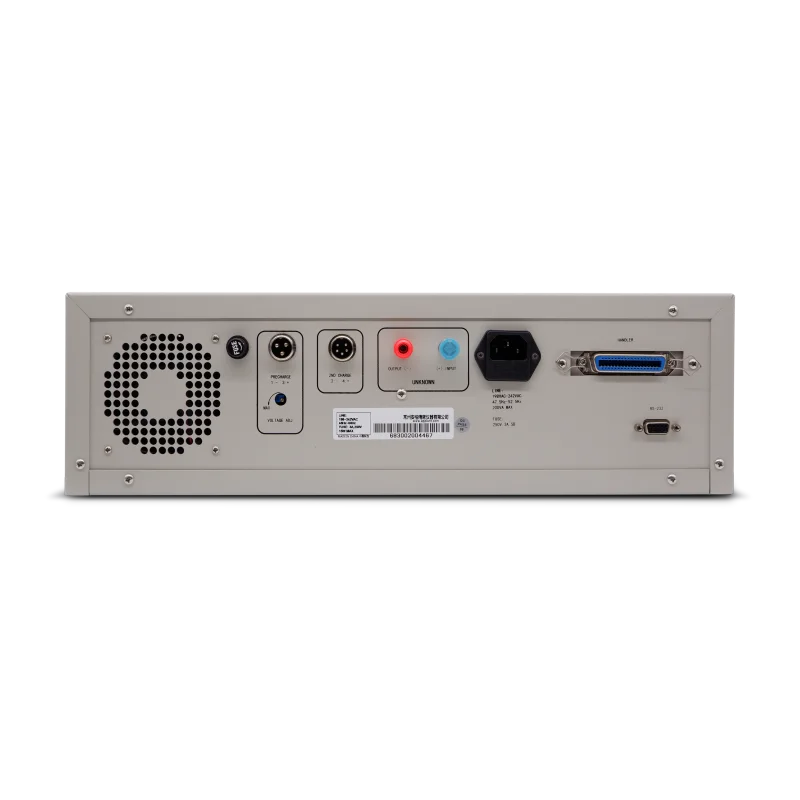

| Interface | RS-232C Interface, Handler Interface |
|---|
| Communication Protocol | SCPI | SCPI Protocol |
|---|
| Other | Pre-charge Power Supply: 50V, 100V, 250V, 400V, 500V (Adjustable) 0.5A max; Capacitor open circuit detection function; Sorting machine dedicated; Accessories: ATL507: Test Clip, ATL801: RS232 Interface Cable | Pre-charge Power Supply: 50V, 100V, 250V, 400V, 500V (Adjustable) 0.5A max; Capacitor Open Circuit Detection; Dedicated for Sorting Machines; Accessories: ATL507 Test Clip, ATL801 RS232 Interface Cable |
|---|
