ATH9006Series

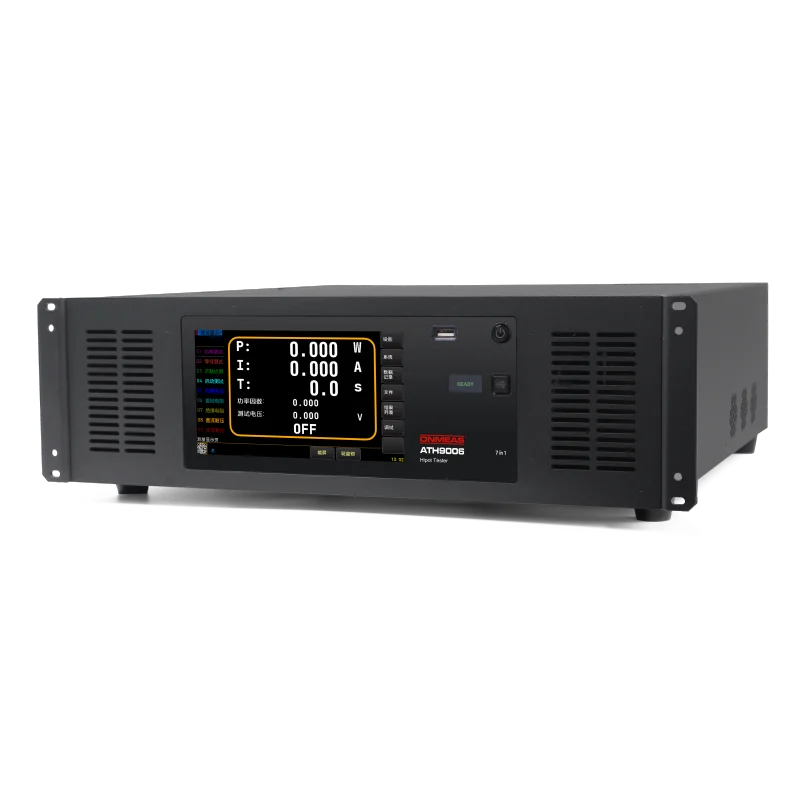

Comprehensive Electrical Safety Tester

Contains 1 products CategoryComprehensive Safety Analyzer

The ATH9006 comprehensive electrical safety tester is a multi-function, high-performance and highly reliable electrical safety tester providing seven test functions — AC withstand voltage, DC withstand voltage, insulation, grounding, leakage, AC power and start-up — with 1.5% measurement accuracy and simultaneous display of multiple measurement parameters.

The system uses an ARM processor and a 10-inch high-definition TFT touch LCD for fast, accurate parameter measurement, and provides Handler and RS-232 interfaces to meet different test communication requirements.

The ATH9006 is mainly used for safety testing in industries such as electric vehicles, power grids, photovoltaics, home appliances, information equipment and medical devices, providing solutions for a wide range of electrical measurements.

View series products

Inquire now Report incorrect product information

Parameter	ATH9006
Basic Information
Test Functions	AC/DC Withstanding Voltage, Insulation Resistance, Grounding Resistance, Leakage Current, AC Power, Startup (optional)
Interfaces	RS-232/RS-485/USB/Handler; External Remote Control / Alarm Light Interface
Standard Configuration	Tri-color alarm light; Remote switch with external start/stop signal support
Protection Functions	Over-voltage, Over-current
Other Functions	9" Color LCD
AC Withstand Voltage
Rated Output	5kV AC, 100mA
Actual Output Power	500VA
Output Voltage	100 to 5000VAC (Resolution: 1V)
Voltage Accuracy	±(1.5% of set value + 3V)
Output Frequency	50Hz / 60Hz
Measurement Current	0.002 to 9.999mA / 100.00mA (Resolution: 0.001mA / 0.01mA)
Current Accuracy	1.5% × Reading + 0.01mA
Voltage Rise Time	1s to 999s
Test Time	1s to 999s
Voltage Fall Time	1s to 999s
DC Withstand Voltage
Rated Output	6kV DC / 10mA
Actual Output Power	60VA
Output Voltage	100V to 6kV DC (Resolution: 1V)
Voltage Accuracy	±(1.5% of set value + 3V)
Current Accuracy	2% × Reading + 0.01mA
Voltage Rise Time	1s to 999s
Test Time	1s to 999s
Voltage Fall Time	1s to 999s
Insulation Resistance
Rated Output	1kV / 10GΩ
Output Voltage	100V to 1000V (Resolution: 1V)
Voltage Accuracy	±(1.5% of set value + 3V)
Measurement Range	0.1MΩ to 10GΩ
Resistance Accuracy	100-499V: 1MΩ to 16GΩ ±(5% Reading + 0.5MΩ), 1GΩ to 10GΩ for reference only; 500-1000V: <100MΩ to 1GΩ ±(3% Reading + 2MΩ), 1GΩ to 10GΩ ±(10% Reading + 5MΩ)
Test Time	1s to 999s
Grounding Resistance
Rated Output	2.0 to 40A, 10.0 to 600mΩ
Output Current	40A
Output Voltage	<12V
Frequency	50Hz / 60Hz
Test Time	1s to 999s
Leakage Current
Test Voltage Output	Single-phase (requires external isolation transformer and variable frequency power supply)
Test Type	G-L, G-N, AUTO (G-L, G-N)
AC Voltage Measurement	60.0V to 300.0V (Resolution: 0.1V, Accuracy: 1.5% × Reading + 3V)
AC Current Measurement	0.000mA to 20.00mA (Resolution: 0.001mA / 0.01mA, Accuracy: ±(1.5% Reading + 5 digits))
Test Time	1s to 999s
AC Power
Test Voltage Output	Single-phase (requires external isolation transformer and variable frequency power supply)
AC Voltage Measurement	60.0V to 300.0V (Resolution: 0.1V, Accuracy: ±(0.25% × Reading + 0.25% × Range))
AC Current Measurement	0 to 30A (Resolution: 0.001A / 0.01A, Accuracy: ±(0.25% × Reading + 0.25% × Range))
Active Power Measurement	0 to 6000W (Resolution: 0.1W / 1W, Accuracy: ±(0.25% × Reading + 0.25% × Range))
Test Time	1s to 999s
Startup Function
AC Voltage Measurement	60.0V to 300.0V (Resolution: 0.1V, Accuracy: ±(0.25% Reading + 0.25% Range))
AC Current Measurement	0 to 30A
Current Setting Range	Upper limit: 0.001 to 30.00A, Lower limit: 0.000 to 30.00A
General Parameters
Dimensions	Instrument Dimensions	470 × 133 × 491 mm
Package Dimensions	-
Weight	Net Weight	30 kg
Gross Weight	-
Power Requirements	220V to 240V AC, 47.5 to 52.5Hz, 300VA
Interfaces	RS-232/RS-485/USB/Handler; External Remote Control / Alarm Light Interface
Others	9" Color LCD

Parameter

ATH9006

Basic Information

Test Functions

AC/DC Withstanding Voltage, Insulation Resistance, Grounding Resistance, Leakage Current, AC Power, Startup (optional)

Interfaces

RS-232/RS-485/USB/Handler; External Remote Control / Alarm Light Interface

Standard Configuration

Tri-color alarm light; Remote switch with external start/stop signal support

Protection Functions

Over-voltage, Over-current

Other Functions

9" Color LCD

AC Withstand Voltage

Rated Output

5kV AC, 100mA

Actual Output Power

500VA

Output Voltage

100 to 5000VAC (Resolution: 1V)

Voltage Accuracy

±(1.5% of set value + 3V)

Output Frequency

50Hz / 60Hz

Measurement Current

0.002 to 9.999mA / 100.00mA (Resolution: 0.001mA / 0.01mA)

Current Accuracy

1.5% × Reading + 0.01mA

Voltage Rise Time

1s to 999s

Test Time

1s to 999s

Voltage Fall Time

1s to 999s

DC Withstand Voltage

Rated Output

6kV DC / 10mA

Actual Output Power

60VA

Output Voltage

100V to 6kV DC (Resolution: 1V)

Voltage Accuracy

±(1.5% of set value + 3V)

Current Accuracy

2% × Reading + 0.01mA

Voltage Rise Time

1s to 999s

Test Time

1s to 999s

Voltage Fall Time

1s to 999s

Insulation Resistance

Rated Output

1kV / 10GΩ

Output Voltage

100V to 1000V (Resolution: 1V)

Voltage Accuracy

±(1.5% of set value + 3V)

Measurement Range

0.1MΩ to 10GΩ

Resistance Accuracy

100-499V: 1MΩ to 16GΩ ±(5% Reading + 0.5MΩ), 1GΩ to 10GΩ for reference only; 500-1000V: <100MΩ to 1GΩ ±(3% Reading + 2MΩ), 1GΩ to 10GΩ ±(10% Reading + 5MΩ)

Test Time

1s to 999s

Grounding Resistance

Rated Output

2.0 to 40A, 10.0 to 600mΩ

Output Current

40A

Output Voltage

<12V

Frequency

50Hz / 60Hz

Test Time

1s to 999s

Leakage Current

Test Voltage Output

Single-phase (requires external isolation transformer and variable frequency power supply)

Test Type

G-L, G-N, AUTO (G-L, G-N)

AC Voltage Measurement

60.0V to 300.0V (Resolution: 0.1V, Accuracy: 1.5% × Reading + 3V)

AC Current Measurement

0.000mA to 20.00mA (Resolution: 0.001mA / 0.01mA, Accuracy: ±(1.5% Reading + 5 digits))

Test Time

1s to 999s

AC Power

Test Voltage Output

Single-phase (requires external isolation transformer and variable frequency power supply)

AC Voltage Measurement

60.0V to 300.0V (Resolution: 0.1V, Accuracy: ±(0.25% × Reading + 0.25% × Range))

AC Current Measurement

0 to 30A (Resolution: 0.001A / 0.01A, Accuracy: ±(0.25% × Reading + 0.25% × Range))

Active Power Measurement

0 to 6000W (Resolution: 0.1W / 1W, Accuracy: ±(0.25% × Reading + 0.25% × Range))

Test Time

1s to 999s

Startup Function

AC Voltage Measurement

60.0V to 300.0V (Resolution: 0.1V, Accuracy: ±(0.25% Reading + 0.25% Range))

AC Current Measurement

0 to 30A

Current Setting Range

Upper limit: 0.001 to 30.00A, Lower limit: 0.000 to 30.00A

General Parameters

Dimensions

Instrument Dimensions

470 × 133 × 491 mm

Package Dimensions

Weight

Net Weight

30 kg

Gross Weight

Power Requirements

220V to 240V AC, 47.5 to 52.5Hz, 300VA

Interfaces

RS-232/RS-485/USB/Handler; External Remote Control / Alarm Light Interface

Others

9" Color LCD
