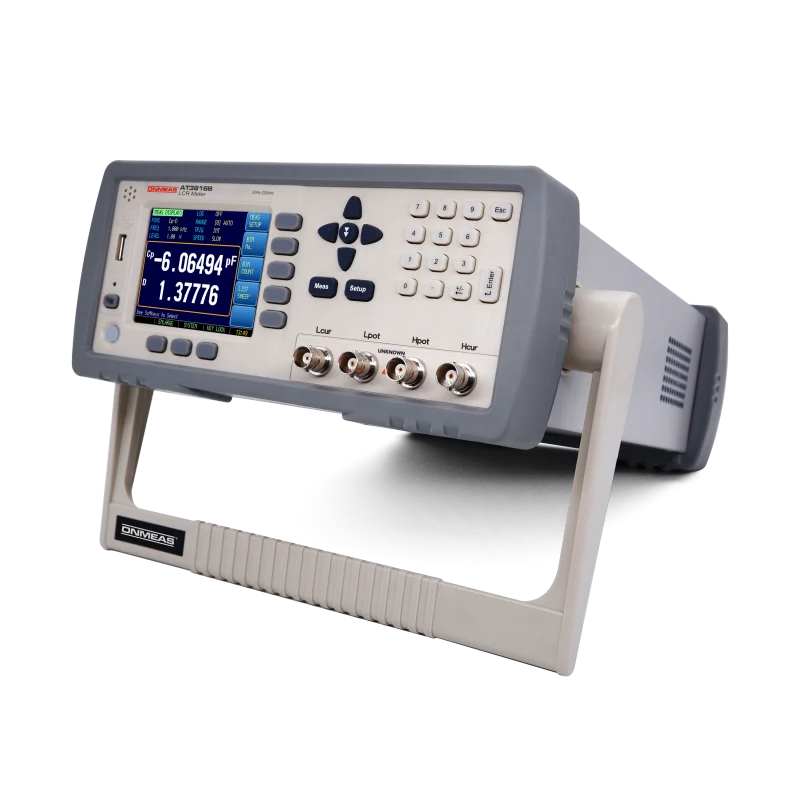

AT3816B

LCR Meter

The newly designed AT3816B features a true-color TFT-LCD display with a full Chinese operation interface (configurable to English). Large font display for more intuitive readings.

AT3816B adopts 37 frequency points from 10Hz to 200kHz with a resolution of 0.001Hz. Test signal level: 0.01Vrms~2.00Vrms, 100.0μA-20.00mA, pure DC signal source DCR measurement and internal DC bias ±2.5V, with optional external bias

AT3816B can test 4 parameters of components simultaneously, each parameter can be freely configured, achieving full 6-digit display for all four primary and secondary parameters. It can scan 10 frequencies or level lists, and allows calibration of 3 user-defined frequencies for improved accuracy.

Built-in 14-bin comparator for automatic component sorting via HANDLER interface combined with PLC.

The instrument comes standard with RS232, RS485, and USB interfaces, supports SCPI and Modbus protocols, and can be optionally equipped with a GPIB interface.
