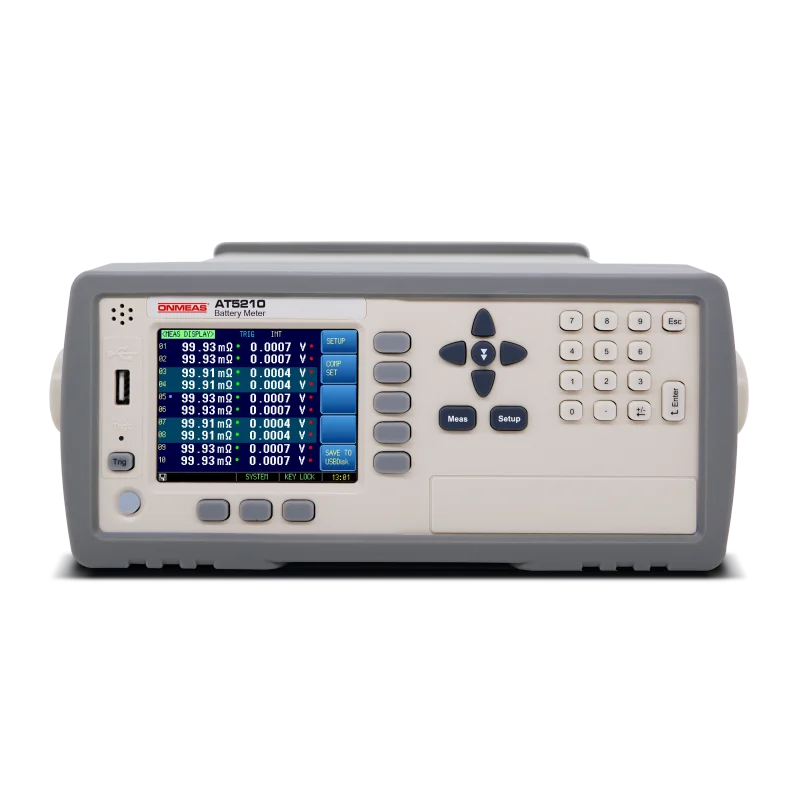

| Number of Channels | 10 Channels | 20 channels |
|---|
| Test Parameters | AC Resistance, DC Voltage | AC resistance, DC voltage |
|---|
| Measurement Range | Internal Resistance Test Range | 0.01mΩ~3.3000kΩ | 0.01mΩ–3.3000kΩ |
|---|
| Voltage Test Range | 0.0001V~60.000VDC | 0.0001V–60.000VDC |
|---|
| Basic Accuracy | Resistance: 0.5% Voltage: 0.05% | Resistance: 0.5%, Voltage: 0.05% |
|---|
| Signal Source | AC 1kHz, Test Current: <150mA | AC 1kHz, test current: <150mA |
|---|
| Range | Three ranges auto and manual | 3 ranges, auto and manual |
|---|
| Test Speed | Fast 10 channels/2s, Medium 10 channels/3s, Slow 10 channels/4.5s | Fast: 10ch/2s, Medium: 10ch/3s, Slow: 10ch/4.5s |
|---|
| Display Results | Direct reading, ΔABS, Δ%, θ, Sorting results | Direct reading, ΔABS, Δ%, θ, sorting result |
|---|
| Maximum Reading | Resistance: 33,000 Voltage: 60,000 | Resistance: 33,000, Voltage: 60,000 |
|---|
| Calibration | Short circuit zero calibration across all ranges | Full-range short-circuit zero correction |
|---|
| Comparator | RHI/RNG/RLO output, VHI/VNG/VLO output, Absolute tolerance ±TOL sorting, Percentage tolerance %TOL sorting, Sequential comparison sorting | RHI/RNG/RLO output, VHI/VNG/VLO output, absolute tolerance ±TOL sorting, percentage tolerance %TOL sorting, sequential comparison sorting |
|---|
| Trigger | Internal trigger, Manual trigger, External trigger, Remote trigger | Internal trigger, manual trigger, external trigger, and remote trigger |
|---|
| Wire Break Detection | - |
|---|

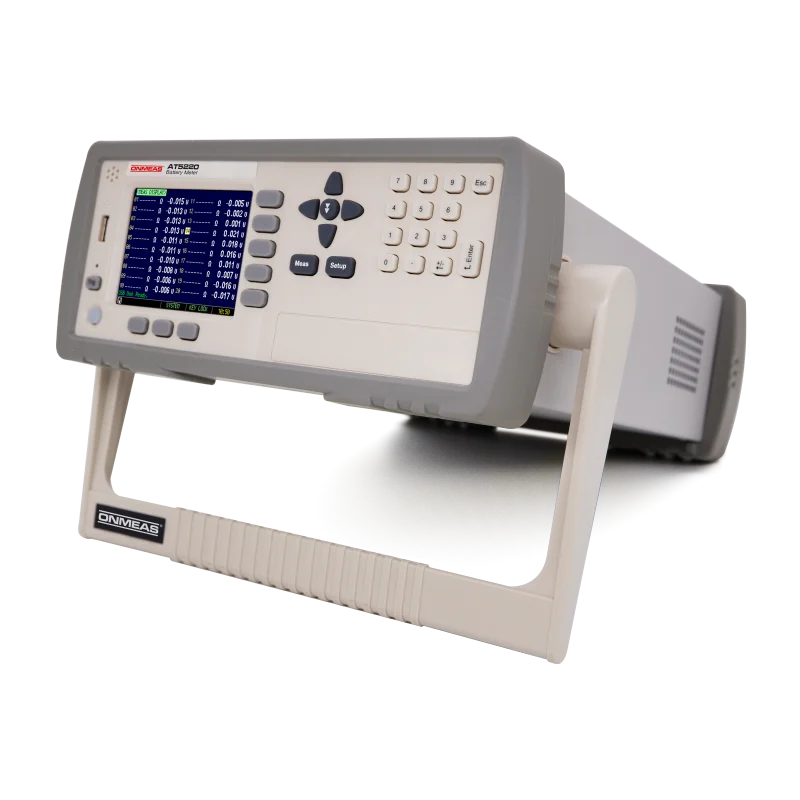

| Dimensions | Instrument Dimensions | 264mm(W)×107mm(H)×350mm(D) | 264mm (W) × 107mm (H) × 350mm (D) |
|---|
| Package Dimensions | - |
|---|
| Weight | Net Weight | 4kg |
|---|
| Gross Weight | - |
|---|
| Power Requirements | Voltage: 220VAC, Frequency: 50Hz, Power: 20VA |
|---|

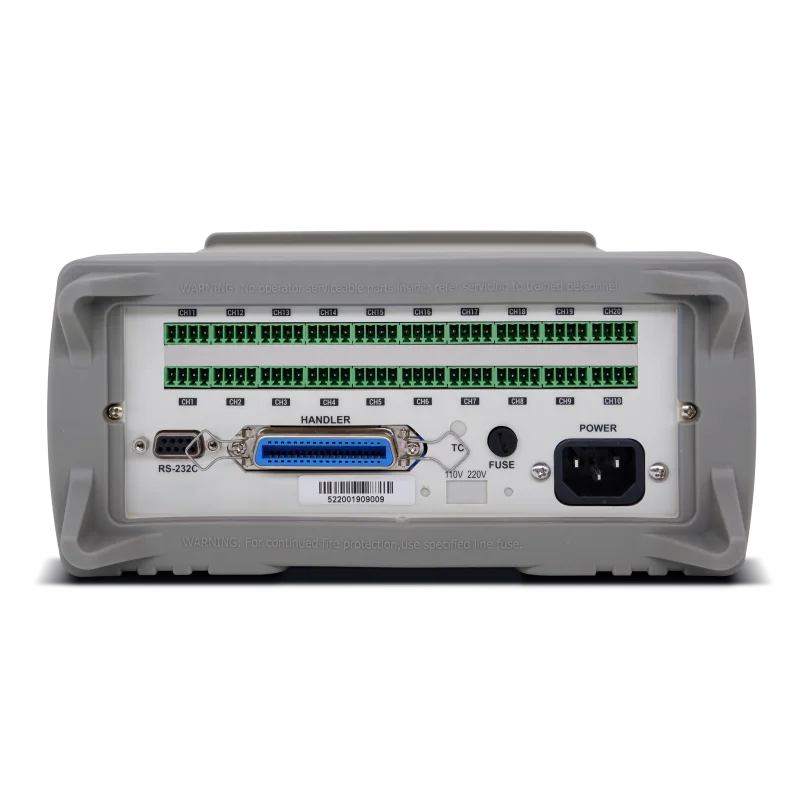

| Interface | RS-232C interface, Handler interface (PLC interface) |
|---|
| Communication Protocol | SCPI |
|---|
| Other | True-color TFT-LCD display, Key lock and data hold function, Internal flash memory and USB drive data logging; Accessories: ATL503DZ2 with clip 1pc, ATL503DZ2 without clip 20pcs, ATL108 RS232 interface cable | True-color TFT-LCD display, keyboard lock and data hold function, internal flash and USB drive data recording; Accessories: 1× ATL503DZ2 with clips, 20× ATL503DZ2 without clips, 1× ATL108 RS232 interface cable |
|---|
