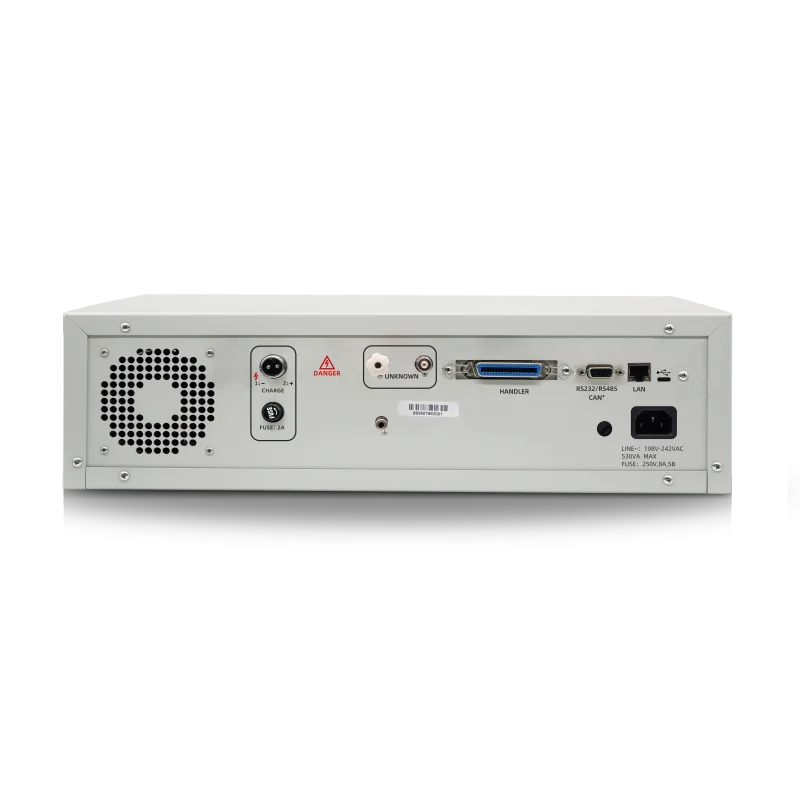

AT693XSeries

Insulation Resistance Tester

Contains 3 products CategoryInsulation Resistance Tester

The AT693X series insulation resistance tester is controlled by a new-generation high-performance ARM microprocessor and is a fully automatic real-time instrument. It uses a full-colour 5-inch capacitive touch LCD and a full numeric keypad together with the Onmeas A9 operating system for clearer display and more convenient operation.

The instrument has a built-in 1000 V voltage source with power up to 500 W and 1 A constant-current charging, making it better suited to insulation resistance measurement of capacitors.

The newly upgraded intelligent constant-current control power supply senses the output voltage and dynamically adjusts the constant-current output, with a maximum charging current of 1 A and up to 1000 VDC. Six-range testing extends the insulation resistance measurement range to 10 kΩ to 1 TΩ with up to 9999 display counts and measurement speeds up to 30 readings per second. Improvements for large-capacity capacitors such as power capacitors and electrolytic capacitors make automatic measurement of all kinds of capacitors easy.

View series products

Inquire now Report incorrect product information

Parameter	AT6937	AT6937A	AT6936
Leakage Current & Insulation Resistance Measurement
Number of Channels	1 Channel (Test power: 500W)	1 Channel (Test Power Supply 1000W)	1 Channel (Test power: 500W)
Measurement Parameters	Insulation Resistance
Output Voltage	25V (Custom), 50V (Custom), 100V, 250V, 350V, 400V, 500V, 600V, 750V, 800V, 900V, 1000VDC	50V, 100V, 250V, 400V, 500V
Basic Accuracy	100kΩ~1TΩ (Customizable 25kΩ/50kΩ~1TΩ)	Slow Range: Resistance: <1G: ±1%, ≥1G: ±3%, ≥10G: ±5%, ≥100G: ±10%	50V: 50kΩ~50GΩ; 100V: 100kΩ~100GΩ; 250V: 250kΩ~250GΩ; 400V: 400kΩ~400GΩ; 500V: 500kΩ~500GΩ
Test Range	Within slow range, Resistance: <1G: ±1%, ≥1G: ±3%, ≥10G: ±5%, ≥10G: ±10%	100kΩ~1TΩ (Customizable 25kΩ/50kΩ~1TΩ)	Within slow range, Resistance: <1M: ±5%, ≥1M: ±1%, ≥1G: ±3%, ≥10G: ±5%
Reading	9999
Range	Auto and Manual
Test Speed	55 readings/s, 15 readings/s, 3 readings/s	55/sec, 15/sec, 3/sec	55 readings/s, 15 readings/s, 3 readings/s
Correction	Full range open circuit zeroing	Full-range Open Circuit Zeroing	Full range open circuit zeroing
Display Result	Direct reading, current, resistance, peak value and sorting result	Direct Reading, Current, Resistance, Peak Value, and Sorting Result	Direct reading, current, resistance, peak value and sorting result
Charging Timer	-
Charging Current	0.5A max
Comparator	1 set of records, HI/LO failure alarm	1 Set of Records, HI/LO Fail Audible Alert	1 set of records, HI/LO failure alarm
General Parameters
Dimensions	Instrument Size	445mm(W) x 129mm(H) x 351mm(D)	445mm(W) × 129mm(H) × 351mm(D)	445mm(W) x 129mm(H) x 351mm(D)
Package Size	-
Weight	Net Weight	8kg
Gross Weight	-
Power Requirements	Voltage: 198VAC~240VAC, Frequency: 50Hz, Power: 200VA
Interface	RS-232C, RS-485, TYPE-C, Handler, LAN, USB
Communication Protocol	-
Other	Capacitor open circuit detection function Capacitor sorting machine special Accessories: ATL507: Test clip, ATL801: RS232 communication cable	Capacitor Open Circuit Detection; Dedicated for Sorting Machines; Accessories: ATL507 Test Clip, ATL801 RS232 Interface Cable	Capacitor open circuit detection function Capacitor sorting machine special Accessories: ATL507 test clip, ATL108 RS232 communication cable

Parameter

AT6937

AT6937A

AT6936

Leakage Current & Insulation Resistance Measurement

Number of Channels

1 Channel (Test power: 500W)

1 Channel (Test Power Supply 1000W)

1 Channel (Test power: 500W)

Measurement Parameters

Insulation Resistance

Output Voltage

25V (Custom), 50V (Custom), 100V, 250V, 350V, 400V, 500V, 600V, 750V, 800V, 900V, 1000VDC

50V, 100V, 250V, 400V, 500V

Basic Accuracy

100kΩ~1TΩ (Customizable 25kΩ/50kΩ~1TΩ)

Slow Range: Resistance: <1G: ±1%, ≥1G: ±3%, ≥10G: ±5%, ≥100G: ±10%

50V: 50kΩ~50GΩ; 100V: 100kΩ~100GΩ; 250V: 250kΩ~250GΩ; 400V: 400kΩ~400GΩ; 500V: 500kΩ~500GΩ

Test Range

Within slow range, Resistance: <1G: ±1%, ≥1G: ±3%, ≥10G: ±5%, ≥10G: ±10%

100kΩ~1TΩ (Customizable 25kΩ/50kΩ~1TΩ)

Within slow range, Resistance: <1M: ±5%, ≥1M: ±1%, ≥1G: ±3%, ≥10G: ±5%

Reading

9999

Range

Auto and Manual

Test Speed

55 readings/s, 15 readings/s, 3 readings/s

55/sec, 15/sec, 3/sec

55 readings/s, 15 readings/s, 3 readings/s

Correction

Full range open circuit zeroing

Full-range Open Circuit Zeroing

Full range open circuit zeroing

Display Result

Direct reading, current, resistance, peak value and sorting result

Direct Reading, Current, Resistance, Peak Value, and Sorting Result

Direct reading, current, resistance, peak value and sorting result

Charging Timer

Charging Current

0.5A max

Comparator

1 set of records, HI/LO failure alarm

1 Set of Records, HI/LO Fail Audible Alert

1 set of records, HI/LO failure alarm

General Parameters

Dimensions

Instrument Size

445mm(W) x 129mm(H) x 351mm(D)

445mm(W) × 129mm(H) × 351mm(D)

445mm(W) x 129mm(H) x 351mm(D)

Package Size

Weight

Net Weight

8kg

Gross Weight

Power Requirements

Voltage: 198VAC~240VAC, Frequency: 50Hz, Power: 200VA

Interface

RS-232C, RS-485, TYPE-C, Handler, LAN, USB

Communication Protocol

Other

Capacitor open circuit detection function Capacitor sorting machine special Accessories: ATL507: Test clip, ATL801: RS232 communication cable

Capacitor Open Circuit Detection; Dedicated for Sorting Machines; Accessories: ATL507 Test Clip, ATL801 RS232 Interface Cable

Capacitor open circuit detection function Capacitor sorting machine special Accessories: ATL507 test clip, ATL108 RS232 communication cable
