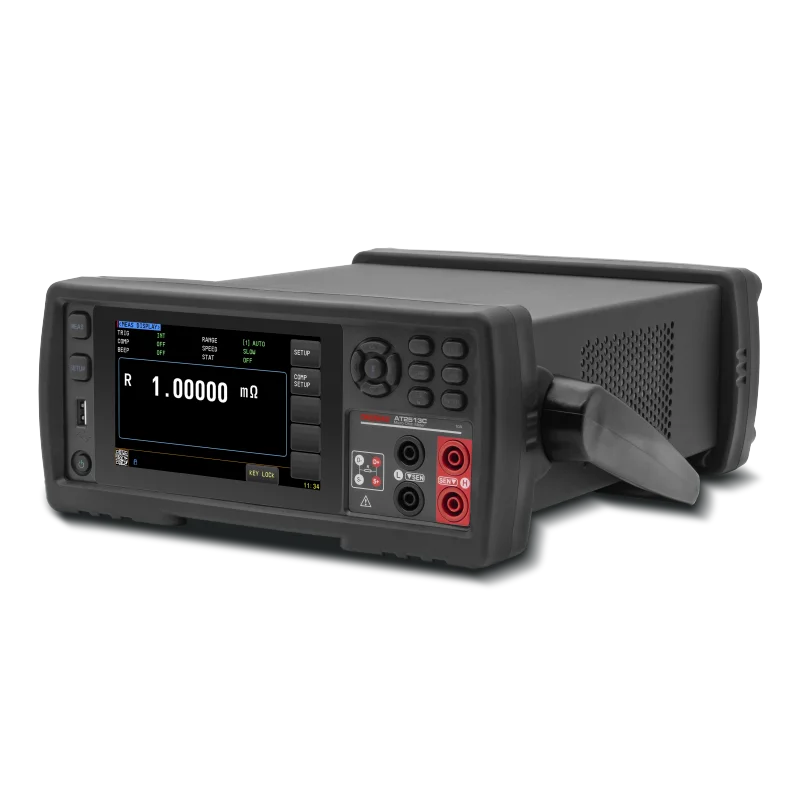

AT2513

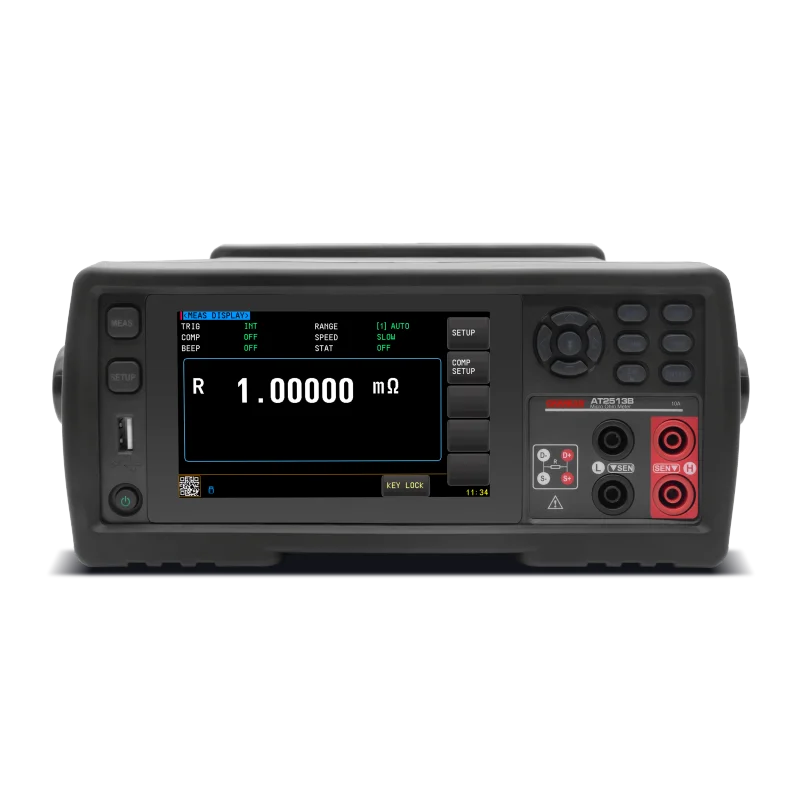

DC Ultra-Low Resistance Tester

CategorySingle-Channel DC Low Resistance Tester SeriesAT2513 Series

Product Overview

The AT2513 is a high-precision tester developed specifically for ultra-low DC resistance measurement. With a test current of 10A, it offers a measurement range of 0.01μΩ to 300.000Ω, displaying 300,000 counts, with a test accuracy of 0.02%.

It features automatic bidirectional current testing, and its pulse testing method prevents heat generation in the test loop from affecting measurement accuracy. Standard temperature compensation eliminates the impact of ambient temperature on test results.

The AT2513 provides multiple interface functions and professional sorting capabilities, making it suitable for automatic sorting systems to complete fully automated pipeline testing.

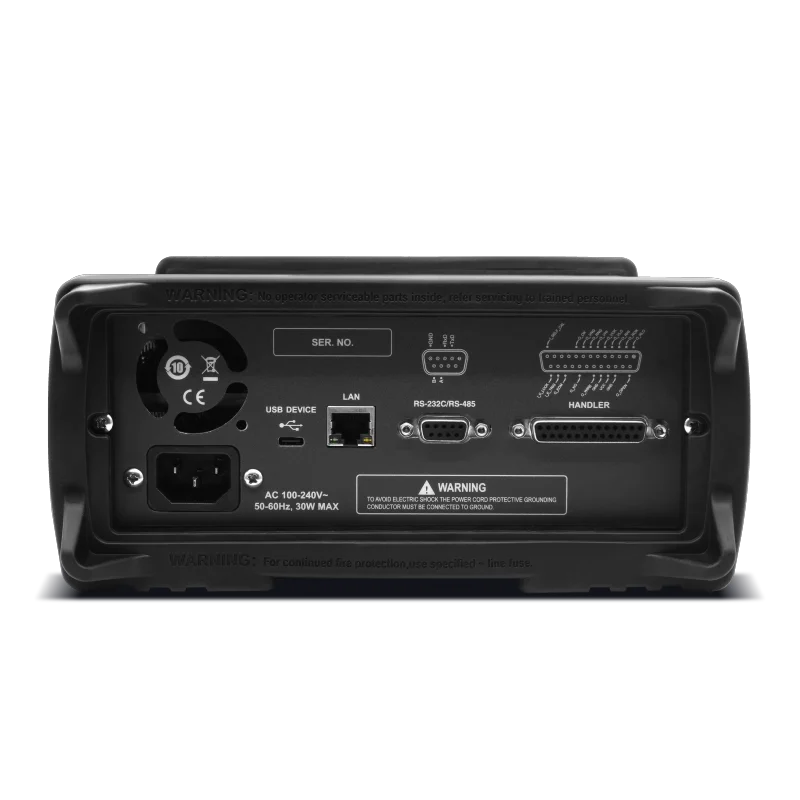

It can be equipped with RS232/RS485/LAN/USB communication interfaces and USB drive interface for convenient PC data communication and remote control.

Inquire now Report incorrect product information

Parameter		AT2513
Technical Parameters
Channels		Single Channel
Measurement Parameters		DC Resistance
Basic Accuracy		0.02% ±3 digits
Measurement Range		0.01μΩ ~ 300.000Ω
Signal Source	Maximum Current	< 10A
Signal Source	Current Mode	Pulse current, Bidirectional current
Range		Six ranges, manual and automatic
Measurement Speed		Fast 10/sec, Slow 1/sec
Display Results		Direct reading / ΔABS / Δ% and sorting results
Maximum Reading		300000
Calibration		Open and short circuit correction
Comparator		Upper limit / Lower limit / Comparator off
Trigger Mode		Internal trigger, Manual trigger, External trigger
Temperature Compensation		Accuracy: 0.2°C / Range: 0~80°C
Test Terminals		Four-terminal testing
Contact Check Function		Supported
General Parameters
Dimensions	Instrument Dimensions	264 x 107 x 350mm
Dimensions	Package Dimensions	-
Weight	Net Weight	2.5kg
Weight	Gross Weight	-
Power Requirements		Voltage: 90-250VAC, Frequency: 50/60Hz, Power: 15VA
Interface		RS232/RS485/LAN/USB Drive
Others		5-inch touchscreen; Keyboard lock and data hold function

Parameter		AT2513
Technical Parameters
Channels		Single Channel
Measurement Parameters		DC Resistance
Basic Accuracy		0.02% ±3 digits
Measurement Range		0.01μΩ ~ 300.000Ω
Signal Source	Maximum Current	< 10A
Signal Source	Current Mode	Pulse current, Bidirectional current
Range		Six ranges, manual and automatic
Measurement Speed		Fast 10/sec, Slow 1/sec
Display Results		Direct reading / ΔABS / Δ% and sorting results
Maximum Reading		300000
Calibration		Open and short circuit correction
Comparator		Upper limit / Lower limit / Comparator off
Trigger Mode		Internal trigger, Manual trigger, External trigger
Temperature Compensation		Accuracy: 0.2°C / Range: 0~80°C
Test Terminals		Four-terminal testing
Contact Check Function		Supported
General Parameters
Dimensions	Instrument Dimensions	264 x 107 x 350mm
Dimensions	Package Dimensions	-
Weight	Net Weight	2.5kg
Weight	Gross Weight	-
Power Requirements		Voltage: 90-250VAC, Frequency: 50/60Hz, Power: 15VA
Interface		RS232/RS485/LAN/USB Drive
Others		5-inch touchscreen; Keyboard lock and data hold function

DC Ultra-Low Resistance Tester

Product Overview

DC Ultra-Low Resistance Tester

Product Overview

Specifications

Related Attachments

AT2513 Kelvin Test Lead

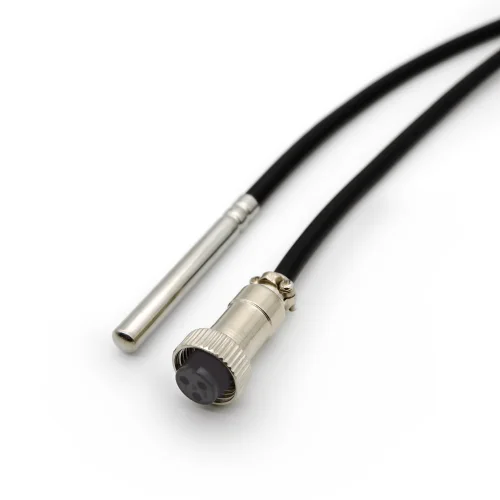

ATL18B20 Temperature Probe
