DC Ultra-Low Resistance Tester

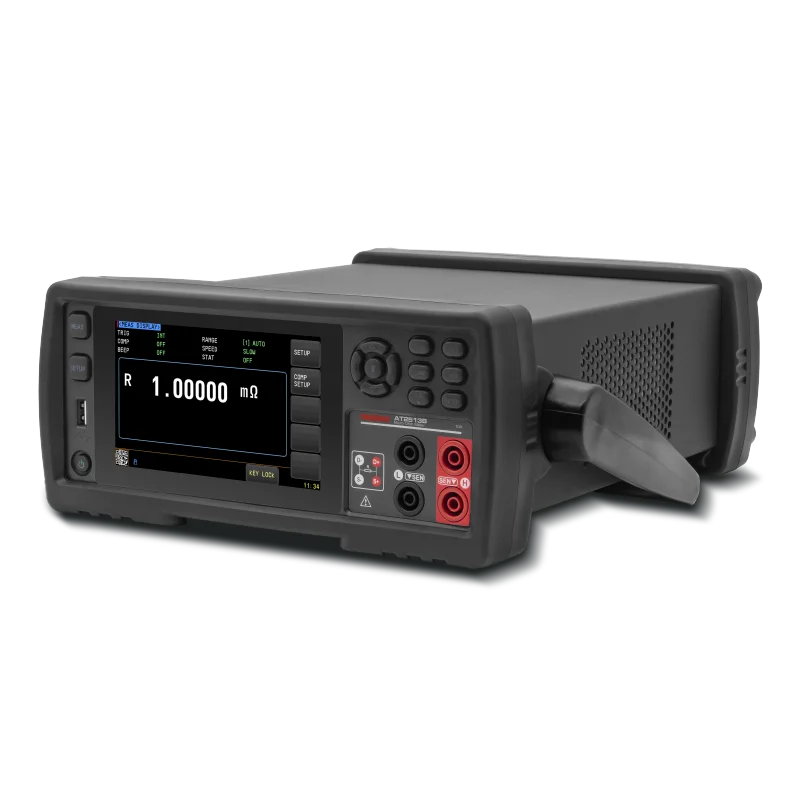

The AT2513B is a high-precision tester designed for ultra-low DC resistance measurements. It features a test current of 10A, a measurement range of 0.1μΩ to 3000.00Ω, a display resolution of 300,000 counts, and a test accuracy of 0.02%.

The automatic bidirectional current testing and pulsed measurement method prevents heat generation in the test circuit from affecting measurement accuracy. Standard temperature compensation is included to eliminate the influence of ambient temperature on test results.

The AT2513B is suitable for testing cables, materials, shunts, crimped resistors, and more.

The AT2513B provides a variety of interface functions and features professional sorting capabilities, making it ideal for integration into automated sorting systems for fully automated production line testing.

It can be equipped with RS232/RS485/LAN/USB communication interfaces and a USB drive port for convenient data communication and remote control with a PC.
