AT2513Series

DC Ultra-Low Resistance Tester

Contains 3 products CategorySingle-Channel DC Low Resistance Tester

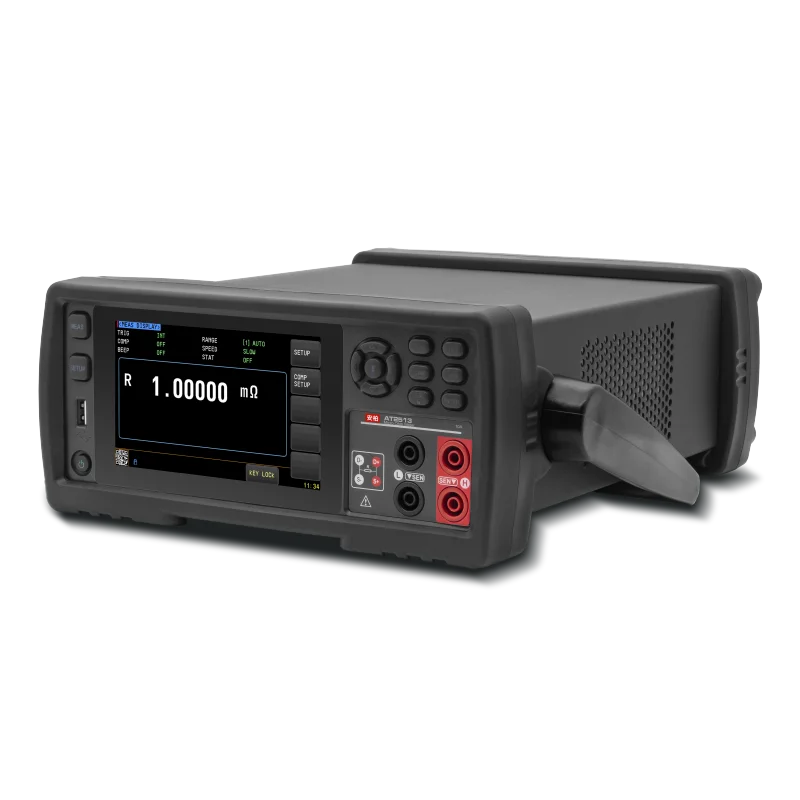

The AT2513 is a high-precision tester developed for ultra-low DC resistance. It uses a 10 A test current with a measurement range of 0.01 μΩ to 300.000 Ω, 300,000 display counts and 0.02% accuracy. Automatic bidirectional current testing and a pulsed test method prevent heat in the test loop from affecting accuracy, and temperature compensation is provided as standard to eliminate the influence of ambient temperature on test results.

The AT2513 offers multiple interfaces and professional sorting functions for automatic sorting systems and fully automated production line testing; RS-232/RS-485/LAN/USB communication interfaces and a USB flash drive interface are available for convenient data communication and remote control from a PC.

View series products

Inquire now Report incorrect product information

Parameter	AT2513	AT2513B	AT2513C
Technical Parameters
Channels	Single Channel
Measurement Parameters	DC Resistance
Basic Accuracy	0.02% ±3 digits	0.02% ±3 counts
Measurement Range	0.01μΩ ~ 300.000Ω	0.1μΩ to 3000.00Ω
Signal Source	Maximum Current	< 10A
Current Mode	Pulse current, Bidirectional current	Pulse current, forward/reverse current (in range 30mΩ, test current 1~10A adjustable)	Pulse current, forward/reverse current (1~10A adjustable at 30mΩ range)
Range	Six ranges, manual and automatic	6 ranges, manual and auto
Measurement Speed	Fast 10/sec, Slow 1/sec	Fast 10 times/sec, Slow 1 time/sec	Fast 10/s, Slow 1/s
Display Results	Direct reading / ΔABS / Δ% and sorting results	Direct / ΔABS / Δ% and sorting result
Maximum Reading	300000	300,000
Calibration	Open and short circuit correction	Open and short circuit calibration	Open and short circuit zeroing
Comparator	Upper limit / Lower limit / Comparator off
Trigger Mode	Internal trigger, Manual trigger, External trigger	Internal trigger, manual trigger, external trigger	Internal, manual, external
Temperature Compensation	Accuracy: 0.2°C / Range: 0~80°C	Accuracy: 0.2°C / Measurement range: 0~80°C
Test Terminals	Four-terminal testing	4-terminal test	4-terminal
Contact Check Function	Supported
General Parameters
Dimensions	Instrument Dimensions	264 x 107 x 350mm
Package Dimensions	-
Weight	Net Weight	2.5kg
Gross Weight	-
Power Requirements	Voltage: 90-250VAC, Frequency: 50/60Hz, Power: 15VA
Interface	RS232/RS485/LAN/USB Drive	RS232 / RS485 / LAN / USB drive interface	RS232/RS485/LAN/USB Drive
Others	5-inch touchscreen; Keyboard lock and data hold function	5" touchscreen; keyboard lock and data hold function	5-inch touchscreen; keyboard lock and data hold

Parameter

AT2513

AT2513B

AT2513C

Technical Parameters

Channels

Single Channel

Measurement Parameters

DC Resistance

Basic Accuracy

0.02% ±3 digits

0.02% ±3 counts

Measurement Range

0.01μΩ ~ 300.000Ω

0.1μΩ to 3000.00Ω

Signal Source

Maximum Current

< 10A

Current Mode

Pulse current, Bidirectional current

Pulse current, forward/reverse current (in range 30mΩ, test current 1~10A adjustable)

Pulse current, forward/reverse current (1~10A adjustable at 30mΩ range)

Range

Six ranges, manual and automatic

6 ranges, manual and auto

Measurement Speed

Fast 10/sec, Slow 1/sec

Fast 10 times/sec, Slow 1 time/sec

Fast 10/s, Slow 1/s

Display Results

Direct reading / ΔABS / Δ% and sorting results

Direct / ΔABS / Δ% and sorting result

Maximum Reading

300000

300,000

Calibration

Open and short circuit correction

Open and short circuit calibration

Open and short circuit zeroing

Comparator

Upper limit / Lower limit / Comparator off

Trigger Mode

Internal trigger, Manual trigger, External trigger

Internal trigger, manual trigger, external trigger

Internal, manual, external

Temperature Compensation

Accuracy: 0.2°C / Range: 0~80°C

Accuracy: 0.2°C / Measurement range: 0~80°C

Test Terminals

Four-terminal testing

4-terminal test

4-terminal

Contact Check Function

Supported

General Parameters

Dimensions

Instrument Dimensions

264 x 107 x 350mm

Package Dimensions

Weight

Net Weight

2.5kg

Gross Weight

Power Requirements

Voltage: 90-250VAC, Frequency: 50/60Hz, Power: 15VA

Interface

RS232/RS485/LAN/USB Drive

RS232 / RS485 / LAN / USB drive interface

RS232/RS485/LAN/USB Drive

Others

5-inch touchscreen; Keyboard lock and data hold function

5" touchscreen; keyboard lock and data hold function

5-inch touchscreen; keyboard lock and data hold

Parameter	AT2513	AT2513B	AT2513C
Technical Parameters
Channels	Single Channel
Measurement Parameters	DC Resistance
Basic Accuracy	0.02% ±3 digits	0.02% ±3 counts
Measurement Range	0.01μΩ ~ 300.000Ω	0.1μΩ to 3000.00Ω
Signal Source	Maximum Current	< 10A
Current Mode	Pulse current, Bidirectional current	Pulse current, forward/reverse current (in range 30mΩ, test current 1~10A adjustable)	Pulse current, forward/reverse current (1~10A adjustable at 30mΩ range)
Range	Six ranges, manual and automatic	6 ranges, manual and auto
Measurement Speed	Fast 10/sec, Slow 1/sec	Fast 10 times/sec, Slow 1 time/sec	Fast 10/s, Slow 1/s
Display Results	Direct reading / ΔABS / Δ% and sorting results	Direct / ΔABS / Δ% and sorting result
Maximum Reading	300000	300,000
Calibration	Open and short circuit correction	Open and short circuit calibration	Open and short circuit zeroing
Comparator	Upper limit / Lower limit / Comparator off
Trigger Mode	Internal trigger, Manual trigger, External trigger	Internal trigger, manual trigger, external trigger	Internal, manual, external
Temperature Compensation	Accuracy: 0.2°C / Range: 0~80°C	Accuracy: 0.2°C / Measurement range: 0~80°C
Test Terminals	Four-terminal testing	4-terminal test	4-terminal
Contact Check Function	Supported
General Parameters
Dimensions	Instrument Dimensions	264 x 107 x 350mm
Package Dimensions	-
Weight	Net Weight	2.5kg
Gross Weight	-
Power Requirements	Voltage: 90-250VAC, Frequency: 50/60Hz, Power: 15VA
Interface	RS232/RS485/LAN/USB Drive	RS232 / RS485 / LAN / USB drive interface	RS232/RS485/LAN/USB Drive
Others	5-inch touchscreen; Keyboard lock and data hold function	5" touchscreen; keyboard lock and data hold function	5-inch touchscreen; keyboard lock and data hold

Parameter

AT2513

AT2513B

AT2513C

Technical Parameters

Channels

Single Channel

Measurement Parameters

DC Resistance

Basic Accuracy

0.02% ±3 digits

0.02% ±3 counts

Measurement Range

0.01μΩ ~ 300.000Ω

0.1μΩ to 3000.00Ω

Signal Source

Maximum Current

< 10A

Current Mode

Pulse current, Bidirectional current

Pulse current, forward/reverse current (in range 30mΩ, test current 1~10A adjustable)

Pulse current, forward/reverse current (1~10A adjustable at 30mΩ range)

Range

Six ranges, manual and automatic

6 ranges, manual and auto

Measurement Speed

Fast 10/sec, Slow 1/sec

Fast 10 times/sec, Slow 1 time/sec

Fast 10/s, Slow 1/s

Display Results

Direct reading / ΔABS / Δ% and sorting results

Direct / ΔABS / Δ% and sorting result

Maximum Reading

300000

300,000

Calibration

Open and short circuit correction

Open and short circuit calibration

Open and short circuit zeroing

Comparator

Upper limit / Lower limit / Comparator off

Trigger Mode

Internal trigger, Manual trigger, External trigger

Internal trigger, manual trigger, external trigger

Internal, manual, external

Temperature Compensation

Accuracy: 0.2°C / Range: 0~80°C

Accuracy: 0.2°C / Measurement range: 0~80°C

Test Terminals

Four-terminal testing

4-terminal test

4-terminal

Contact Check Function

Supported

General Parameters

Dimensions

Instrument Dimensions

264 x 107 x 350mm

Package Dimensions

Weight

Net Weight

2.5kg

Gross Weight

Power Requirements

Voltage: 90-250VAC, Frequency: 50/60Hz, Power: 15VA

Interface

RS232/RS485/LAN/USB Drive

RS232 / RS485 / LAN / USB drive interface

RS232/RS485/LAN/USB Drive

Others

5-inch touchscreen; Keyboard lock and data hold function

5" touchscreen; keyboard lock and data hold function

5-inch touchscreen; keyboard lock and data hold
